1079740000 - 250 Size Copper Alloy Connector, Crimp, Black Finish

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

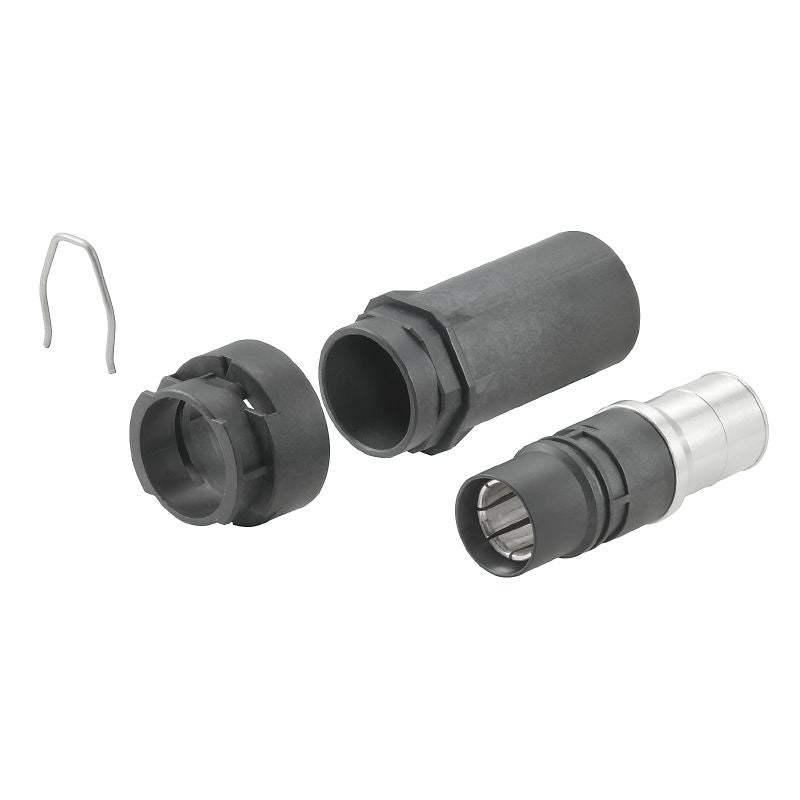

Introducing the HDC insert, a specialized female connector featuring a secure crimp connection, tailored for an installation size of 250 Crafted from a durable copper alloy, this component showcases a sleek black finish It adheres to RoHS standards and complies with a variety of environmental regulations Weighing in at 9328 grams and boasting a diameter of 32 mm, this connector is built to endure extreme conditions, with temperature thresholds ranging from -50 °C to 120 °C.

Additionally, it supports a maximum operating voltage of 2,300 V at a total temperature of 60°C, making it a reliable choice for your electrical needs.

Features and Benefits:

•Composed of copper alloy fundamental material.

•Insulating material made of polyamide with fiber optic.

•Crimp connection type for a reliable attachment.

•Rated current capacity of 200 A according to DIN EN 61984.

•Silver passivated surface finish for improved conductivity.

•Low volume resistance of ≤0.1 mΩ.

Specifications:
