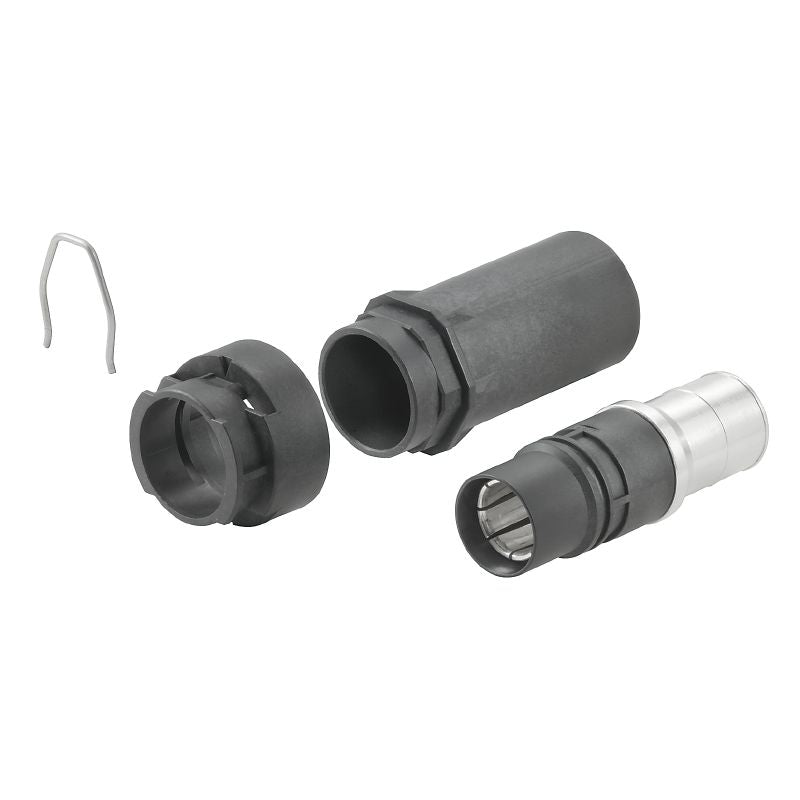

1079720000 - 250A Crimp Connector, 32mm Diameter, Copper Alloy

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

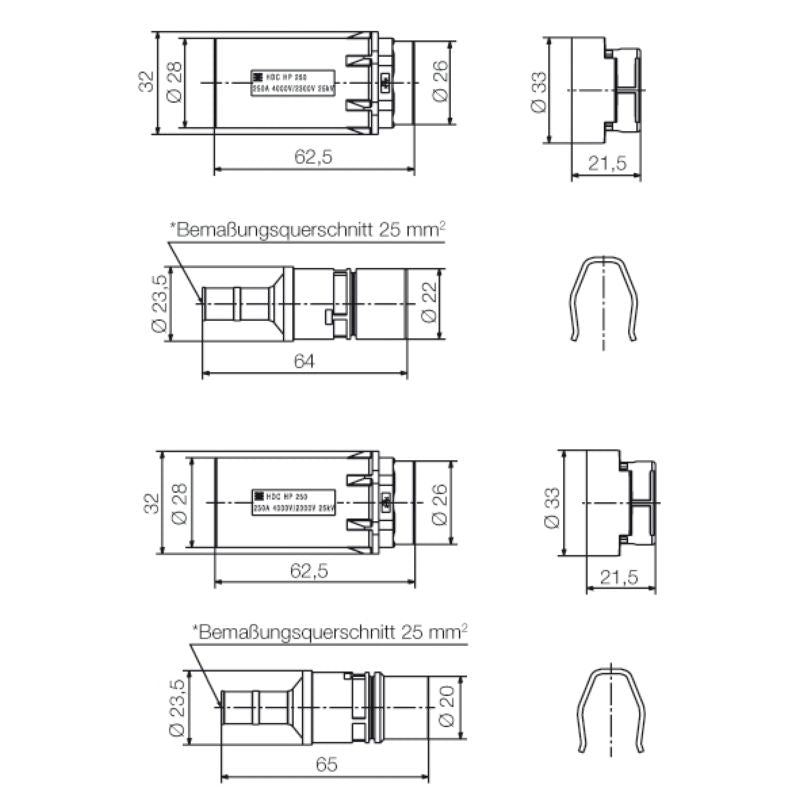

Introducing the HDC HP 250 F 25 connector, engineered for a reliable crimp connection suited for installation size 250 This robust connector can function effectively in extreme temperatures ranging from -50 °C to 120 °C and is crafted from high-quality copper alloy material With a compact diameter of 32 mm and an overall length of 832 mm, it weighs just 81368 g, making it lightweight yet durable Complying with RoHS regulations under exemption 6c, this connector supports a rated current of 140 A and accommodates a maximum operating voltage of 2300 V.

It is designed for a minimum of 500 plugging cycles and boasts a low volume resistance of 01 mΩ or less Additionally, it meets the UL 94 flammability standard with a V-0 rating and features a silver passivated surface finish, ensuring both safety and reliability in its performance.

Features and Benefits:

•Compliant with RoHS with exemption 6c.

•Rated for 500+ plugging cycles.

•Constructed from copper alloy material.

•Temperature range of -50 °C to 120 °C.

•Maximum operating voltage of 2300 V.

•Flammability rating V-0.

•Volume resistance ≤ 0.1 mΩ.

Specifications:
