1023350000 - 8-Pole Female Connector, 690V, 110A, UL-Certified, RoHS Compliant

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

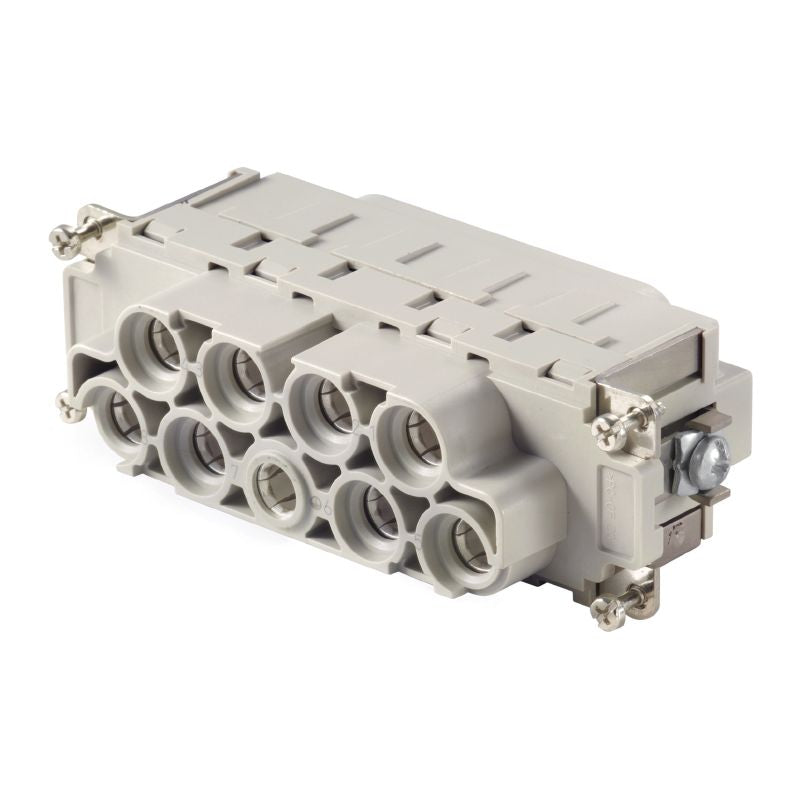

Introducing the HDC S8/0 FAS female connector, expertly engineered to handle up to 690 V and 110 A Featuring 8 poles and a reliable axial screw connection, this connector is made from robust copper alloy It includes a PC glass-fibre reinforced insulator, certified for railway applications and UL-listed for safety With RoHS compliance, it is suitable for a wide temperature range from -40 °C to 125 °C, making it ideal for diverse environments and applications.

Features and Benefits:

•Number of poles: 8.

•Installation size: 8.

•Low smoke according to DIN EN 45545-2: Yes.

•Rated current (DIN EN 61984): 110 A.

•Rated impulse voltage (DIN EN 61984): 8 kV.

•Rated voltage (DIN EN 61984): 690 V.

•Screw connection type for PE.

•Clamping range for power contact: max. 25 mm², min. 10 mm².

•Volume resistance: ≤1 mΩ.

•Plugging cycles: ≥ 500.
