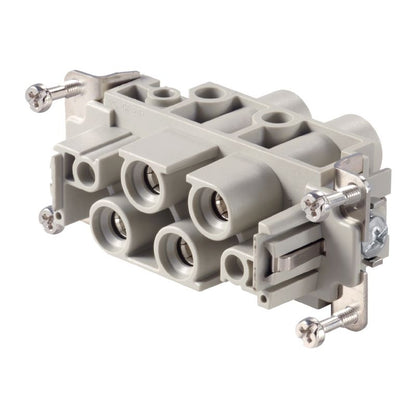

1023210000 - Durable 6-Pole Copper Connector, 80A, 84.5mm Deep

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

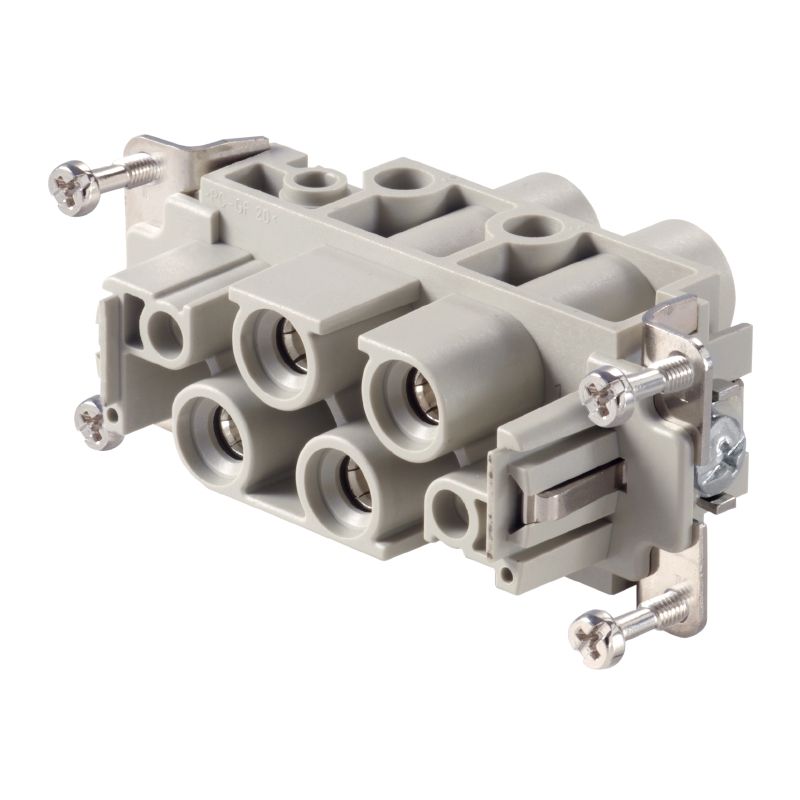

Introducing the HDC S4/0 FS female connector, engineered for dependable electrical connections With a rated voltage of 830 V and a current capacity of 80 A, this robust connector features four poles and a secure screw connection mechanism Its installation size is classified as 6, and it's crafted from a durable copper alloy for long-lasting performance The connector is equipped with PC glass-fiber reinforced insulating material, complying with RoHS regulations for environmental safety.

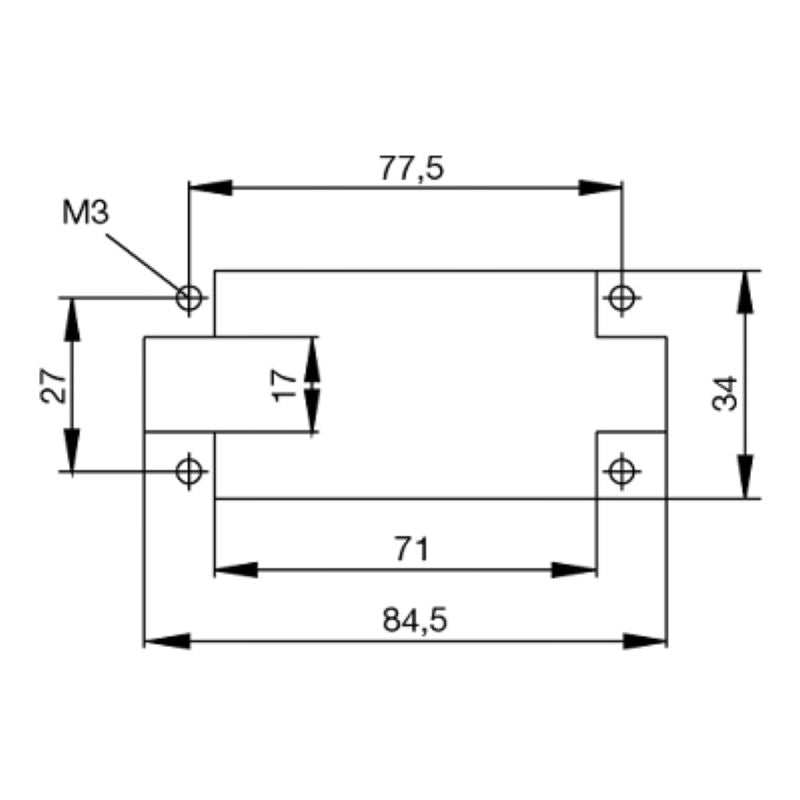

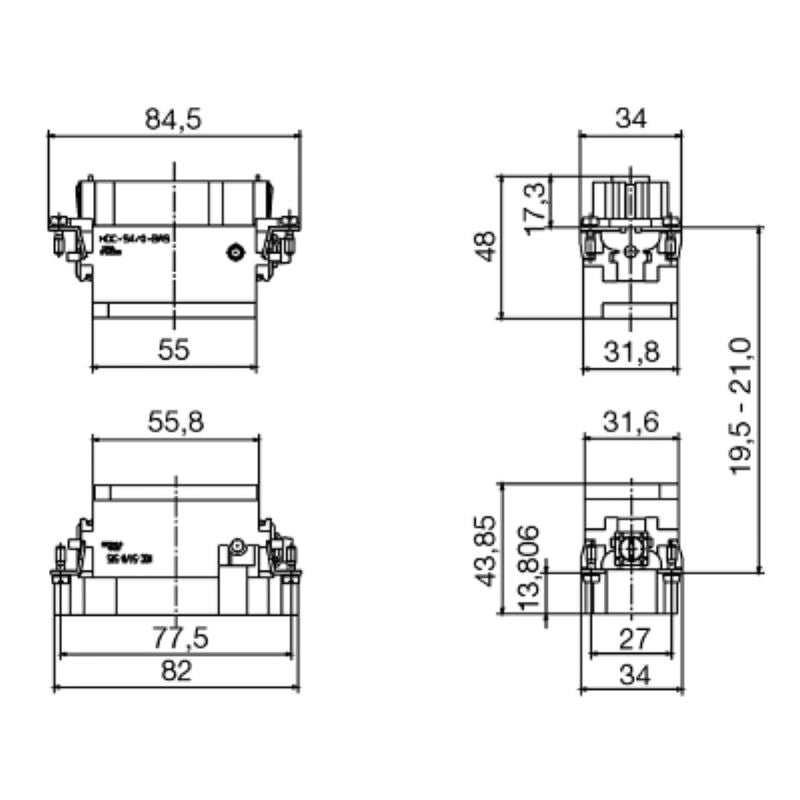

Additionally, it produces minimal smoke emissions as per DIN EN 45545-2 standards Measuring 845 mm in depth, 462 mm in height, and 34 mm in width, this connector weighs in at just 105g It operates effectively in temperature ranges from -40°C to 125°C, making it a reliable choice for various applications.

Features and Benefits:

•Constructed from copper alloy for enhanced durability.

•Low smoke emissions according to DIN EN 45545-2.

•Compliant with RoHS exemptions.

•Features chemical resistance against various substances such as acetone and petrol.

•Screw connection type provides a secure connection.

•Rated for up to 500 plugging cycles.

•Silver passivated surface finish for better conductivity.

Specifications:
