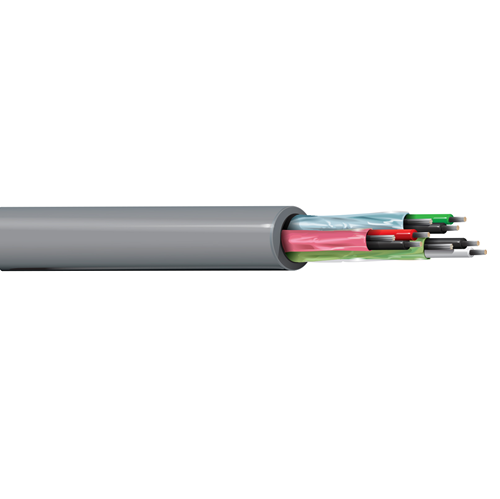

Belden 9990 24 AWG 3 Pair 7x32 Stranding Tinned Copper 300V Audio Control and Instrument Cable

Description:

Audio, Control and Instrument Cable, 24 AWG stranded (7x32) tinned copper conductors, polyethylene insulation, 3 twisted pairs, individually shielded with Beldfoil (100% coverage), 24 AWG stranded tinned copper drain wire, PVC jacket.

Insulation:

• Material: PE - Polyethylene
• Nom. Thickness: 0.011 in (0.28 mm)
• Nom. Insulation Diameter: 0.046 in (1.2 mm)

Inner Shield:

• Shield Type: Tape
• Material: Bi-Laminate (Alum+Poly)
• Coverage: 100%
• Drainwire Type: 24 AWG (7x32) TC
• Individual Beldfoil (Aluminum+Polyester bi-laminate tape) shield with 100% coverage on each pair, plus a tinned copper drain wire.

Outer Jacket:

• Material: PVC - Polyvinyl Chloride
• Nom. Thickness: 0.035 in (0.89 mm)
• Nom. Diameter: 0.255 in (6.48 mm)

Standards:

• Impedance: 60 Ohm
• Voltage Rating: 300 V.
• Operating Temperature: -20°C to 80°C.

Applications:

• low voltage analog signals (4-20ma, 0-10v, ...); low voltage digital control (24v, …); line level audio; computer communication; panel wiring
