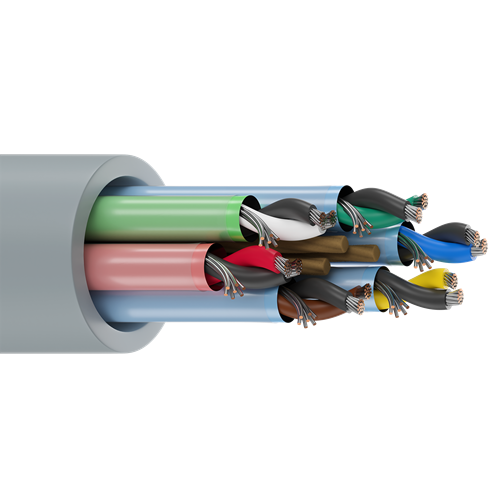

Belden 9774 18 AWG 6 Pair 19x30 Stranding Tinned Copper 300V Audio Control and Instrument Cable

Description:

Audio, Control and Instrument Cable, 18 AWG stranded (19x30) tinned copper conductors, polypropylene insulation, 6 twisted pairs, individually shielded with Beldfoil (100% coverage), 20 AWG stranded tinned copper drain wire, PVC jacket.

Insulation:

• Material: PP - Polypropylene
• Nom. Thickness: 0.019 in (0.48 mm)
• Nom. Insulation Diameter: 0.082 in (2.1 mm)

Inner Shield:

• Shield Type: Tape
• Material: Bi-Laminate (Alum+Poly)
• Coverage: 100%
• Drainwire Type: 20 AWG (7x28) TC
• Individual aluminum/polyester foil shield (100% coverage) for each pair, with a 20 AWG stranded tinned copper drain wire.

Outer Jacket:

• Material: PVC - Polyvinyl Chloride
• Nom. Thickness: 0.052 in (1.3 mm)
• Nom. Diameter: 0.560 in (14.2 mm)
• Overall Cable Diameter (Nominal): 0.560 in (14.2 mm)

Standards:

• Impedance: 50 Ohms
• Operating Temperature: -20°C to +80°C.
• Voltage Rating: 300 V (CM), 30 V (AWM 2929).

Applications:

• low voltage analog signals (4-20ma, 0-10v, ...); low voltage digital control (24v, …); line level audio; computer communication; panel wiring
