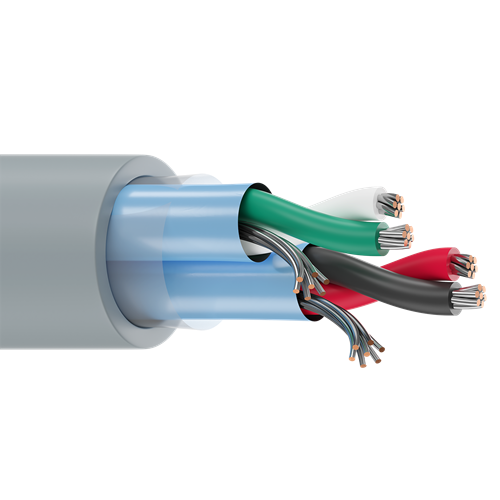

Belden 9402 20 AWG 2 Pair 7x28 Stranding Tinned Copper 300V Audio Control and Instrument Cable

Description:

Audio, Control and Instrument Cable, 2 Pair, 20 AWG stranded (7x28) tinned copper conductors, semi-rigid PVC insulation, individually shielded pairs with Beldfoil (100% coverage), 22 AWG stranded tinned copper drain wire, overall PVC jacket.

Insulation:

• Material: SR-PVC - Polyvinyl Chloride (Semi-Rigid)
• Nom. Thickness: 0.011 in (0.28 mm)
• Nom. Insulation Diameter: 0.058 in (1.5 mm)

Inner Shield:

• Shield Type: Tape
• Material: Bi-Laminate (Alum+Poly)
• Coverage: 100%
• Drainwire Type: 22 AWG (19x34) TC
• Individual foil shield (Beldfoil 100% coverage, Aluminum foil-Polyester tape) on each pair.

Outer Jacket:

• Material: PVC - Polyvinyl Chloride
• Nom. Thickness: 0.041 in (1.0 mm)
• Nom. Diameter: 0.300 in (7.62 mm)
• Overall Cable Diameter (Nominal): 0.300 in (7.62 mm)
• Polyester Tape

Standards:

• Operating Temperature: -20°C to +80°C.
• Voltage Rating: 300 V (CMG), 300 V (UL AWM 2464).

Applications:

• low voltage analog signals (4-20ma, 0-10v, ...); low voltage digital control (24v, …); line level audio; computer communication; panel wiring
