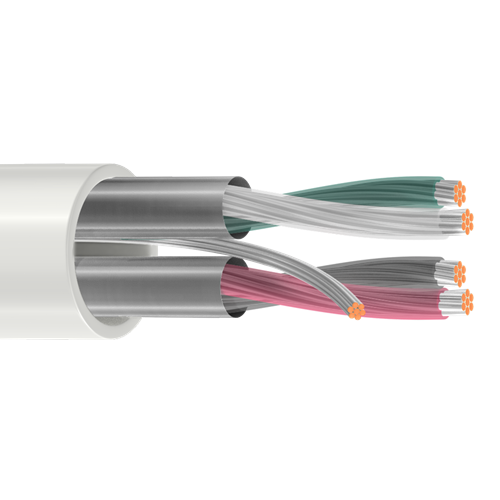

Belden 87723 22 AWG 2 Pair 7x30 Stranding Tinned Copper 300V Multi-Conductor Cable

Description:

22 AWG stranded (7x30) TC conductors, plenum, FEP insulation, twisted pairs, individually shielded Beldfoil (100% coverage), 24 AWG stranded TC drain wire, fluorocopolymer jacket.

Insulation:

• Material: FEP - Fluorinated Ethylene Propylene
• Wall Thickness (mm): 0.178

Inner Shield:

• Shield Type: Tape
• Material: Aluminum Foil-Polyester Tape
• Coverage: 100%
• Inner Shield Trade Name: Beldfoil (Z-Fold)
• Drainwire Type: 24 AWG (7x32) TC - Tinned Copper

Outer Jacket:

• Material: PVDF - Fluorocopolymer
• Nom. Wall Thickness (mm): 0.356
• Overall Cable Diameter (Nominal): 3.759 mm

Standards:

• Voltage Rating: 300 V RMS
• Operating Temperature: -20°C To +150°C

Specifications:

• Size (AWG): 22
• No. of Pair: 2
• Stranding: 7x30
• Conductor Material: TC - Tinned Copper
• Part Number: 87723
