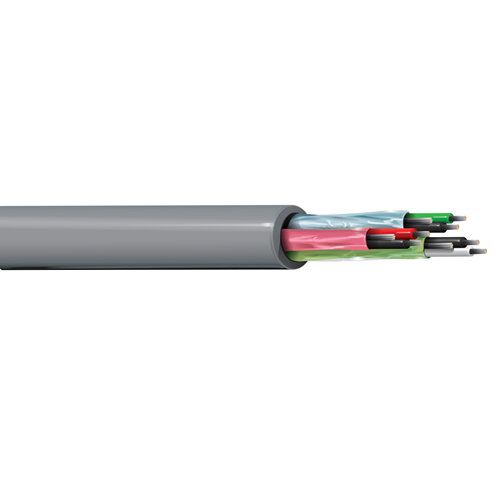

Belden 9883 20 AWG 3 Pair 10x30 Stranding Tinned Copper 350V Audio Control and Instrument Cable

Description:

Audio, Control and Instrument Cable, 20 AWG stranded (10x30) tinned copper conductors, polypropylene insulation, 3 twisted pairs, individually shielded with Beldfoil (100% coverage), 22 AWG stranded tinned copper drain wire, high-density polyethylene jacket.

Insulation:

• Material: PP - Polypropylene
• Nom. Thickness: 0.013 in (0.33 mm)
• Nom. Insulation Diameter: 0.063 in (1.6 mm)

Inner Shield:

• Shield Type: Tape
• Material: Bi-Laminate (Alum+Poly)
• Coverage: 100%
• Drainwire Type: 22 AWG (19x34) TC
• Each pair is individually shielded with Beldfoil (100% coverage aluminum/polyester tape).

Outer Jacket:

• Material: PVC - Polyvinyl Chloride
• Nom. Thickness: 0.040 in (1.0 mm)
• Nom. Diameter: 0.340 in (8.64 mm)
• Overall Cable Diameter (Nominal): 0.340 in (8.64 mm)
• Outer Jacket1 Table Notes: HDPE

Standards:

• Impedance: 50 Ohms
• Voltage Rating: 350 V.
• Operating Temperature: -40°C to +80°C.

Applications:

• low voltage analog signals (4-20ma, 0-10v, ...); low voltage digital control (24v, …); line level audio; computer communication; panel wiring
