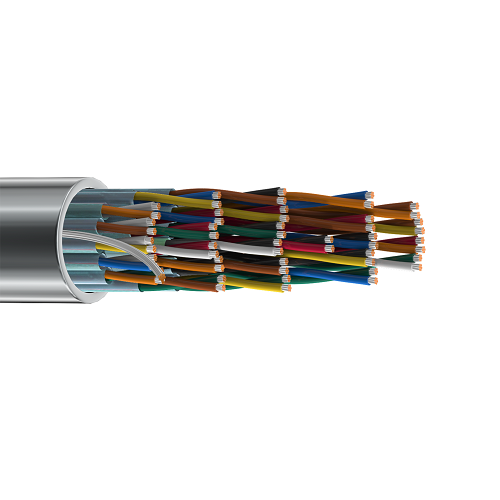

Belden 8773 22 AWG 27 Pair 7x30 Stranding Tinned Copper 300V Audio Control and Instrument Cable

Description:-

Audio, Control and Instrument Cable, 27-Pair, 22 AWG stranded (7x30) tinned copper conductor, polypropylene insulation, individually shielded pairs with Beldfoil (100% coverage), overall PVC jacket and 22 AWG stranded tinned copper drain wire.

Insulation:-

• Material: PP - Polypropylene
• Nom. Thickness: 0.011 in (0.28 mm)
• Nom. Insulation Diameter: 0.050 in (1.3 mm)

Outer Shield:-

• Shield Type: Tape
• Material: Bi-Laminate (Alum+Poly)
• Coverage: 100%
• Drainwire Type: 22 AWG (7x30) TC  - Tinned Copper

Outer Jacket:-

• Material: PVC - Polyvinyl Chloride
• Nom. Thickness: 0.064 in (1.6 mm)
• Nom. Diameter: 0.709 in (18.0 mm)
• Overall Cable Diameter (Nominal): 0.709 in (18.0 mm)

Standards:-

• Nom. Characteristic Impedance: 50 Ohm
• Operating Temperature Range: -20°C to +80°C
• UL Voltage Rating: 300 V (CM), 30 V (UL AWM 2919)

Applications:-

• low voltage analog signals (4-20ma, 0-10v, ...); low voltage digital control (24v, …); line level audio; computer communication; panel wiring

Specifications:-

• Size (AWG): 22
• No. of Pairs: 27
• Stranding: 7x30
• Conductor Material: TC - Tinned Copper
• Part Number: 8773
