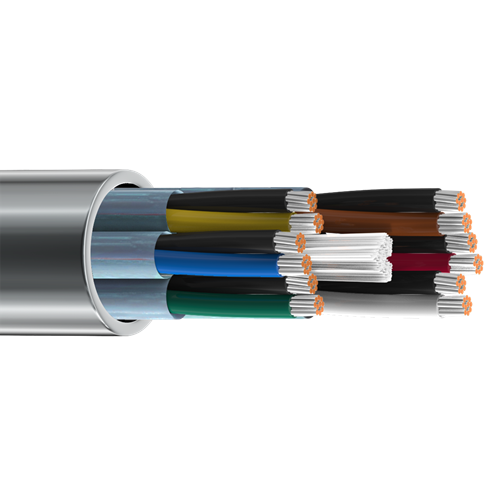

Belden 9886 20 AWG 6 Pair 10x30 Stranding Tinned Copper 350V Audio Control and Instrumentation Cable

Description:

Audio, Control and Instrument Cable, 20 AWG stranded (10x30) tinned copper conductors, polypropylene insulation, 6 twisted pairs, individually shielded with Beldfoil (100% coverage), 22 AWG stranded tinned copper drain wire, high-density polyethylene jacket.

Insulation:

• Material: PP - Polypropylene
• Nom. Thickness: 0.013 in (0.33 mm)
• Nom. Insulation Diameter: 0.063 in (1.6 mm)

Inner Shield:

• Shield Type: Tape
• Material: Bi-Laminate (Alum+Poly)
• Coverage: 100%
• Drainwire Type: 22 AWG (19x34) TC - Tinned Copper

Outer Jacket:

• Material: PE - Polyethylene
• Nom. Thickness: 0.045 in (1.1 mm)
• Nom. Diameter: 0.455 in (11.6 mm)
• Outer Jacket1 Table Notes: HDPE
• Overall Cable Diameter (Nominal): 0.455 in (11.6 mm)

Standards:

• Voltage Rating: 350 V
• Operating Temperature: -40°C to +80°C
• Nom. Characteristic Impedance: 50 Ohm

Applications:

• Low Voltage Analog Signals (4-20ma, 0-10v, ...); Low Voltage Digital Control (24v, …); Line Level Audio; Computer Communication; Panel Wiring

Specifications:

• Size (AWG): 20
• No. of Pair: 6
• Stranding: 10x30
• Conductor Material: TC - Tinned Copper
• Part Number: 9886
