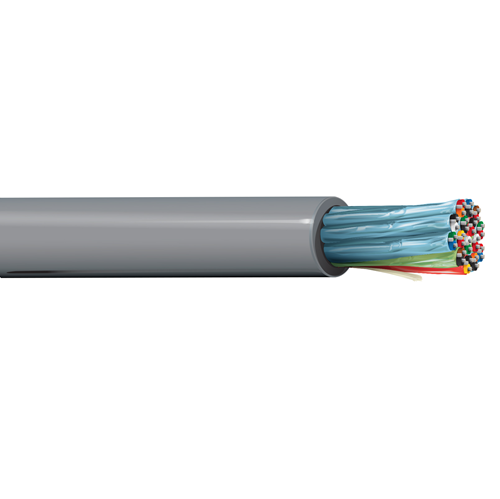

Belden 9769 22 AWG 17 Pair 7x30 Stranding Tinned Copper 300V Audio Control and Instrument Cable

Description:

Audio, Control and Instrument Cable, 17-Pair, 22 AWG stranded (7x30) tinned copper conductor, polypropylene insulation, individually shielded pairs with Beldfoil (100% coverage), overall PVC jacket and 22 AWG stranded tinned copper drain wire.

Insulation:

• Material: PP - Polypropylene
• Nom. Thickness: 0.0105 in (0.267 mm)
• Nom. Insulation Diameter: 0.050 in (1.3 mm)

Inner Shield:

• Shield Type: Tape
• Material: Bi-Laminate (Alum+Poly)
• Coverage: 100%
• Drainwire Type: 22 AWG (7x30) TC
• Individual Beldfoil (aluminum/polyester) shield on each pair with 100% coverage.

Outer Jacket:

• Material: PVC - Polyvinyl Chloride
• Nom. Thickness: 0.052 in (1.3 mm)
• Nom. Diameter: 0.577 in (14.7 mm)
• Overall Cable Diameter (Nominal): 0.577 in (14.7 mm)

Standards:

• Impedance: 50 Ohms
• Operating Temperature: -20°C to +80°C.
• Voltage Rating: 300 V (CM), 30 V (AWM 2919).

Applications:

• low voltage analog signals (4-20ma, 0-10v, ...); low voltage digital control (24v, …); line level audio; computer communication; panel wiring
