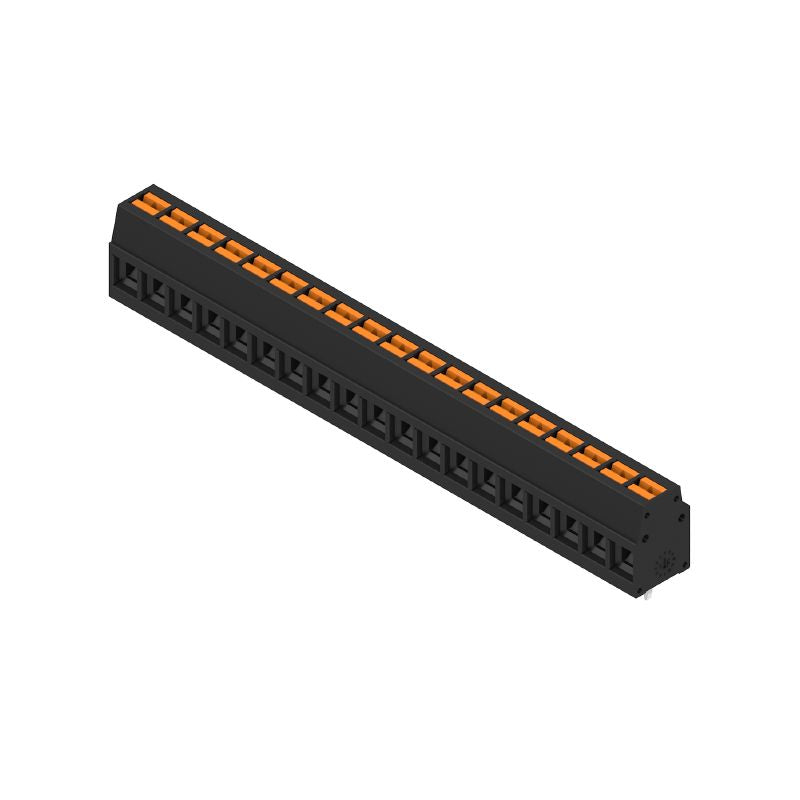

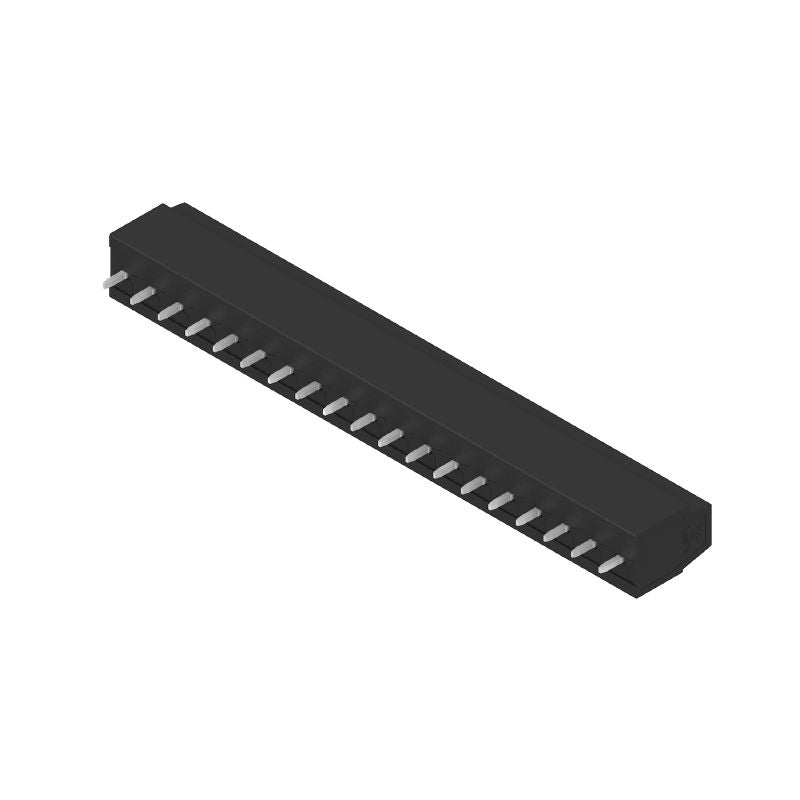

2787510000 - Black 19-Pole PCB Terminal, 5mm Pitch, Push In Connection (Pack of 36)

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Introducing our versatile printed circuit board terminal, meticulously designed with a 500 mm pitch and featuring 19 poles set at a 90° angle The solder pin extends 35 mm in length and is elegantly coated with tin plating for enhanced conductivity Available in a classic black color, this terminal employs a user-friendly PUSH IN connection method with an actuator, making it easy to use It can handle wire sizes up to a maximum clamping range of 2.

5 mm² Each unit is carefully packaged in a box and complies with RoHS regulations, ensuring there are no hazardous substances exceeding 01 wt%.

Features and Benefits:

•PUSH IN connection method with actuator.

•THT solder connection for PCB mounting.

•Touch-safe protection compliant with DIN standards.

•RoHS compliant without exemptions.

•Suitable for both solid and flexible conductors.

Specifications:
