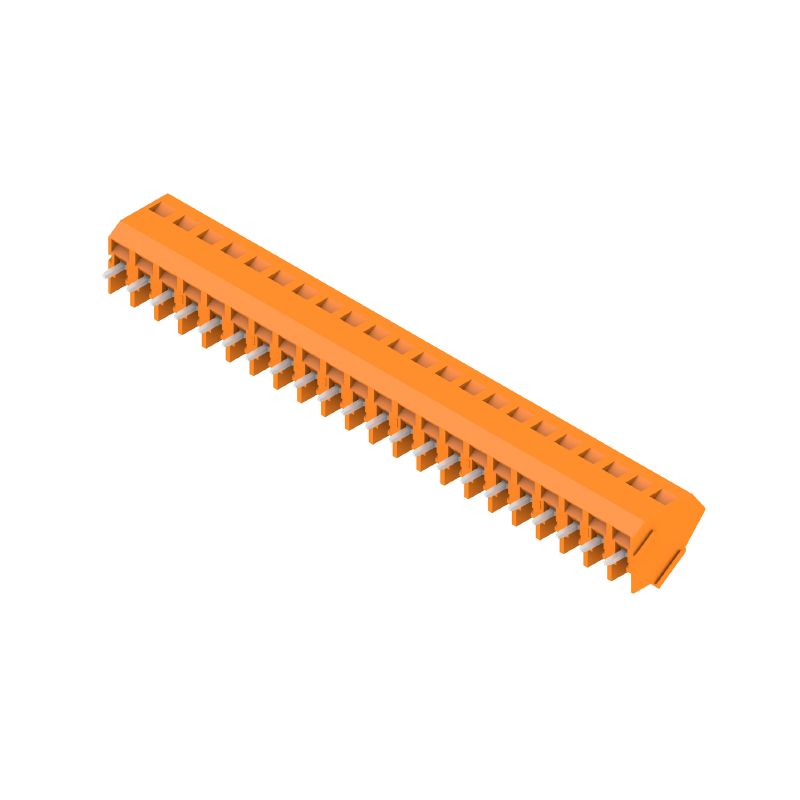

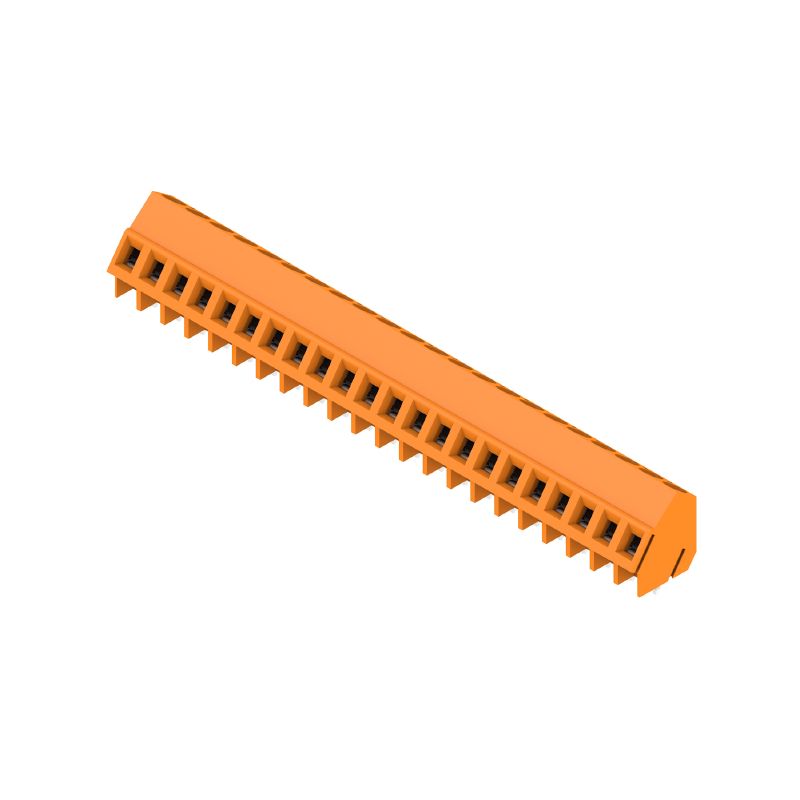

9994730000 - 5.08mm PCB Terminal, 22 Poles, 135° Angle, Orange (Pack of 50)

9994730000 - 5.08mm PCB Terminal, 22 Poles, 135° Angle, Orange (Pack of 50)

SKU: SKU: 9994730000   Download PDF

Select a Variant:
  • 9994730000 - 5.08mm PCB Terminal, 22 Poles, 135° Angle, Orange (Pack of 50)
Qty:
Regular price Now $294.48   Web pricing policy
Regular price BEFORE   $0.00 Sale price Now $294.48 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information

Description:

Introducing a versatile printed circuit board terminal, tailored for performance with a 508 mm pitch and 22 poles arranged at a 135° angle This terminal features tinned solder pins that measure 35 mm in length and are highlighted in a vibrant orange hue It is designed with a clamping yoke connection, capable of accommodating a maximum clamping range of 25 mm² Each box contains 50 terminals, making it an excellent choice for your electronic projects.

Features and Benefits:

    •Tinned solder pins.

    •Clamping yoke connection.

    •Compliant with RoHS.

    •Touch-safe design according to DIN standards.

    •Durable construction with materials that meet UL and CSA standards.

Specifications:

 Rated Voltage 630 V / 300 V

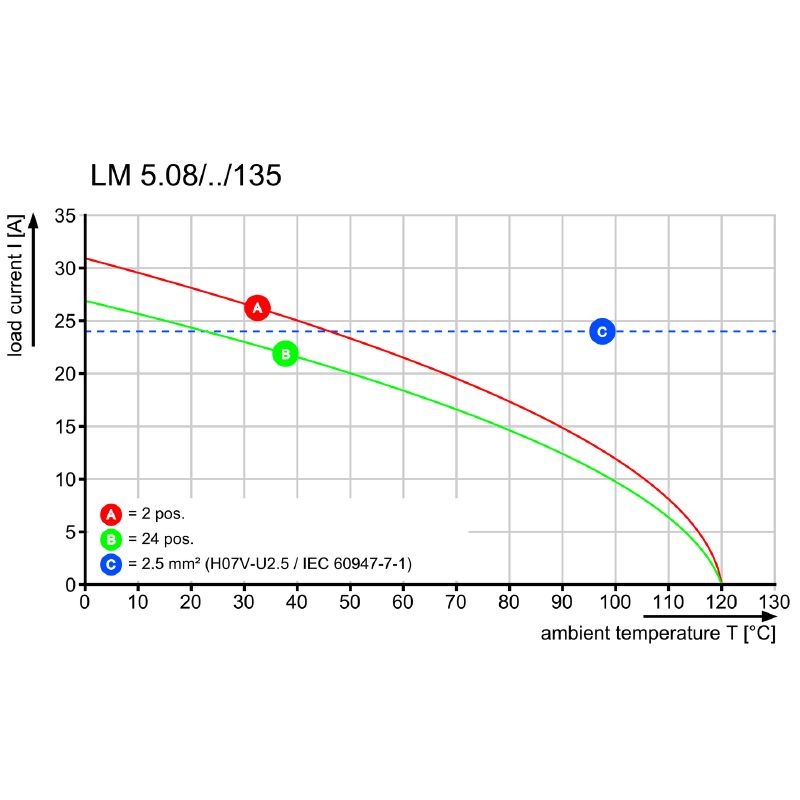

 Rated Current 17.5 A / 15 A
 Number of Poles 22

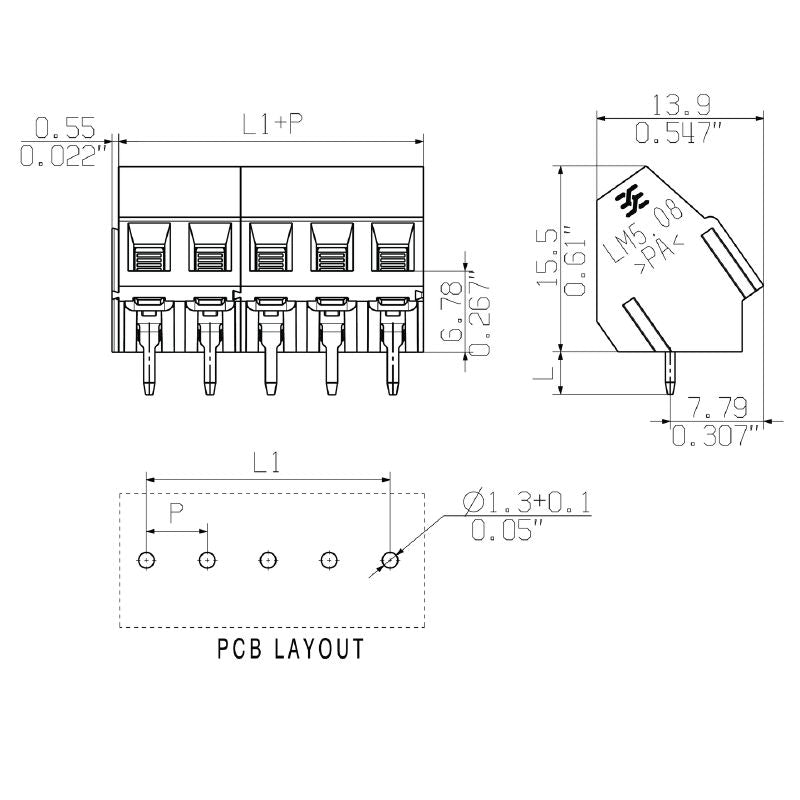

 Depth 13.9 mm
 Height 19 mm
 Width 112.31 mm
 Pitch 5.08 mm
 Solder Pin Length 3.5 mm
 Material Wemid (PA)
 Temperature Range (Operating) -50 °C to 120 °C
 Storage Temperature -40 °C to 70 °C
 Volume Resistance 1.20 mΩ
 Clamping Range (min) 0.2 mm²
 Clamping Range (max) 2.5 mm²
