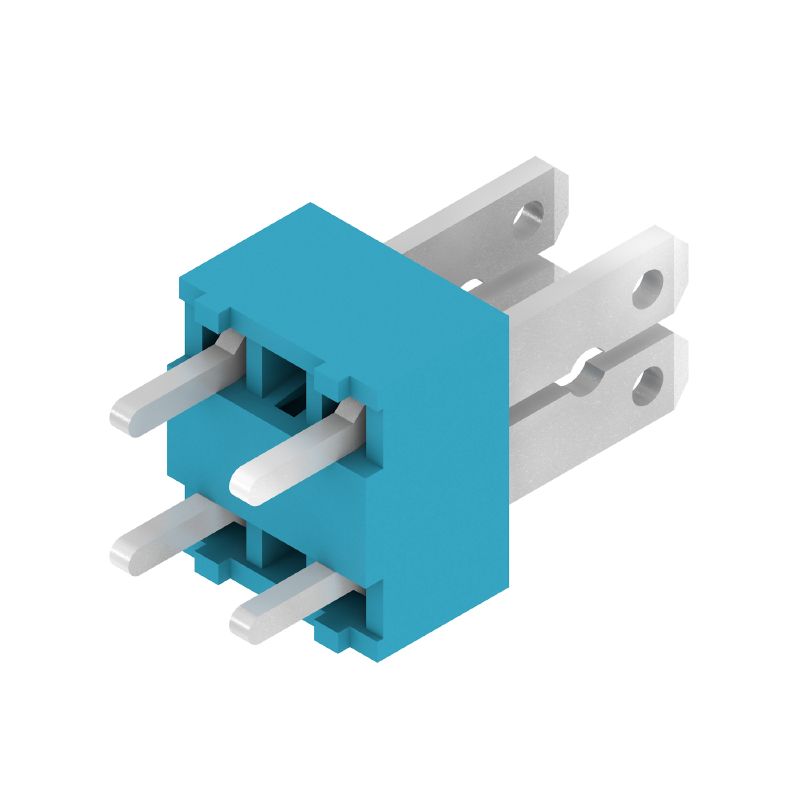

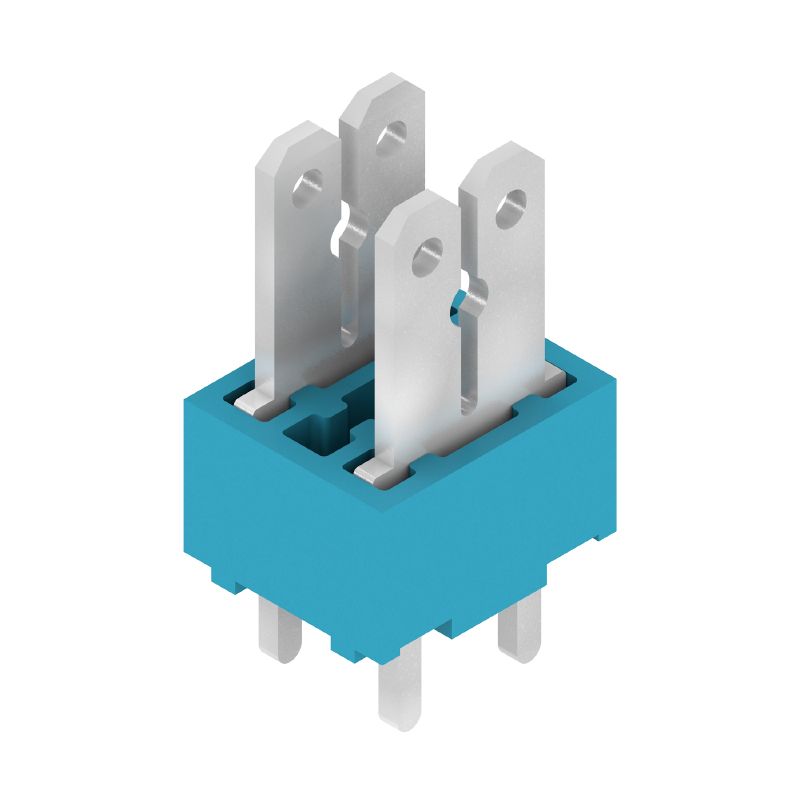

6385370000 - 5mm Pitch Blue PCB Terminal with 180° Orientation (Pack of 100)

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Introducing an efficient solution for your electronic connections, this printed circuit board terminal boasts a sturdy 500 mm pitch and accommodates 2 poles It features a connector orientation of 180° and is equipped with solder pins that are 35 mm in length Finished with a reliable tin coating, this component also showcases a striking blue color The connection method utilizes a flat-blade design, making it a great addition to your electronic projects.

Each unit comes securely packaged in a box for protection.

Features and Benefits:

•Consists of 2 poles.

•Solder pin length is 3.5 mm.

•Tight weight of 1.77 g.

•Environmental compliance with RoHS and REACH SVHC.

•Insulating material made from PA.

•Offers flat-blade connection method.

•Compatible with THT solder connection.

•Low volume resistance of 1.20 mΩ.

•Suitable for operating temperatures ranging from -50 °C to 100 °C.

Specifications:
