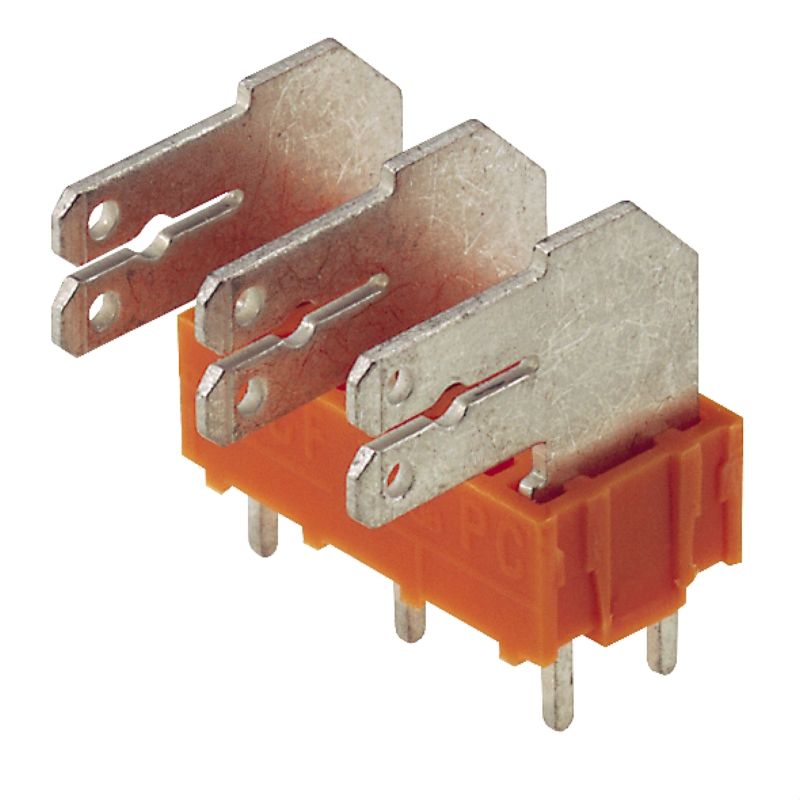

9511680000 - 7.50mm Pitch 12-Pole Orange Terminal Block, IEC rated (Pack of 50)

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Discover the convenience of this terminal block, boasting a 750 mm pitch and featuring 12 poles set at a 90° orientation It incorporates solder pins with a length of 35 mm, enhanced by a tinning process to promote superior conductivity Finished in a vibrant orange color, it utilizes a flat-blade connection for reliable performance The product is classified under ordering number 9511680000 and adheres to RoHS regulations.

It is packaged securely in a box and carries an IEC rating of 1000 V / 24 A as well as a UL rating of 300 V / 15 A, ensuring its versatility and dependability in various applications.

Features and Benefits:

•Constructed for flat-blade connection.

•THT solder connection for mounting.

•Single row with a direction of conductor outlet at 90°.

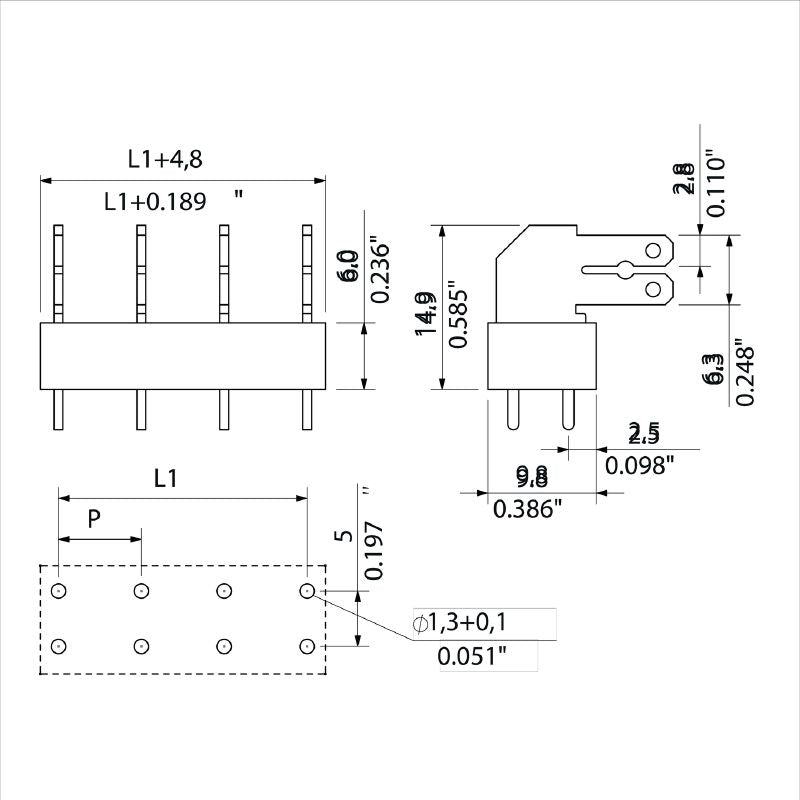

•Solder eyelet hole diameter is 1.3 mm with a tolerance of +0.1 mm.

•Touch-safe according to DIN VDE 0470.

•Complies with IP20 protection degree.

•Environmental compliance with no SVHC above 0.1 wt%.

Specifications:
