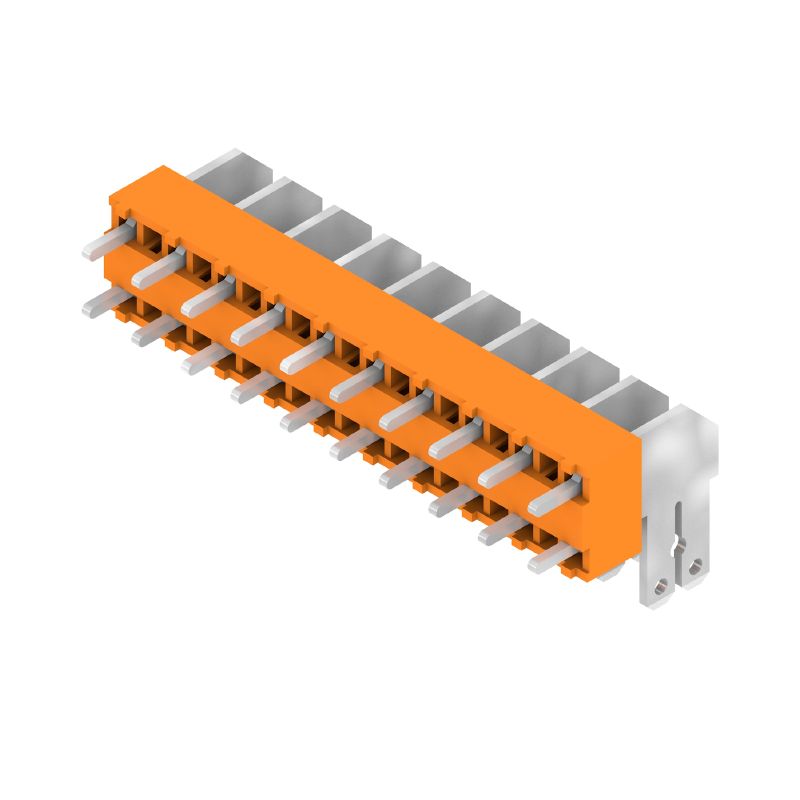

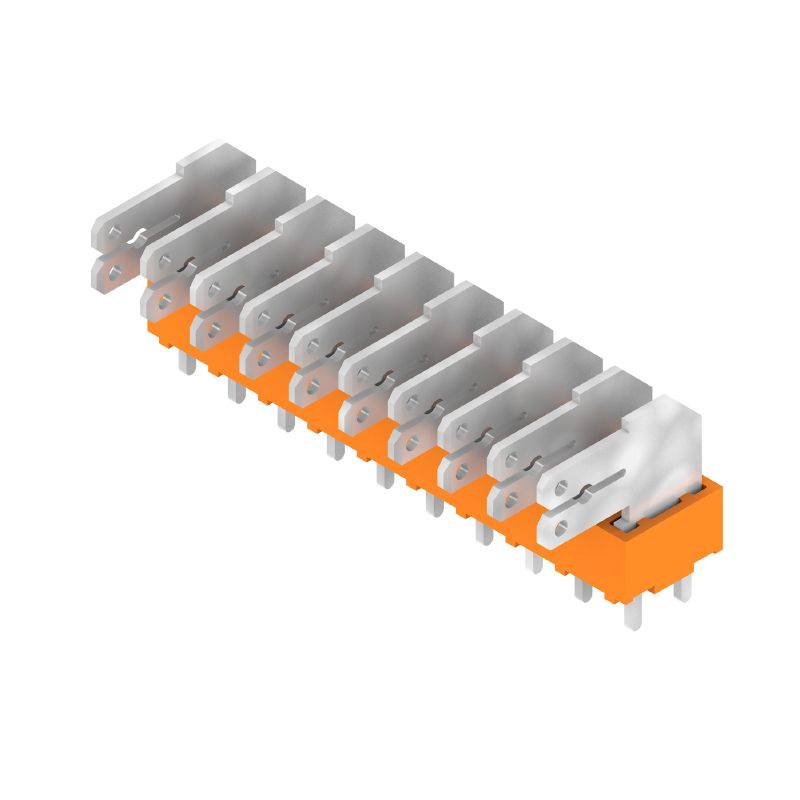

9511490000 - 5.00mm PCB Terminal for 10 Poles, 90° Angle, Orange (Pack of 50)

9511490000 - 5.00mm PCB Terminal for 10 Poles, 90° Angle, Orange (Pack of 50)

SKU: SKU: 9511490000   Download PDF

Select a Variant:
  • 9511490000 - 5.00mm PCB Terminal for 10 Poles, 90° Angle, Orange (Pack of 50)
Qty:
Regular price Now $175.14   Web pricing policy
Regular price BEFORE   $0.00 Sale price Now $175.14 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information

Description:

Discover this set of printed circuit board terminals featuring a compact 500 mm pitch Each terminal can support up to 10 poles with a convenient 90° orientation The solder pins, measuring 35 mm in length, sport a vibrant orange tinned finish for enhanced conductivity These terminals employ a flat-blade connection method and are conveniently packaged in a sturdy box for easy storage and transport.

Features and Benefits:

    •Flat-blade connection type.

    •Solder pin length of 3.5 mm.

    •Orange color.

    •Suitable for a variety of electrical applications.

    •Compact design with 90° outlet direction.

Specifications:

 IEC Voltage Rating 630 V / 24 A
 UL Voltage Rating 150 V / 15 A

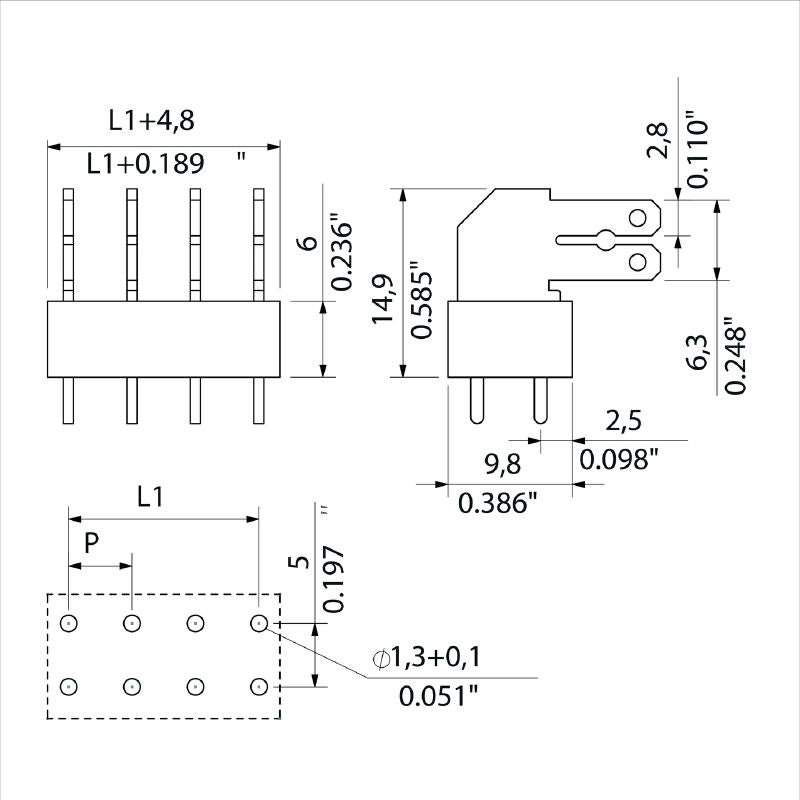

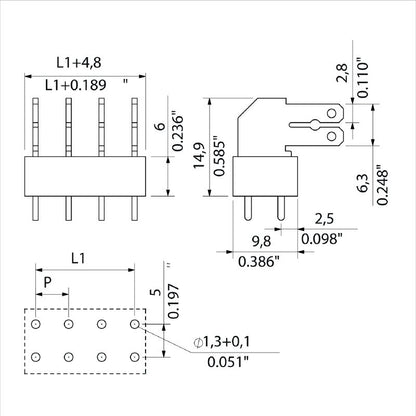

 Depth 9.8 mm
 Height 18.4 mm
 Width 49.8 mm
 Pitch 5 mm
 Number of Poles 10
 Solder Pin Dimensions 0.8 x 1.0 mm, 0.75 x 0.9 mm
 Solder Eyelet Hole Diameter 1.3 mm
 Touch-safe Protection IP 00
 Protection Degree IP20
 Volume Resistance 1.20 mΩ
 Insulating Material PA
 Comparative Tracking Index (CTI) ≥ 600
 UL 94 Flammability Rating V-2
 Contact Material Cu-alloy
 Contact Surface tinned
 Storage Temperature (Min) -40 °C
 Storage Temperature (Max) 70 °C
 Operating Temperature (Min) -50 °C
 Operating Temperature (Max) 100 °C
 Temperature Range (Installation Min) -25 °C
 Temperature Range (Installation Max) 100 °C
