2787650000 - 90° PCB Terminal, 630V, 24A, Tinned Copper with Orange Insulation (Pack of 50)

2787650000 - 90° PCB Terminal, 630V, 24A, Tinned Copper with Orange Insulation (Pack of 50)

SKU: SKU: 2787650000   Download PDF

Select a Variant:
  • 2787650000 - 90° PCB Terminal, 630V, 24A, Tinned Copper with Orange Insulation (Pack of 50)
Qty:
Regular price Now $253.16   Web pricing policy
Regular price BEFORE   $0.00 Sale price Now $253.16 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information

Description:

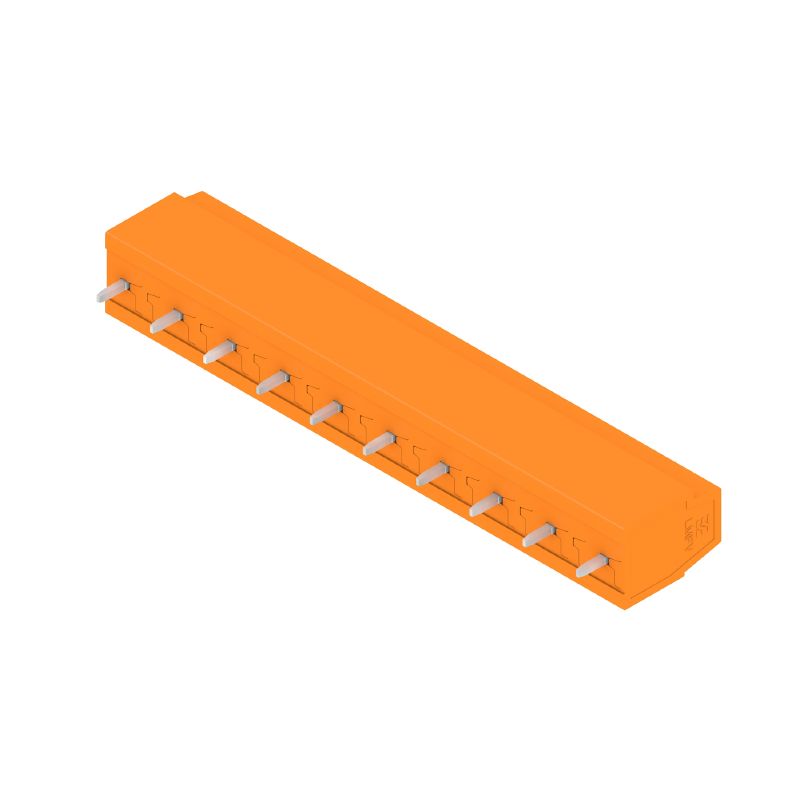

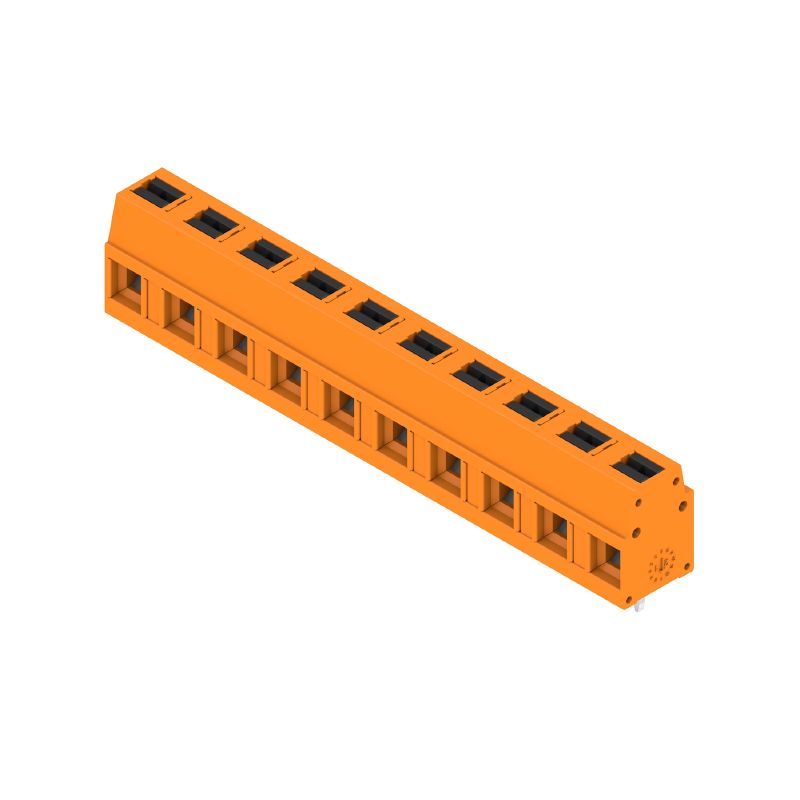

Introducing the LMFV 750/10/90 35SN OR BX printed circuit board terminal, engineered for robust performance with a voltage rating of up to 630 V and a current capacity of 24 A, tailored for specific wire sizes This terminal boasts a 90° clamping angle and features a 35 mm solder pin for easy integration Crafted from tinned copper alloy, it showcases an eye-catching orange insulating body Utilizing a PUSH IN connection method, it guarantees secure and dependable connections for a variety of applications, all while adhering to RoHS and UL compliance standards.

Features and Benefits:

    •Conductors suitable for connection range from 0.2 mm² to 2.5 mm².

    •Complies with RoHS regulations without exemptions.

    •Durable with a flammability rating of UL 94 V-0.

Specifications:

 Approved Standards RoHS, UL

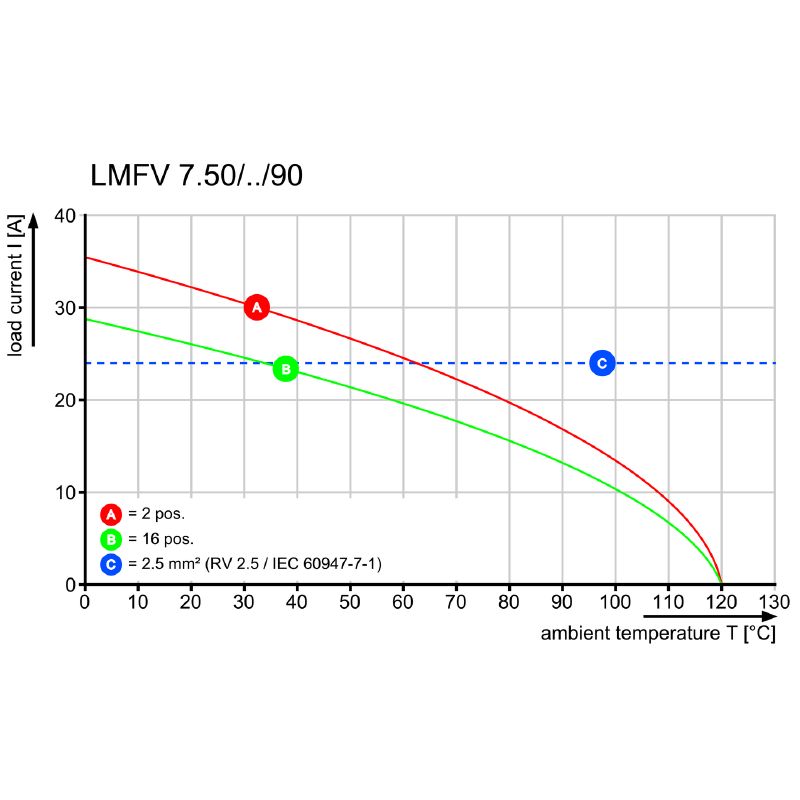

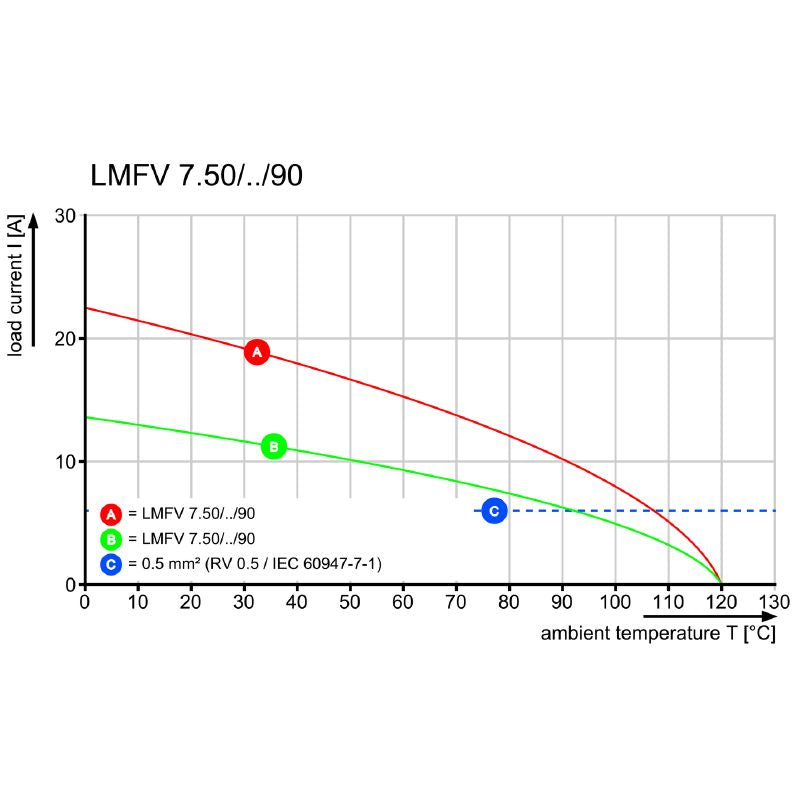

 Rated Current (IEC) 24 A
 Rated Voltage (IEC) 630 V
 Touch-safe Protection IP 20

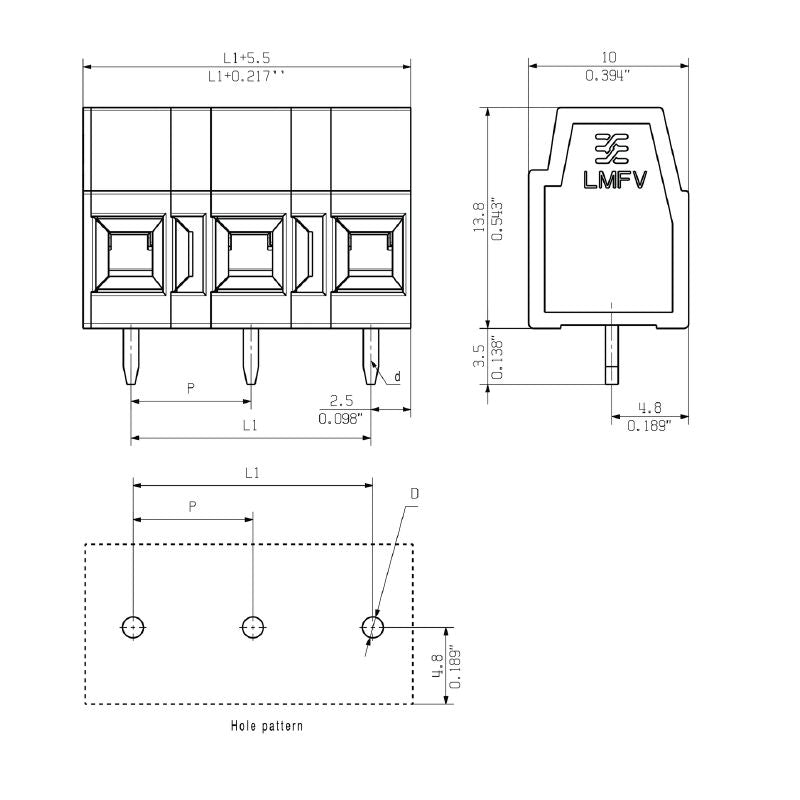

 Pitch 7.5 mm
 Number of Poles 10
 Solder Pin Length 3.5 mm
 Operating Temperature (Min) -40 °C
 Operating Temperature (Max) 115 °C
 Clamping Range (Min) 0.2 mm²
 Clamping Range (Max) 2.5 mm²
 Contact Material Cu-alloy
 Weight 16 g
