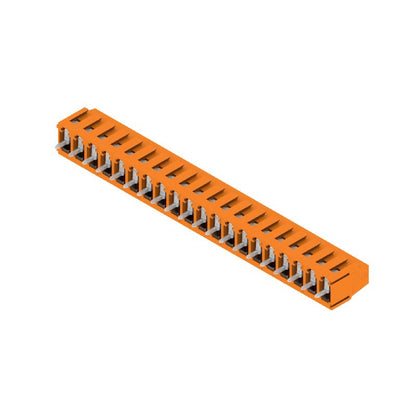

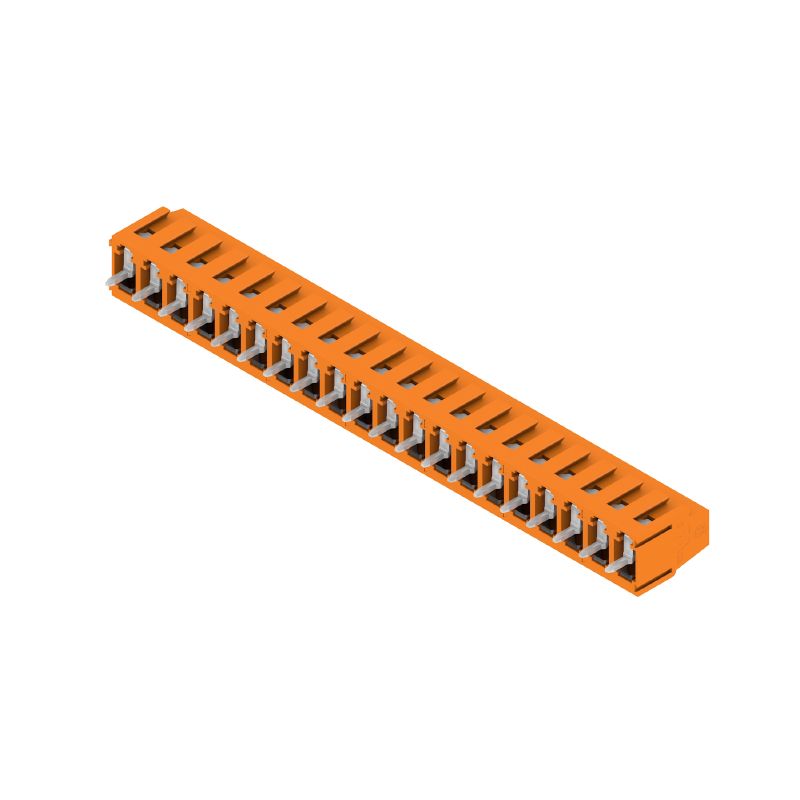

9994290000 - 5.08mm PCB Terminal Block, 20 Poles, 90° Angle, Orange (Pack of 18)

9994290000 - 5.08mm PCB Terminal Block, 20 Poles, 90° Angle, Orange (Pack of 18)

SKU: SKU: 9994290000   Download PDF

Select a Variant:
  • 9994290000 - 5.08mm PCB Terminal Block, 20 Poles, 90° Angle, Orange (Pack of 18)
Qty:
Regular price Now $79.44   Web pricing policy
Regular price BEFORE   $0.00 Sale price Now $79.44 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information

Description:

Introducing our top-tier PCB terminal, featuring a 508 mm pitch and designed with a 90° configuration that includes 20 poles Each terminal comes with a tinned solder pin measuring 35 mm in a vibrant orange hue The clamping yoke is engineered to accommodate a maximum wire size of 25 mm², ensuring secure connections This product is conveniently packaged in a box and meets RoHS compliance standards, affirming its commitment to environmental safety.

Features and Benefits:

    •Compliant with RoHS standards.

    •Clamping yoke connection method.

    •Designed for THT solder connection.

    •Suitable for multiple conductor types and sizes.

Specifications:

 IEC Rated Voltage 630 V

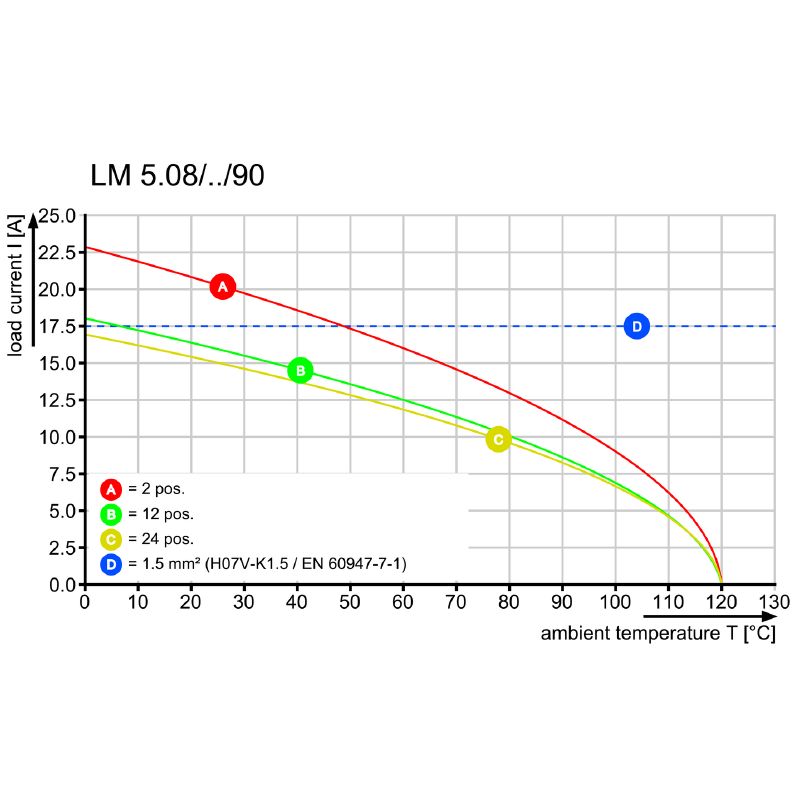

 IEC Rated Current 17.5 A
 UL Rated Voltage 300 V
 UL Rated Current 15 A
 Clamping Range Max 2.5 mm²

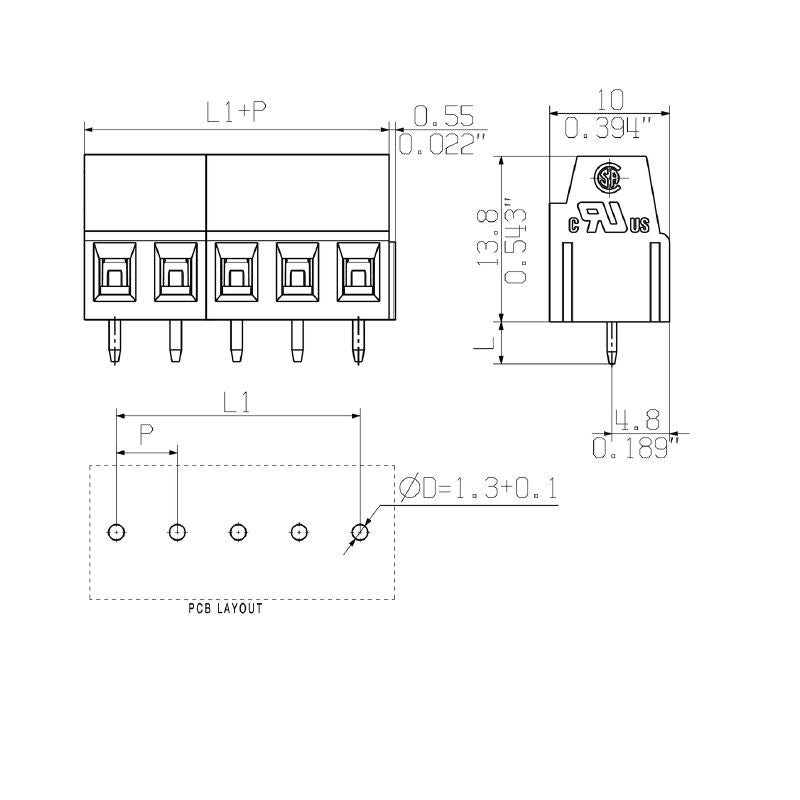

 Dimensions 10 mm x 102.15 mm x 17.3 mm
 Solder Pin Length 3.5 mm
 Number of Poles 20
 Protection Degree IP20
 Insulating Material Wemid (PA)
