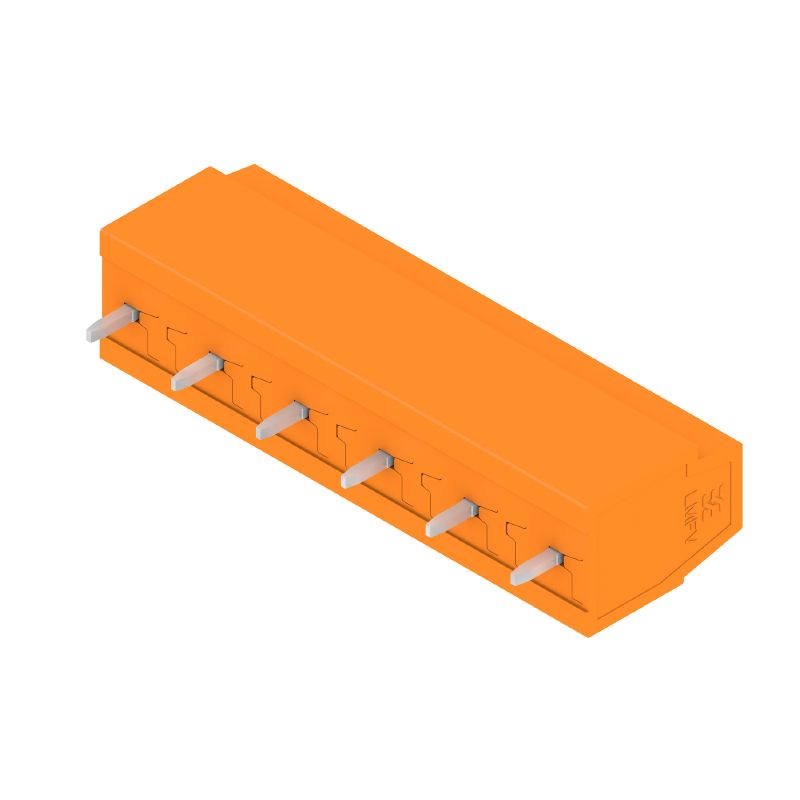

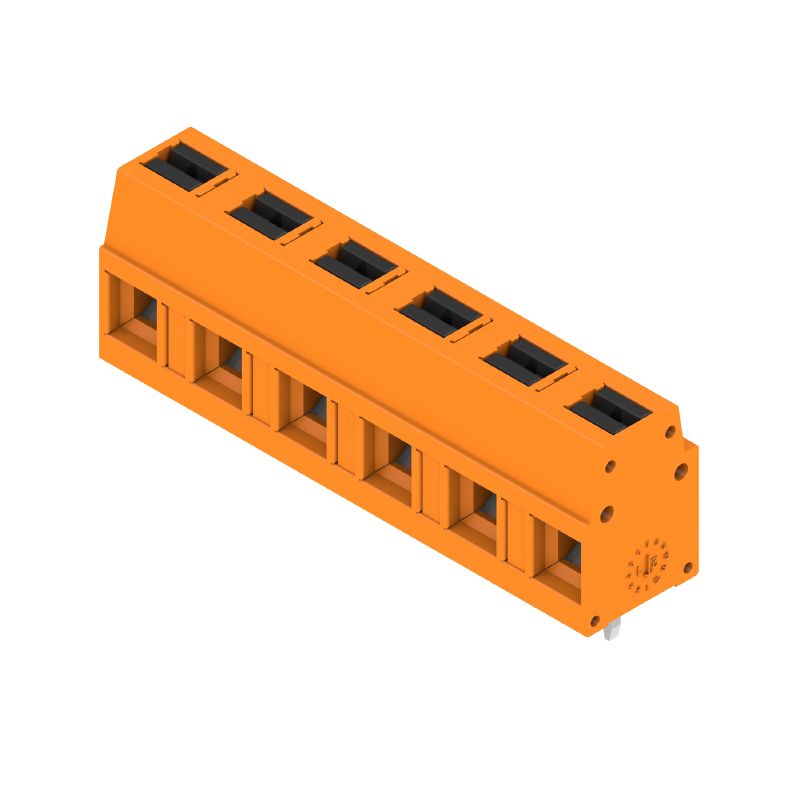

2787610000 - Orange 90° PCB Terminal, 6 Poles, 0.2-2.5 mm² Range (Pack of 84)

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Introducing the LMFV 750/06/90 35SN OR BX, a versatile printed circuit board terminal with a 90-degree orientation With a clamping range accommodating wire sizes from 02 to 25 mm², this six-pole terminal is ideal for your electronic connections It features a 35 mm solder pin and supports 'PUSH IN' wire attachments through an easy-to-use actuator The vibrant orange color not only adds a pop to your project but also meets RoHS compliance standards.

Packaged conveniently in a box, this terminal is perfect for your wiring needs.

Features and Benefits:

•Has PUSH IN connection method with actuator.

•Compact design with a pitch of 7.5 mm.

•TW 24 – 14 AWG wire compatibility.

•Touch-safe protection compliant to DIN standards.

•Compliant to RoHS without exemptions.

Specifications:
