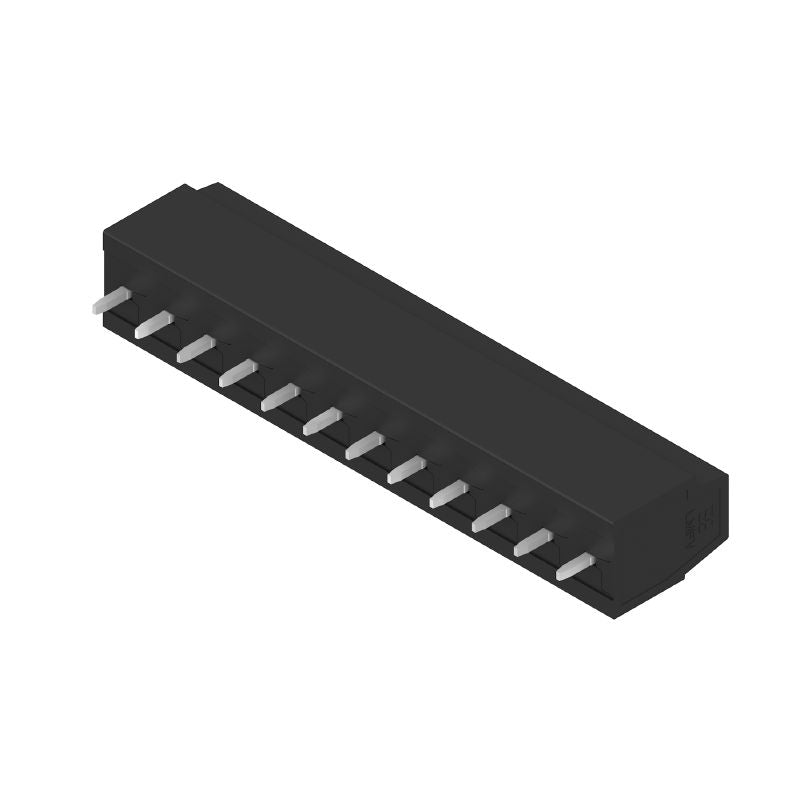

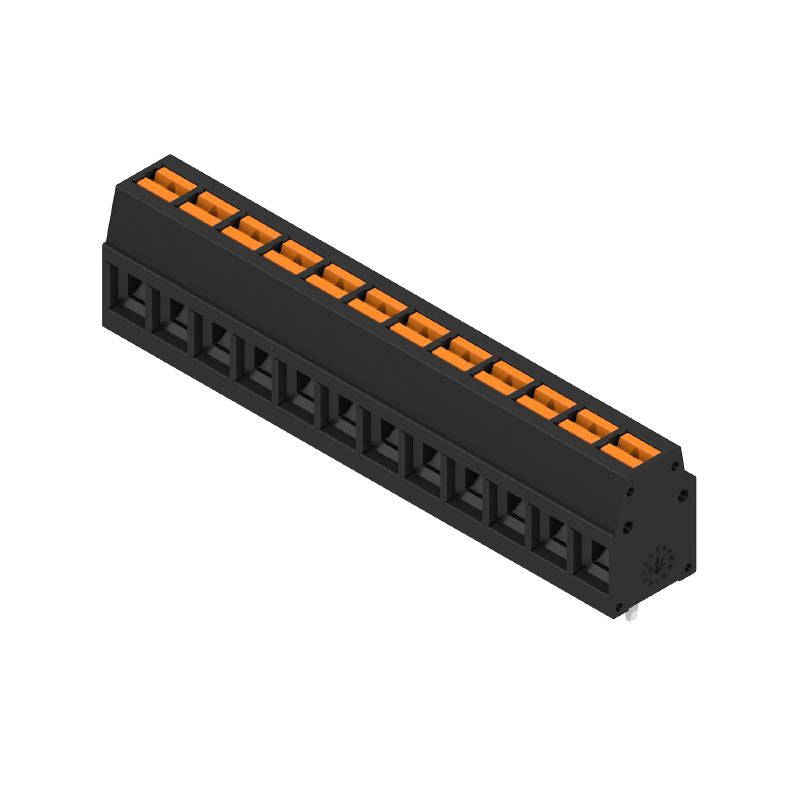

2787440000 - 5.00mm 12-Pole Circuit Board Terminal with PUSH IN Actuator (Pack of 64)

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

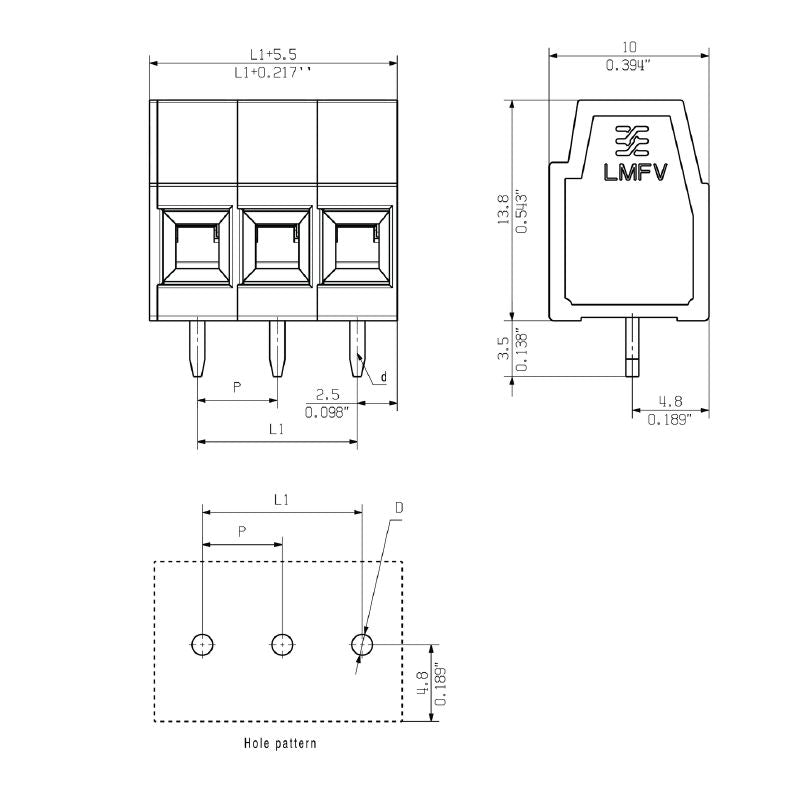

Introducing the LMFV 500/12/90 35SN BK BX terminal block, a reliable solution for your circuit board connections With 12 poles positioned at a 90° angle and a spacing of 500 mm, this component guarantees secure and efficient connectivity It features solder pins measuring 35 mm in length, all coated with durable tin, and comes in a classic black color The terminal block operates using a PUSH IN mechanism, complete with an actuator for effortless wiring, accommodating a maximum clamping range of up to 2.

5 mm² This product is conveniently packaged in a box for easy handling and storage.

Features and Benefits:

•Compliant with RoHS without exemptions.

•PUSH IN wire connection method with actuator.

•Compact 5 mm pitch design.

•Suitable for various wire types including flexible and solid conductors.

•Touch-safe protection rating IP 20.

Specifications:
