2787380000 - 5.00mm Pitch PC Terminal with 90° Connections (Pack of 128)

2787380000 - 5.00mm Pitch PC Terminal with 90° Connections (Pack of 128)

SKU: SKU: 2787380000   Download PDF

Select a Variant:
  • 2787380000 - 5.00mm Pitch PC Terminal with 90° Connections (Pack of 128)
Qty:
Regular price Now $329.37   Web pricing policy
Regular price BEFORE   $0.00 Sale price Now $329.37 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information

Description:

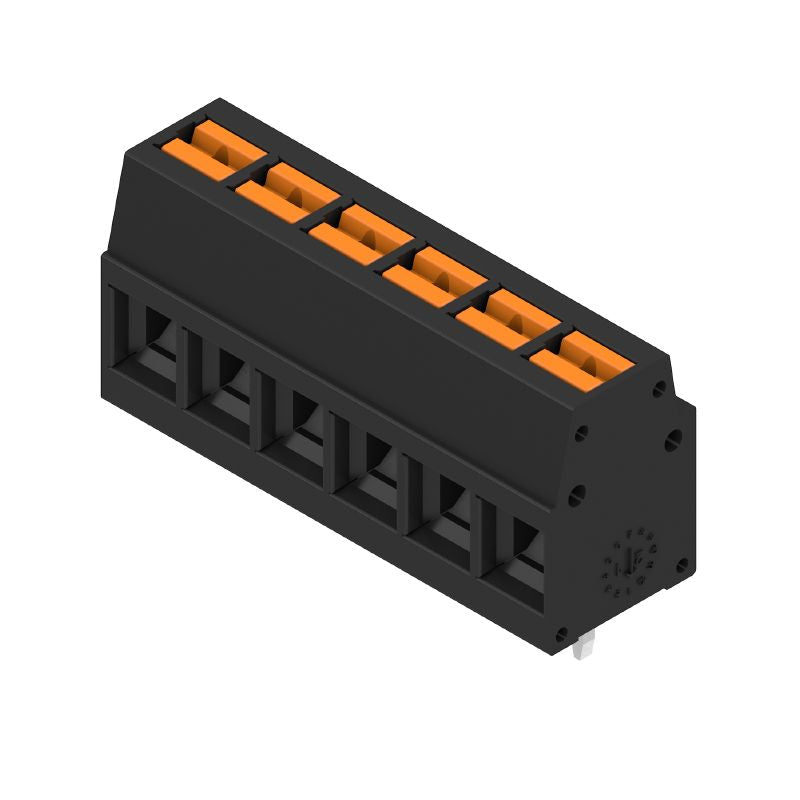

Introducing the LMFV 500/06/90 35SN BK BX, a reliable printed circuit board terminal tailored for seamless connections This component boasts a 500 mm pitch and supports six poles with vertical connections at a 90° angle The solder pins are 35 mm long, finished in black tinning for enhanced durability It offers a maximum clamping capability of 25 mm² and incorporates a PUSH IN mechanism, complete with an actuator for ease of use.

Each unit comes conveniently packaged in a box for straightforward ordering and storage.

Features and Benefits:

    •RoHS compliant without exemption.

    •Conductors suitable for connection with a clamping range from 0.2 mm² to 2.5 mm².

    •Operating temperature ranges from -40 °C to 115 °C.

    •Touch-safe protection according to DIN VDE 0470 IP 20.

    •Easy mounting onto a PCB via THT solder connection.

Specifications:

 Rated voltage (IEC) 630 V
 Rated current (IEC) 24 A
 Clamping range (max) 2.5 mm²

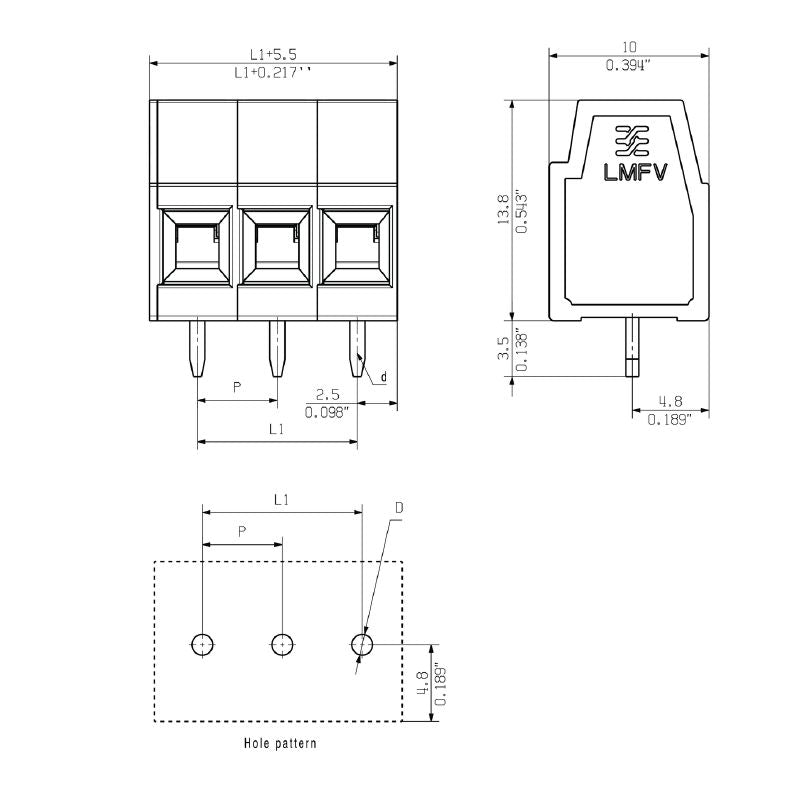

 Solder pin dimensions 0.95 x 0.8 mm
 Pitch 5 mm
 Insulating material PA
 Storage temperature min -40 °C
 Storage temperature max 70 °C
 UL File Number E60693
 Rated voltage (UL) 300 V
 Rated current (UL) 15 A
