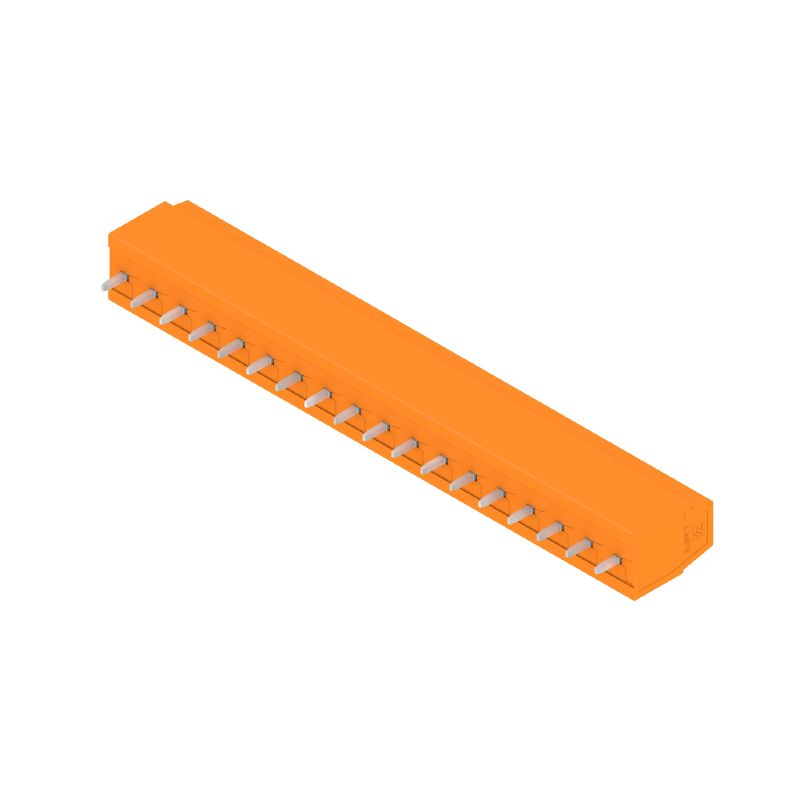

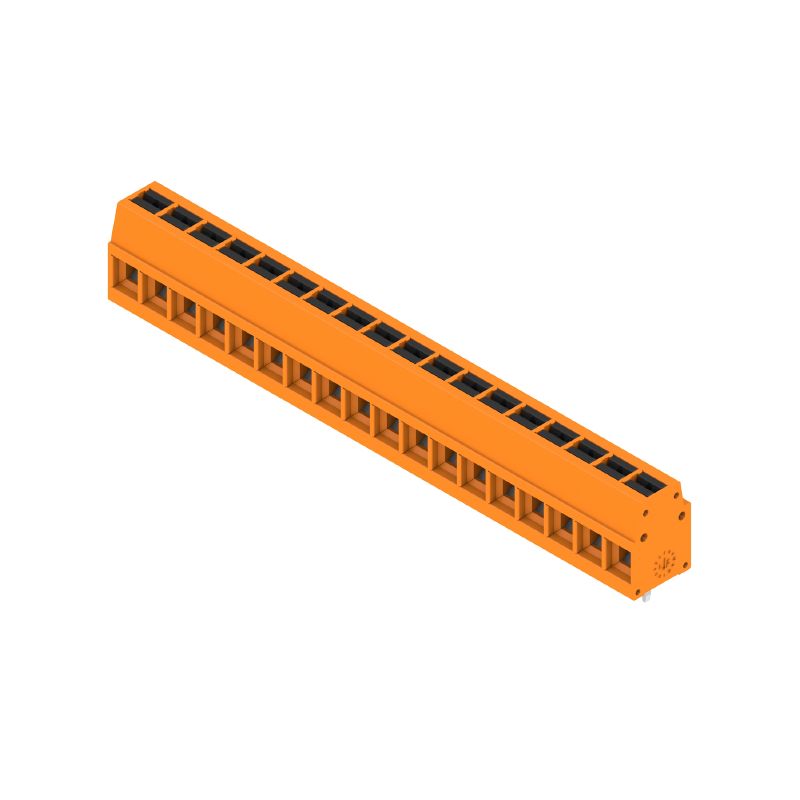

2786710000 - 5mm Pitch 18-Pole Orange Terminal with 90° Connection (Pack of 38)

2786710000 - 5mm Pitch 18-Pole Orange Terminal with 90° Connection (Pack of 38)

SKU: SKU: 2786710000   Download PDF

Select a Variant:
  • 2786710000 - 5mm Pitch 18-Pole Orange Terminal with 90° Connection (Pack of 38)
Qty:
Regular price Now $293.35   Web pricing policy
Regular price BEFORE   $0.00 Sale price Now $293.35 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information

Description:

Discover this set of printed circuit board terminals, featuring an 18-pole configuration with a 500 mm pitch These terminals are crafted for a seamless 90° connection and come equipped with 35 mm solder pin lengths Finished in a vibrant orange and tinned for enhanced conductivity, they implement a PUSH IN connection mechanism with an actuator, accommodating a maximum clamping range of 25 mm² Each terminal is packaged securely in a box and meets RoHS standards, along with holding UL certification number E60693.

Features and Benefits:

    •PUSH IN connection with actuator for easy wire connection.

    •RoHS compliant without exemptions.

    •Designed for printed circuit boards.

    •THT solder connection method.

    •Safe from finger touch according to regulations.

Specifications:

 IEC Voltage Rating 630 V
 IEC Current Rating 24 A
 Clamping Range 0.2 - 2.5 mm²
 UL Voltage Rating 300 V
 UL Current Rating 15 A
 Number of Poles 18
 Pitch 5 mm
 Solder Pin Length 3.5 mm
 Operating Temperature Range -40 °C to 115 °C
 IP Protection Degree IP20
 Material PA
 Net Weight 25.2 g
