2774590000 - 7-Pole 7.50mm PCB Terminal with 180° Outlet, Orange (Pack of 25)

2774590000 - 7-Pole 7.50mm PCB Terminal with 180° Outlet, Orange (Pack of 25)

SKU: SKU: 2774590000   Download PDF

Select a Variant:
  • 2774590000 - 7-Pole 7.50mm PCB Terminal with 180° Outlet, Orange (Pack of 25)
Qty:
Regular price Now $106.65   Web pricing policy
Regular price BEFORE   $0.00 Sale price Now $106.65 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information

Description:

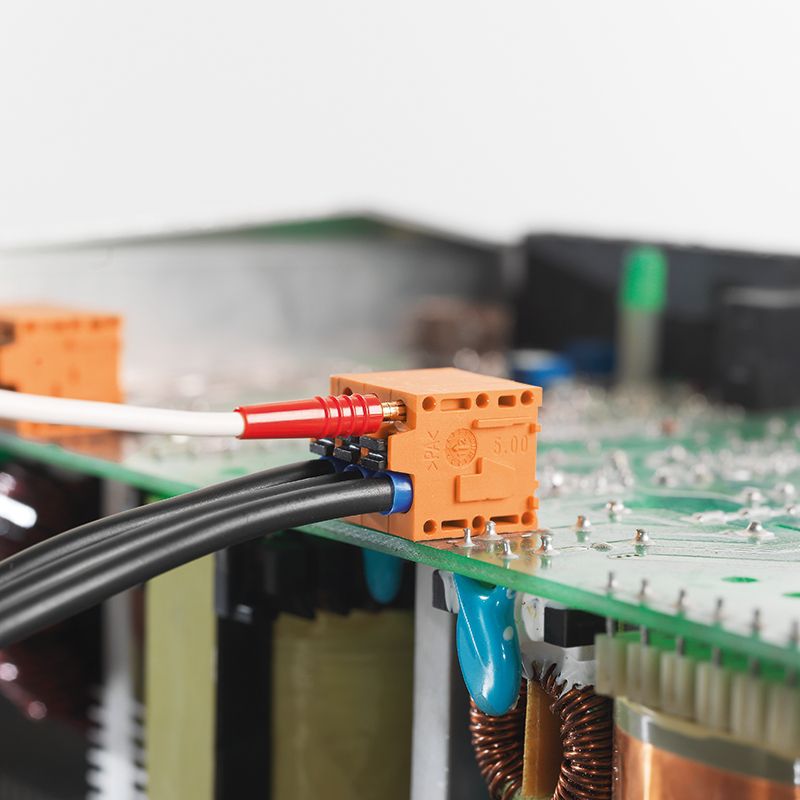

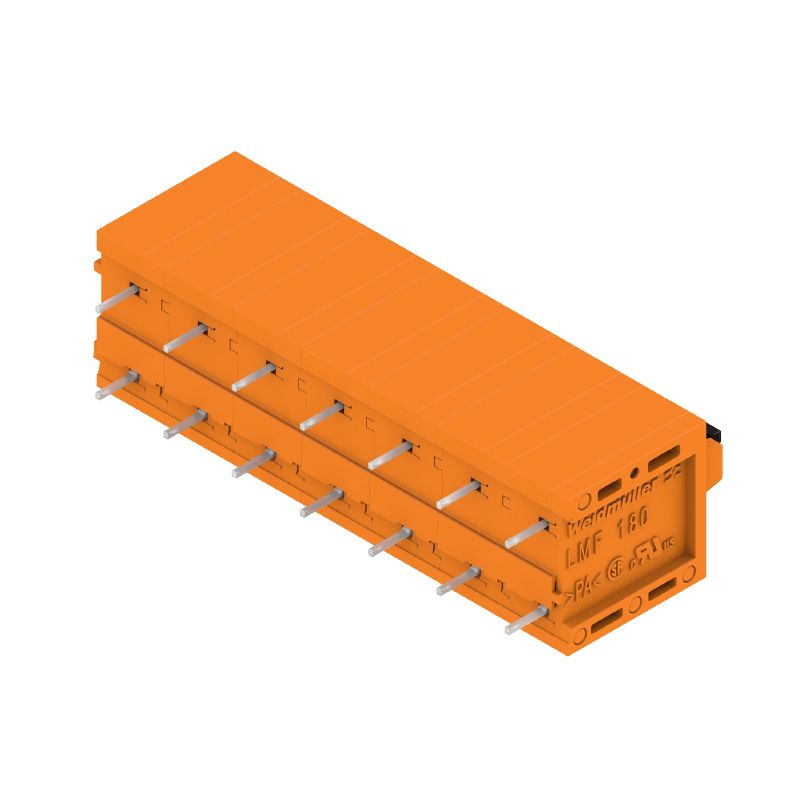

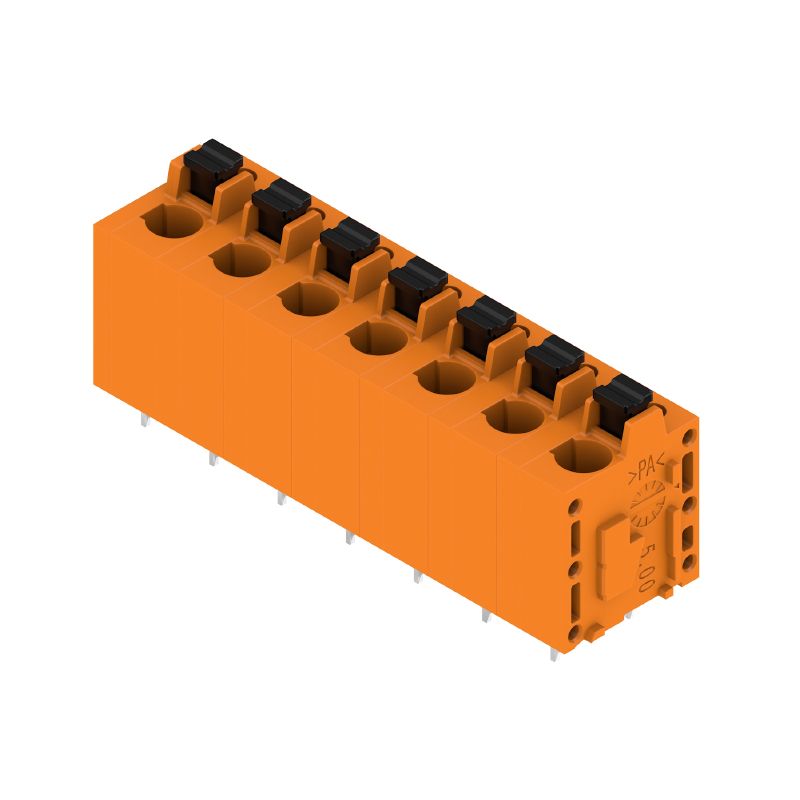

Discover the LMF 750/07/180 35SN OR BX, a high-performance printed circuit board terminal Featuring a 750 mm pitch with 7 poles, this terminal boasts a 180° conductor outlet for easy connection It includes solder pins measuring 35 mm in length, coated in tin for enhanced durability This vibrant orange component offers a user-friendly PUSH IN connection facilitated by a handy push button Packaged securely in a box, this product meets RoHS compliance standards, ensuring it aligns with environmental regulations.

Features and Benefits:

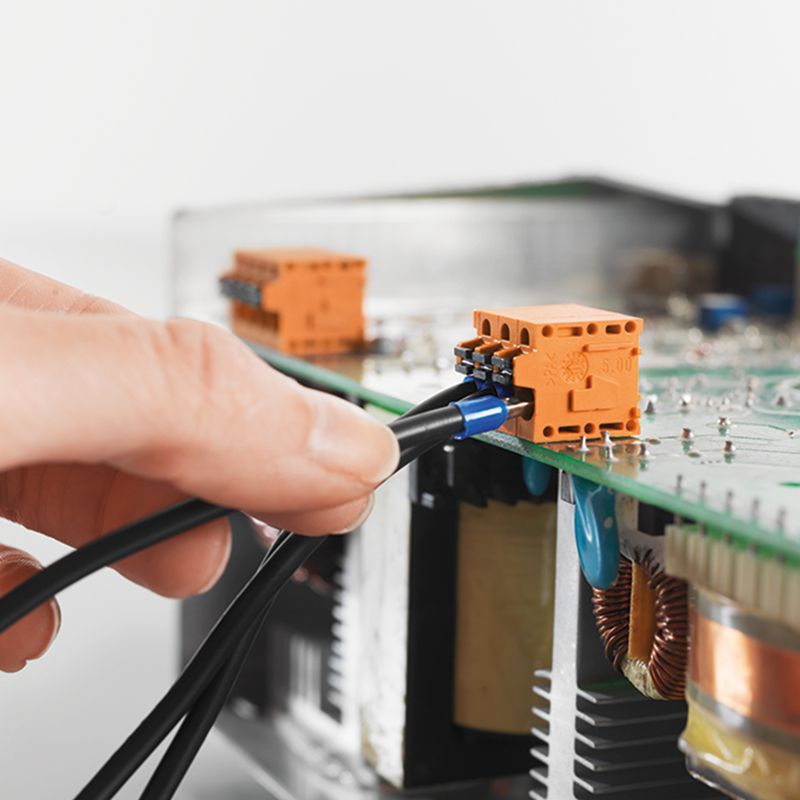

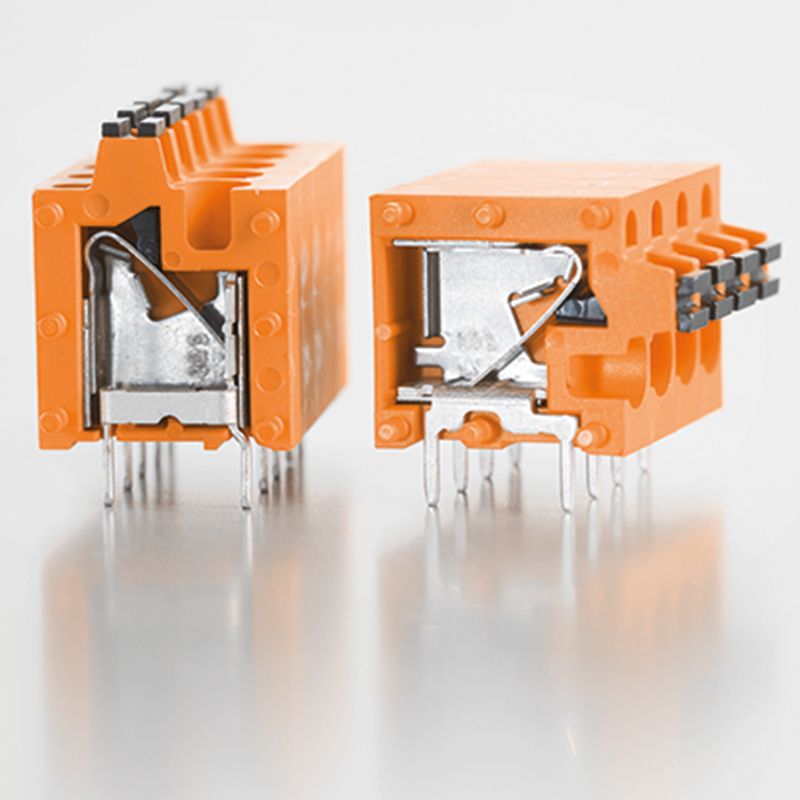

    •PUSH IN connection with push button.

    •Compliant with RoHS without exemption.

    •Safe from finger touch.

    •Constructed from insulation material Wemid (PA).

    •Designed for easy mounting onto PCB with THT solder connection.

Specifications:

 Rated voltage (IEC) 1000 V

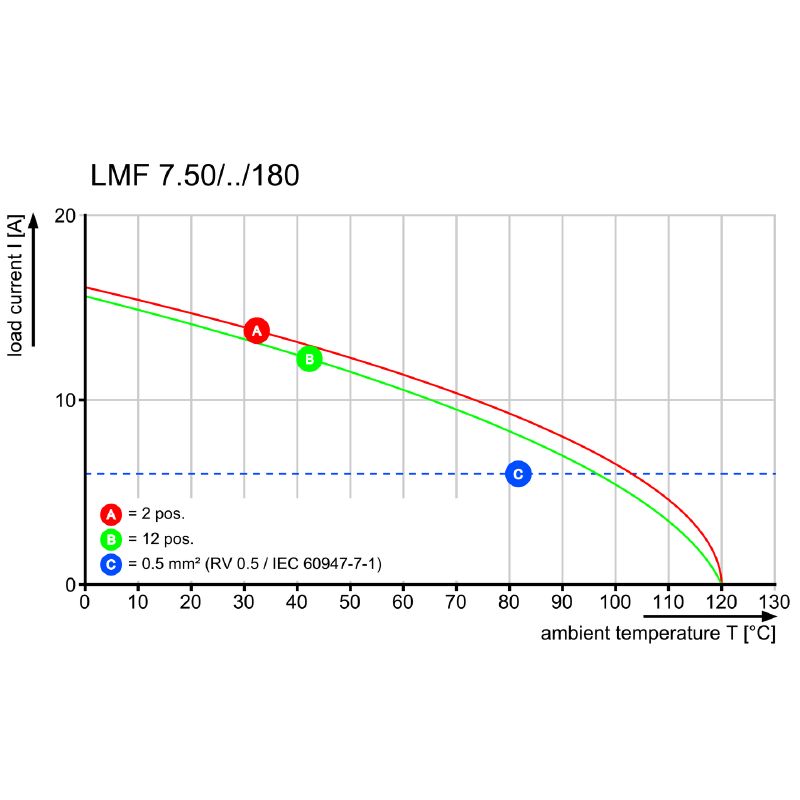

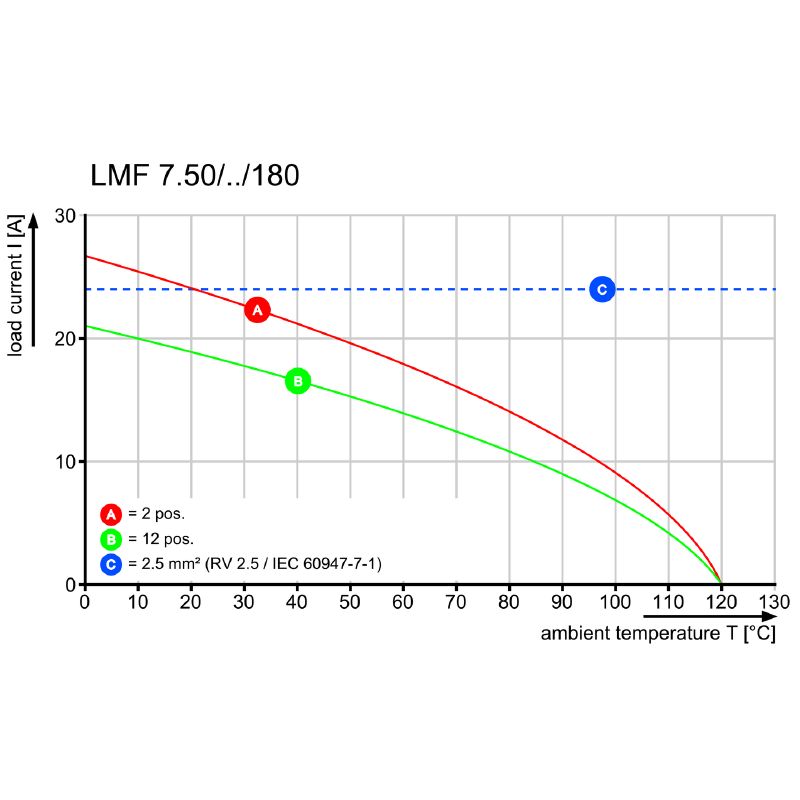

 Rated current (IEC) 24 A
 Wire connection cross section (min) AWG 24
 Wire connection cross section (max) AWG 12

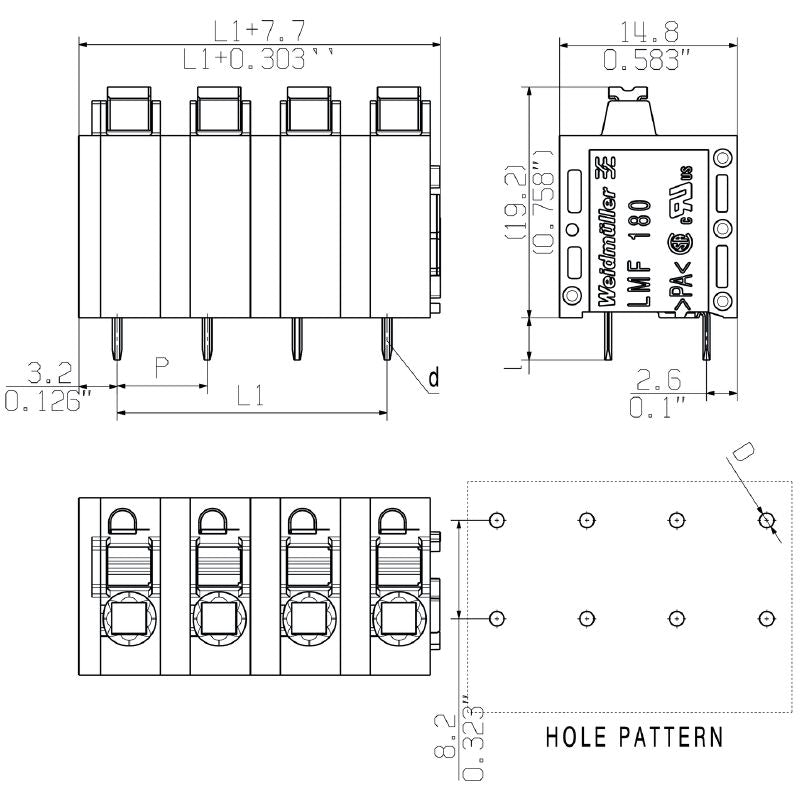

 Pitch 7.5 mm
 Touch-safe protection IP 20
 Operating temperature (min) -50 °C
 Operating temperature (max) 120 °C
 Storage temperature (min) -40 °C
 Storage temperature (max) 70 °C
