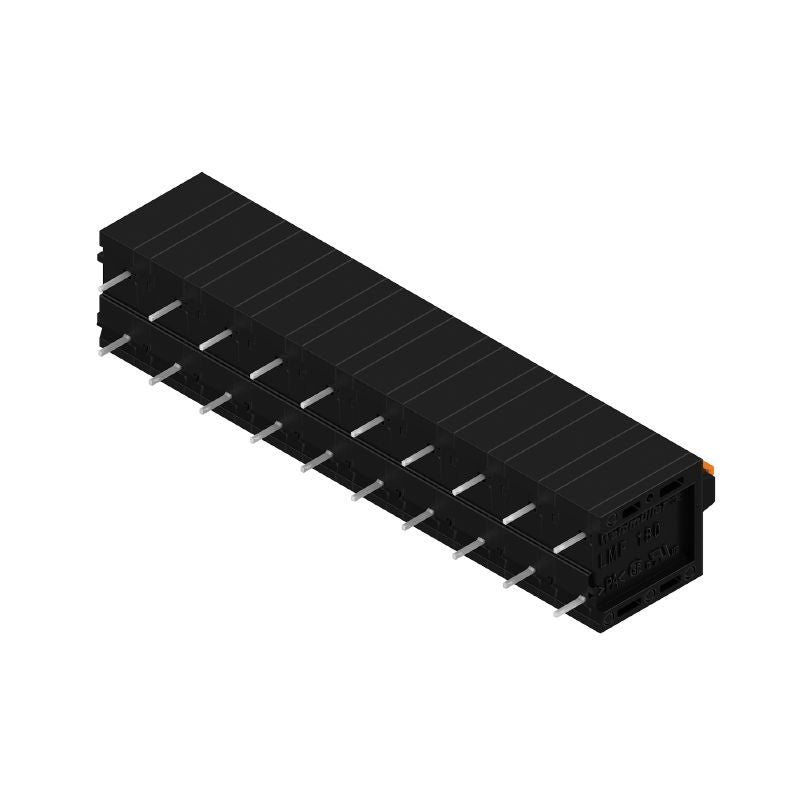

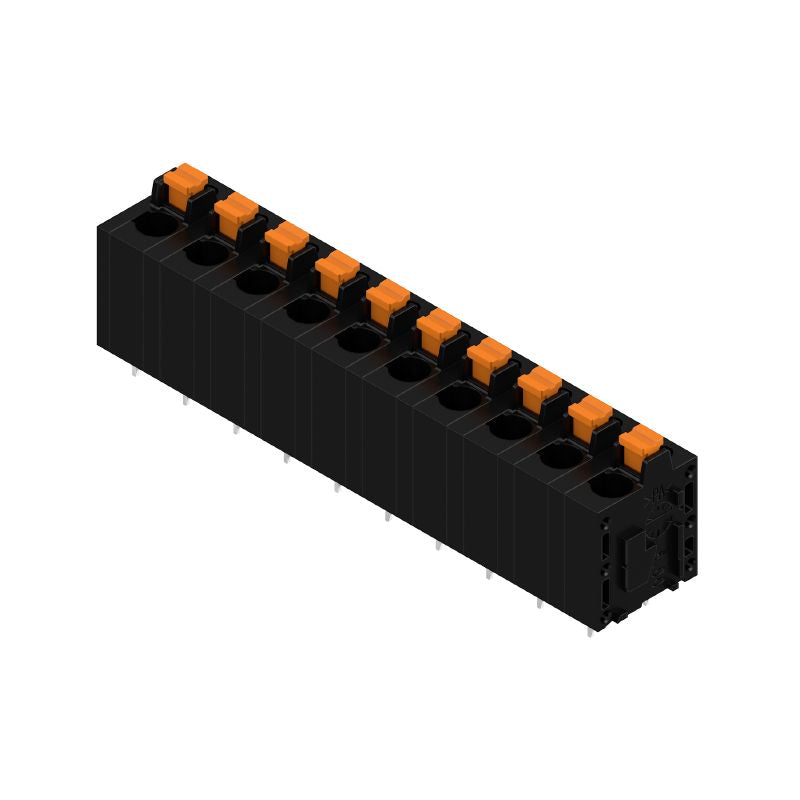

2774510000 - 7.5mm Pitch 10-Pole PCB Terminal with Push Button (Pack of 20)

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Introducing our high-quality printed circuit board terminals, meticulously designed for optimal performance These terminals have a 750 mm pitch and feature a robust 10-pole layout in a convenient 180° arrangement The solder pin measures 35 mm and is coated in a sleek black tin finish, ensuring excellent conductivity Equipped with a user-friendly PUSH IN mechanism along with a push button, these terminals are practical for a range of applications.

They come neatly packaged in a protective box for easy storage and transport.

Features and Benefits:

•Push-in wire connection method with a push button.

•Compliant with RoHS standards.

•Touch-safe protection according to DIN VDE regulations.

•Insulating material made of Wemid (PA).

•Good resistance to tracking with a Comparative Tracking Index (CTI) of ≥ 600.

•Durable construction with a UL 94 flammability rating of V-0.

Specifications:
