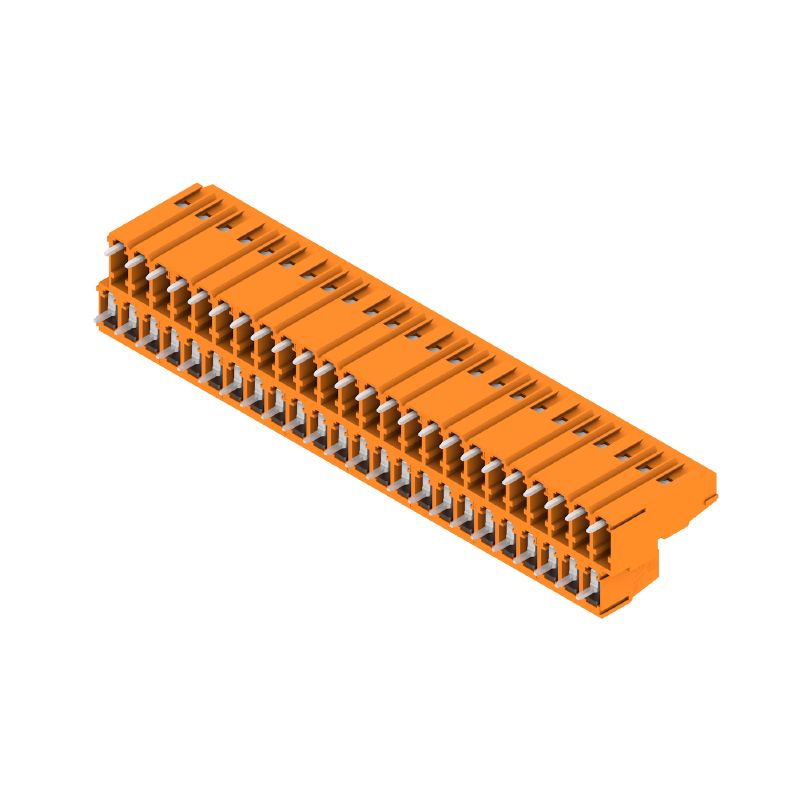

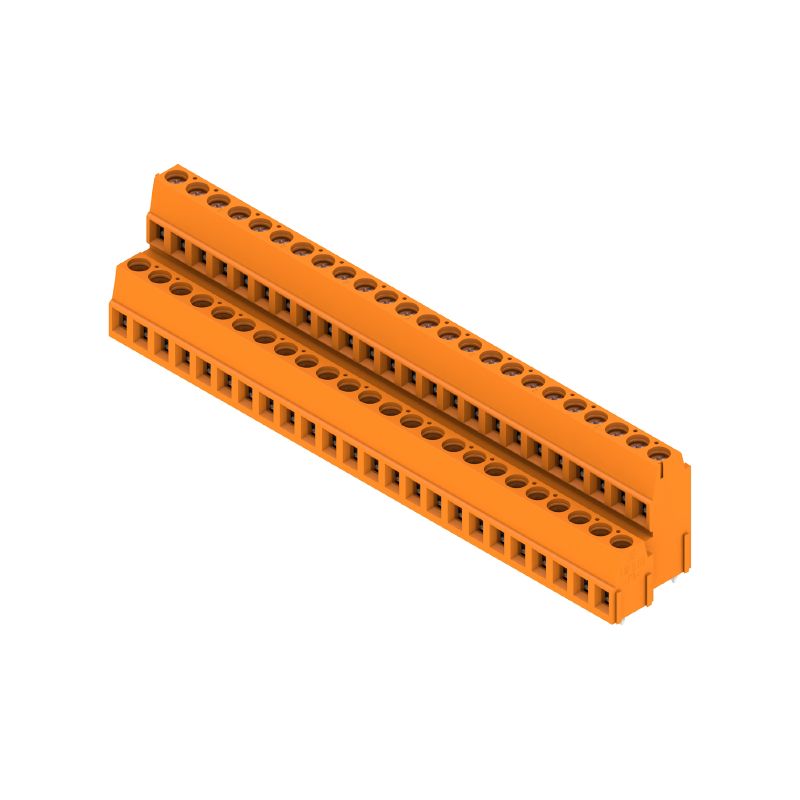

2599060000 - 5.08mm Pitch PCB Terminal with 48 Poles, Orange (Pack of 8)

2599060000 - 5.08mm Pitch PCB Terminal with 48 Poles, Orange (Pack of 8)

SKU: SKU: 2599060000   Download PDF

Select a Variant:
  • 2599060000 - 5.08mm Pitch PCB Terminal with 48 Poles, Orange (Pack of 8)
Qty:
Regular price Now $112.05   Web pricing policy
Regular price BEFORE   $0.00 Sale price Now $112.05 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information

Description:

Discover the functionality of our printed circuit board terminals, designed with a pitch of 508 mm and featuring 48 poles arranged at a precise 90° angle The solder pins extend 35 mm and come with a vibrant orange tinned finish This product utilizes a reliable clamping yoke connection type, accommodating a maximum clamping range of 25 mm² Certified under RoHS standards, it carries the official order number 2599060000, ensuring compliance and quality for your projects.

Features and Benefits:

    •THT solder connection method.

    •Insulating material made of Wemid (PA).

    •Touch-safe protection according to DIN VDE.

    •Compliant with international standards.

Specifications:

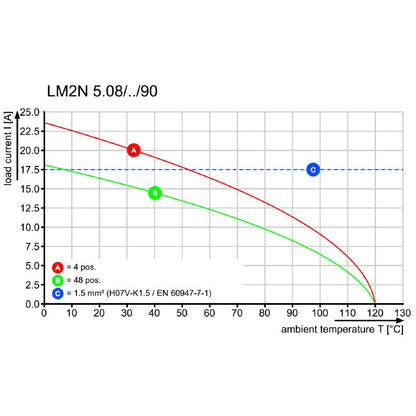

 IEC Rating Voltage 630 V
 IEC Rating Current 17.5 A
 UL Rating Voltage 300 V
 UL Rating Current 15 A
 Pin Series Quantity 2
 Number of Rows 2
 Max Adjacent Poles per Row 48
 Solder Pin Dimensions 0.95 x 0.8 mm
 Solder Eyelet Hole Diameter 1.3 mm
 Tightening Torque (min.) 0.4 Nm
 Tightening Torque (max.) 0.5 Nm
 Volume Resistance 1.20 mΩ
 Insulating Material Group I
 Flammability Rating V-0
 Operating Temperature (max.) 120 °C
 Storage Temperature (min.) -40 °C
 Storage Temperature (max.) 70 °C
 Clamping Range (min.) 0.2 mm²
 Clamping Range (max.) 2.5 mm²
 Wire Connection Cross Section AWG (min.) AWG 24
 Wire Connection Cross Section AWG (max.) AWG 14
