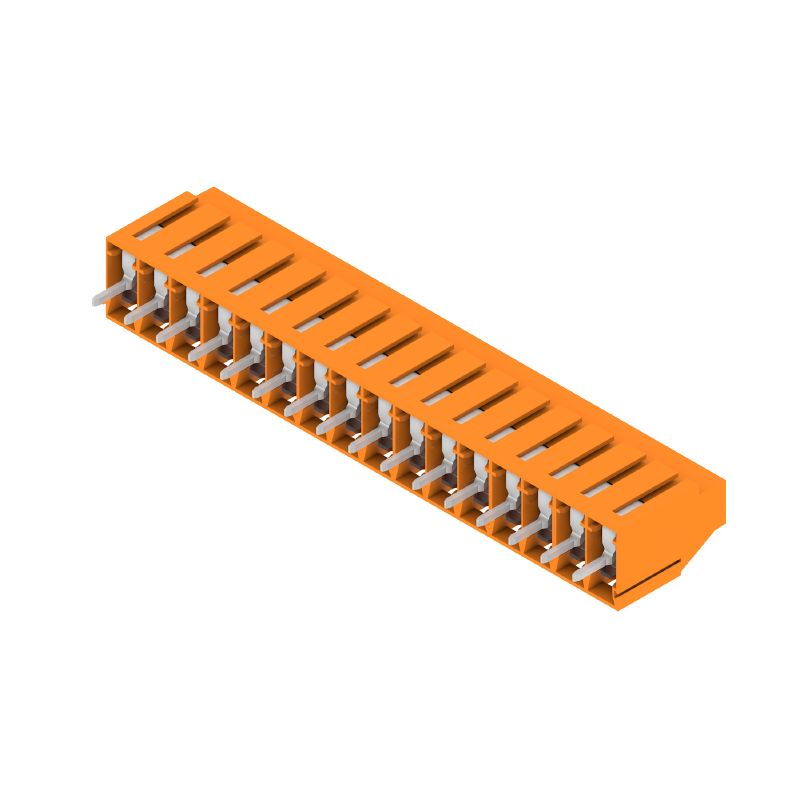

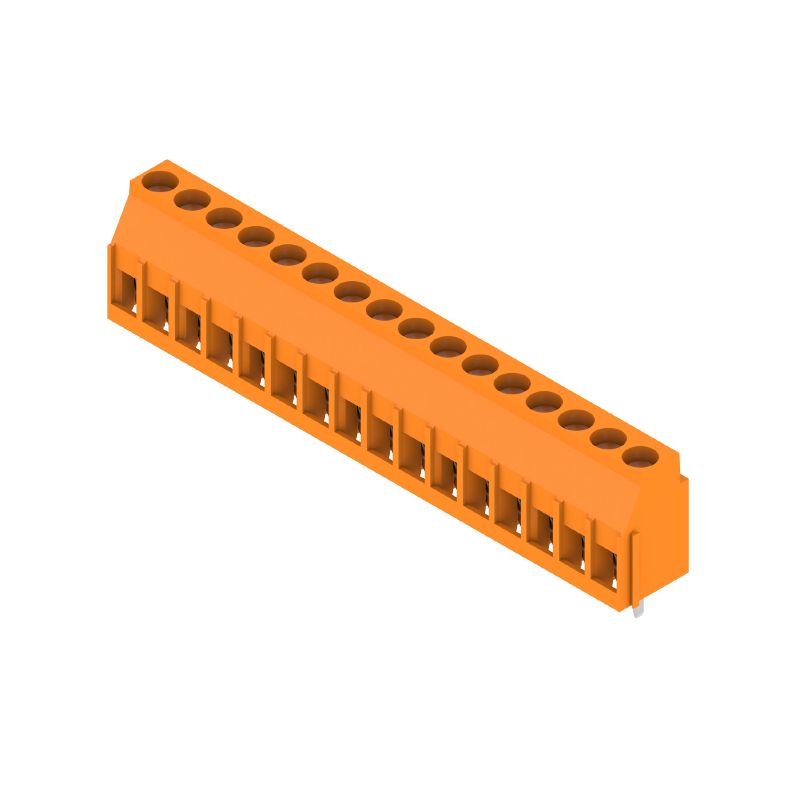

2567260000 - 5.08mm Tinned Orange PCB Terminal, 16 Poles, 90° Angle (Pack of 18)

2567260000 - 5.08mm Tinned Orange PCB Terminal, 16 Poles, 90° Angle (Pack of 18)

SKU: SKU: 2567260000   Download PDF

Select a Variant:
  • 2567260000 - 5.08mm Tinned Orange PCB Terminal, 16 Poles, 90° Angle (Pack of 18)
Qty:
Regular price Now $137.48   Web pricing policy
Regular price BEFORE   $0.00 Sale price Now $137.48 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information

Description:

Discover reliability with this printed circuit board terminal, designed at a 508 mm pitch and featuring 16 poles for versatile connections The terminal connects at a practical 90° angle and has solder pin lengths measuring 45 mm, all showcased in a striking tinned orange finish With clamping yoke connections offering a maximum clamping capacity of 6 mm², this terminal is exceptionally functional Each unit is neatly packaged in a box and adheres to RoHS regulations, ensuring compliance and safety for your electrical needs.

Features and Benefits:

    •Designed for robust wire connections with a clamping yoke.

    •WireReady property for easy assembly.

    •Touch-safe protection meeting DIN VDE standards.

    •High resistance to mechanical stress.

Specifications:

 IEC Rated Voltage 500 V

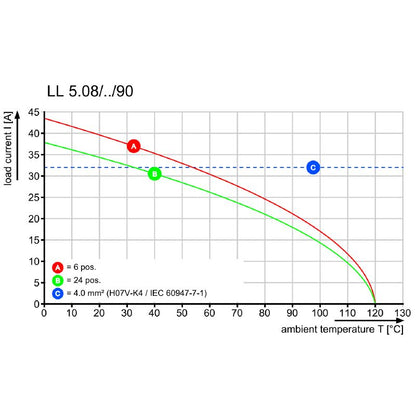

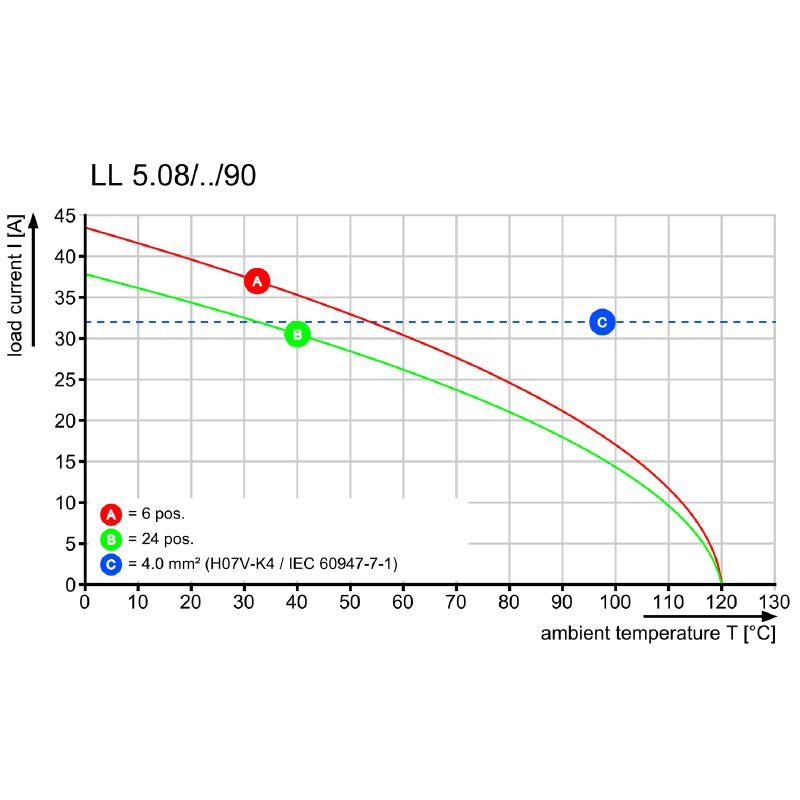

 IEC Rated Current 32.5 A
 UL Rated Voltage 300 V
 UL Rated Current 20 A
 Clamping Range 0.5 - 6 mm²

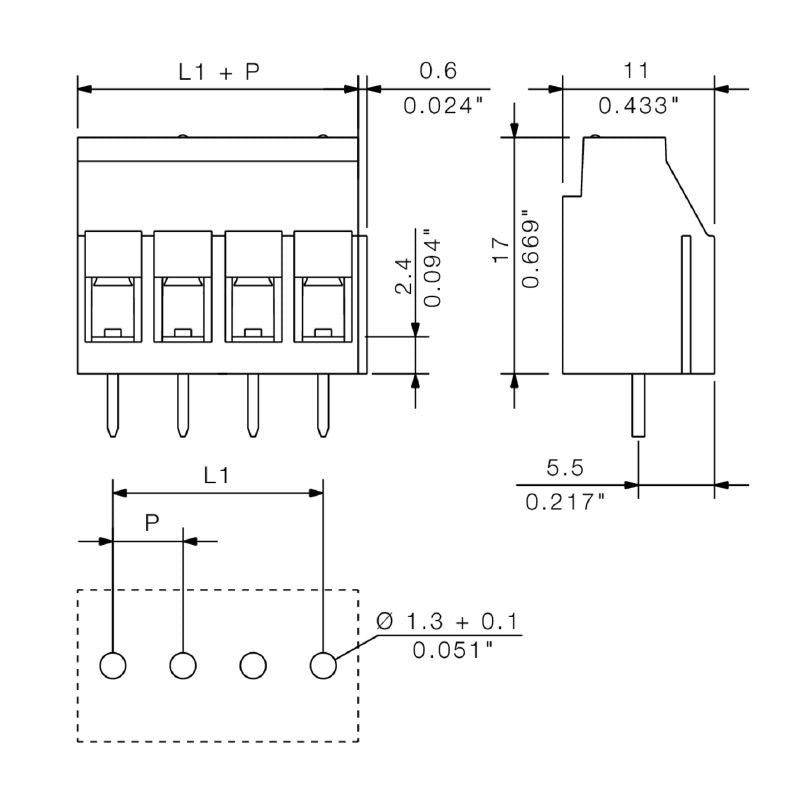

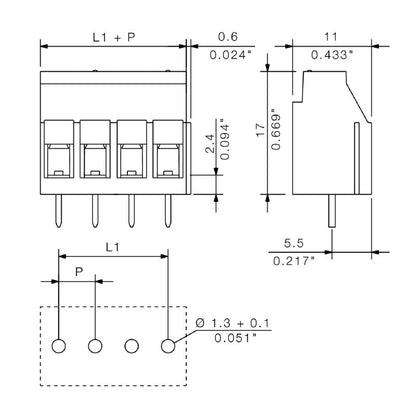

 Pitch (P) 5.08 mm
 Number of Poles 16
 Solder Pin Length 4.5 mm
 Net Weight 24.75 g
 Operating Temperature Max 120 °C
 Storage Temperature -40 °C to 70 °C
