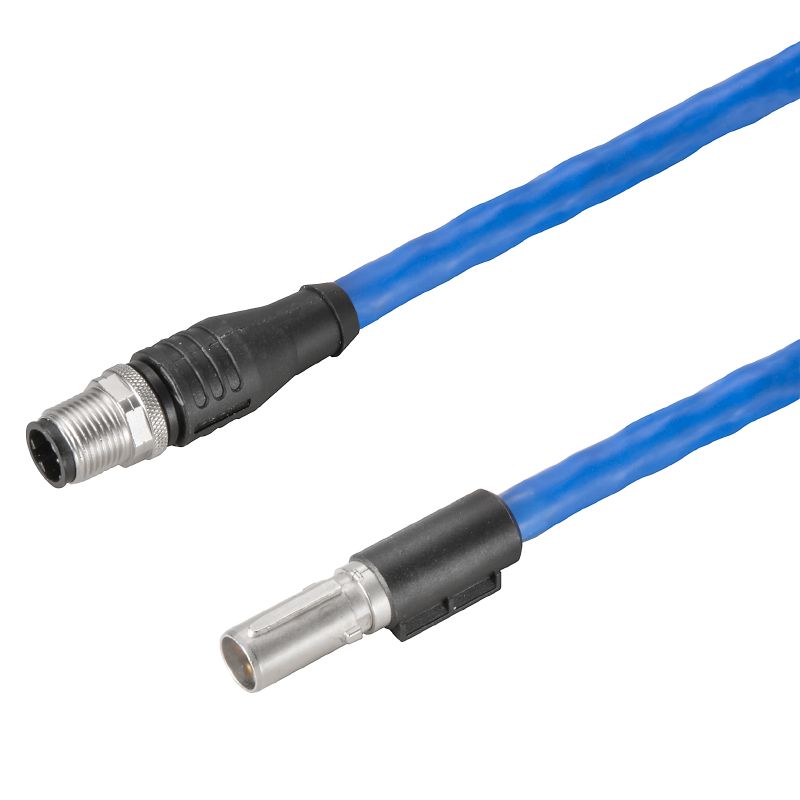

2450440150 - 1.5m Cat. 6A Ethernet Cable with X-Coded Design

2450440150 - 1.5m Cat. 6A Ethernet Cable with X-Coded Design

SKU: SKU: 2450440150 Download PDF

Variant:
  • 2450440150 - 1.5m Cat. 6A Ethernet Cable with X-Coded Design
Regular price Now $207.61
Regular price BEFORE   $0.00 Sale price Now $207.61
Sold out
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Ensure your data transmission is top-notch with the HDC XX6A01 MFSM12X-0150 Cat 6A cable, measuring 15 meters in length Tailored for high-speed applications, this cable boasts an X-coded design that supports impressive data transfer rates of up to 10 Gbps Its male and female connectors are engineered for durability, withstanding a minimum of 100 plug-in cycles Enjoy reliable performance with an insulation resistance rated at a substantial 10^8 ohms.

Constructed from Radox EM 104 sheath material, this cable provides excellent shielding and resistance for all your connectivity needs.

Features and Benefits:

    •X-coded for high-speed applications.

    •Transmission rate of 10 Gbps.

    •Minimum insulation resistance of 10^8 ohms.

    •Rated for pollution severity class 2.

    •Flexible construction with an outside diameter of 8.1 mm.

    •Robust connectors rated for ≥ 100 plugging cycles.

Specifications:

 Limit temperature -40 °C ... 90 °C
 Cable length 1.5 m
 Encoding X-coded
 Contact surface Au (Gold)
 Nominal current 0.5 A
 Nominal voltage 50 V
 Number of poles 8
 Opposite side version Female straight M12X
 Insulation Expanded
 Outside diameter 8.1 mm ± 0.5
 Sheath material Radox EM 104
 Shielded Yes
 Colour coding white/orange, orange, white/green, green, white/brown, brown, white/blue, blue
