1953950000 - 4-Pole Orange PCB Terminal, 3.5mm Pin, 135° Angle (Pack of 100)

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

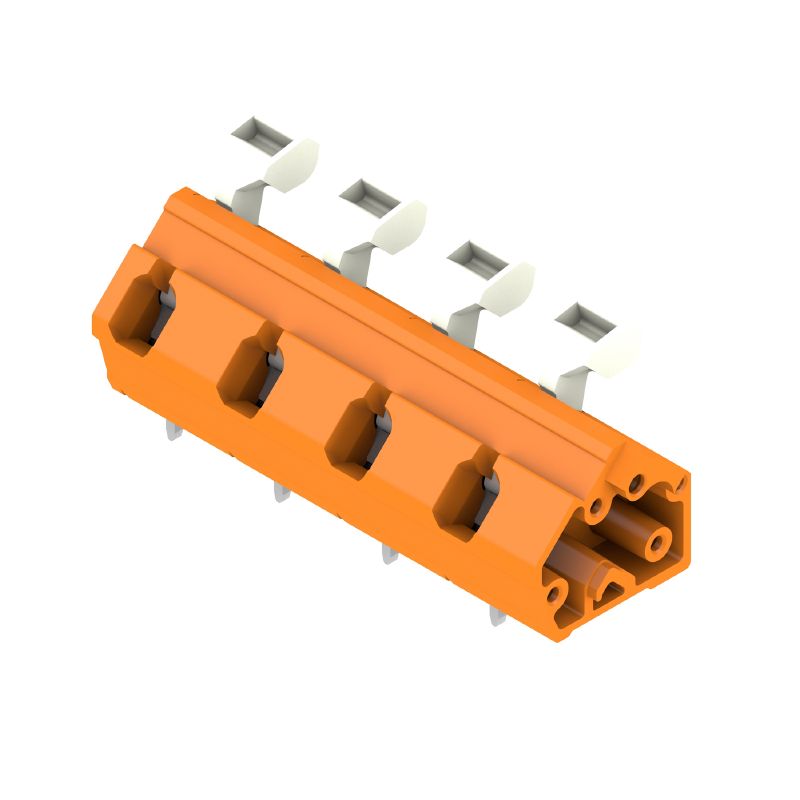

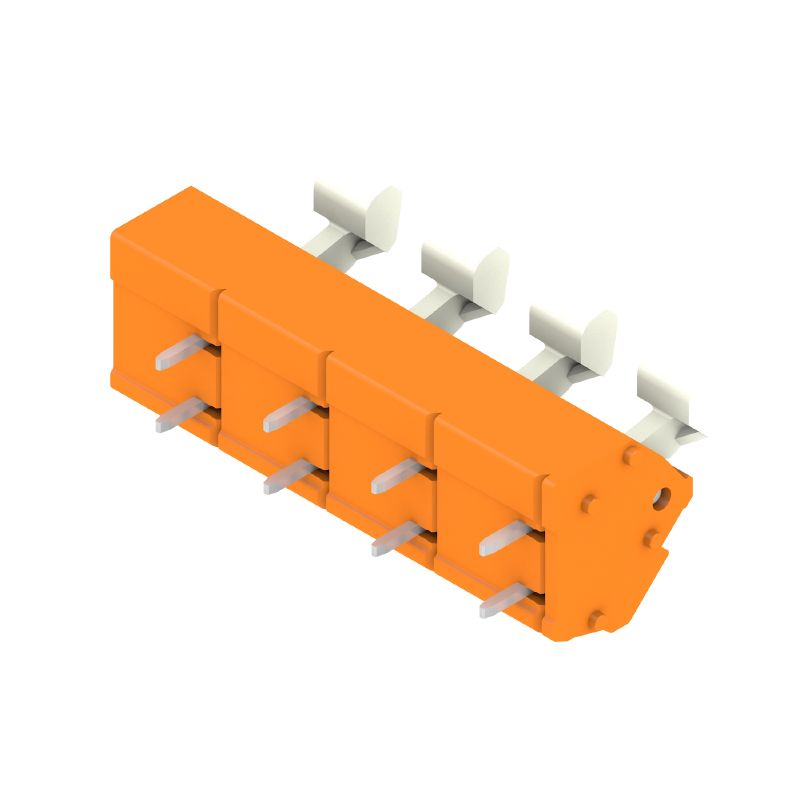

Introducing the LMZFL 10/4/135 35OR, a versatile printed circuit board terminal engineered for 4 pole configurations and operating at a 135° angle The solder pin is 35 mm in length and features a vibrant orange tinned finish This terminal utilizes a reliable tension clamp connection with an actuator, accommodating a maximum clamping range of 25 mm² Designed for robust electrical performance, it operates at a rated voltage of 1000 V and supports a current rating of 24 A.

UL certified, this PCB terminal is a dependable choice for a wide range of electrical applications.

Features and Benefits:

•Tension clamp connection with actuator for secure attachment.

•4 poles for flexible connectivity.

•Designed for a variety of conductor sizes and types.

•Compliant with RoHS and UL standards.

Specifications:
