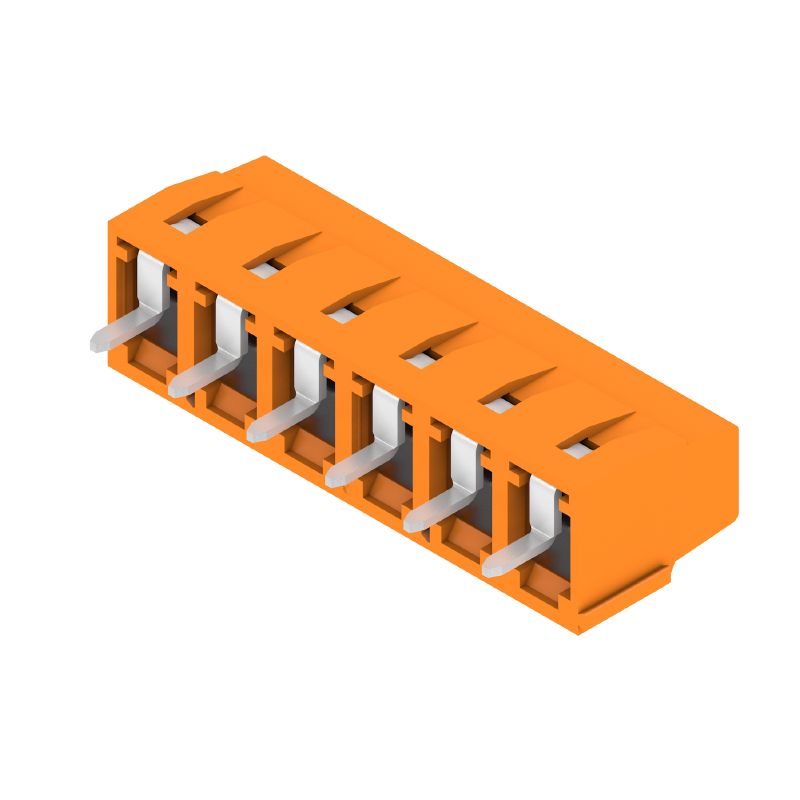

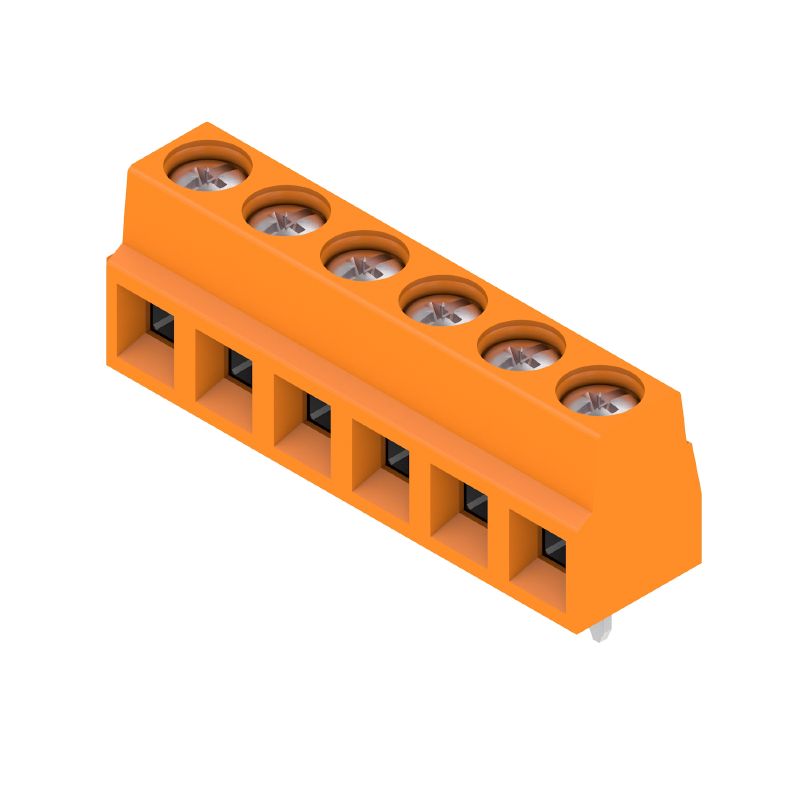

1912570000 - 5.08mm PCB Terminal, 6 Poles, 90° Angle, Orange (Pack of 100)

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Introducing the LS 508/06/90 35SN OR BX, an innovative printed circuit board terminal This connector comes with a 508mm pitch and features six poles arranged at a 90° angle for versatile installations With a tinned solder pin measuring 35mm in length, it's not only robust but also user-friendly The terminal sports a vibrant orange hue and employs a clamping yoke connection that accommodates a maximum wire size of 1.

5mm² Meeting all necessary ROHS compliance standards, this product comes securely packaged in boxes for your convenience.

Features and Benefits:

•Clamping range for wiring is maximally 1.5 mm².

•Orange color for easy identification.

•Designed for integration in PCBs with THT solder connections.

•Meets touch-safe protection standards including IP20 rating.

•Suitable for a variety of conductor types.

•Compatible with wire end ferrules per DIN standards.

Specifications:
