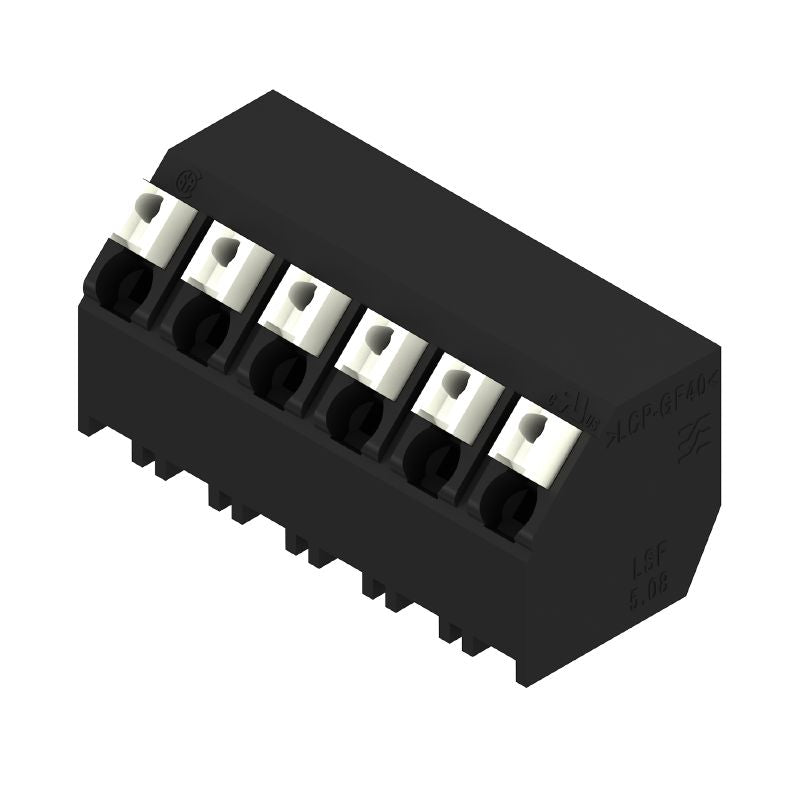

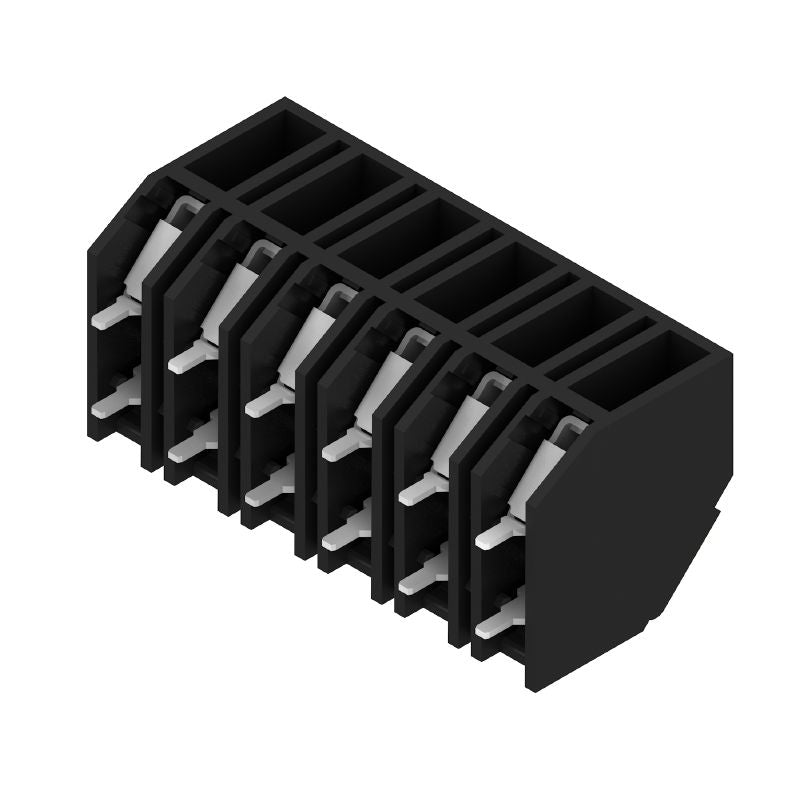

1888750000 - 5.08mm Black PCB Terminal, 6 Poles, PUSH IN, 135° Angle (Pack of 190)

1888750000 - 5.08mm Black PCB Terminal, 6 Poles, PUSH IN, 135° Angle (Pack of 190)

SKU: SKU: 1888750000   Download PDF

Select a Variant:
  • 1888750000 - 5.08mm Black PCB Terminal, 6 Poles, PUSH IN, 135° Angle (Pack of 190)
Qty:
Regular price Now $379.89   Web pricing policy
Regular price BEFORE   $0.00 Sale price Now $379.89 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information

Description:

Discover the LSF-SMT printed circuit board terminals, expertly crafted with a pitch of 508 mm and featuring a compact design with 6 poles arranged at a 135° angle Each solder pin measures 15 mm in length, ensuring reliable connections Finished in an elegant black color, this terminal boasts a user-friendly PUSH IN mechanism complete with an actuator It can handle wires with a maximum clamping range of 1.

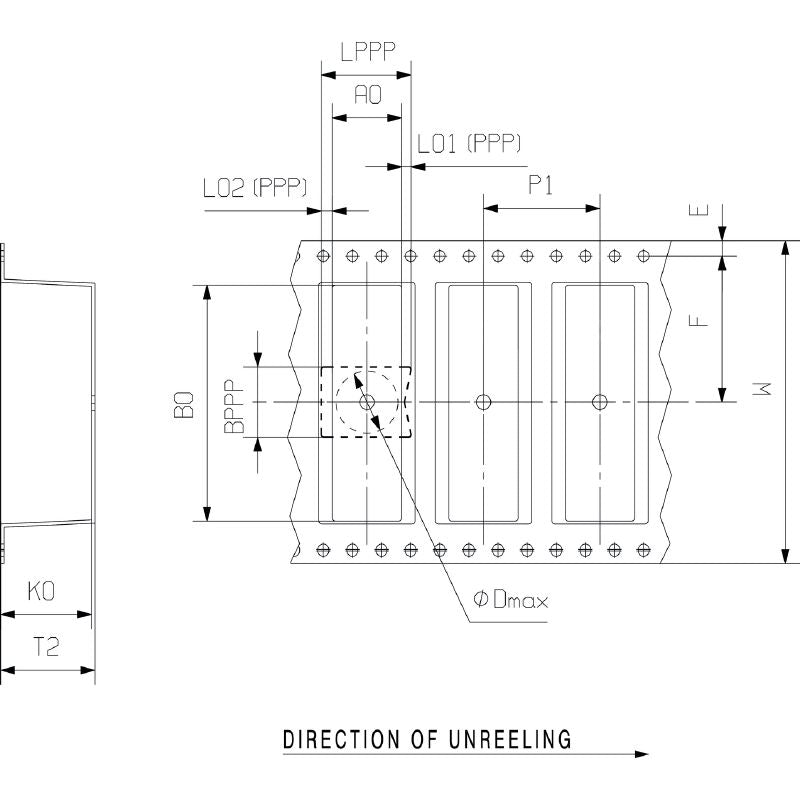

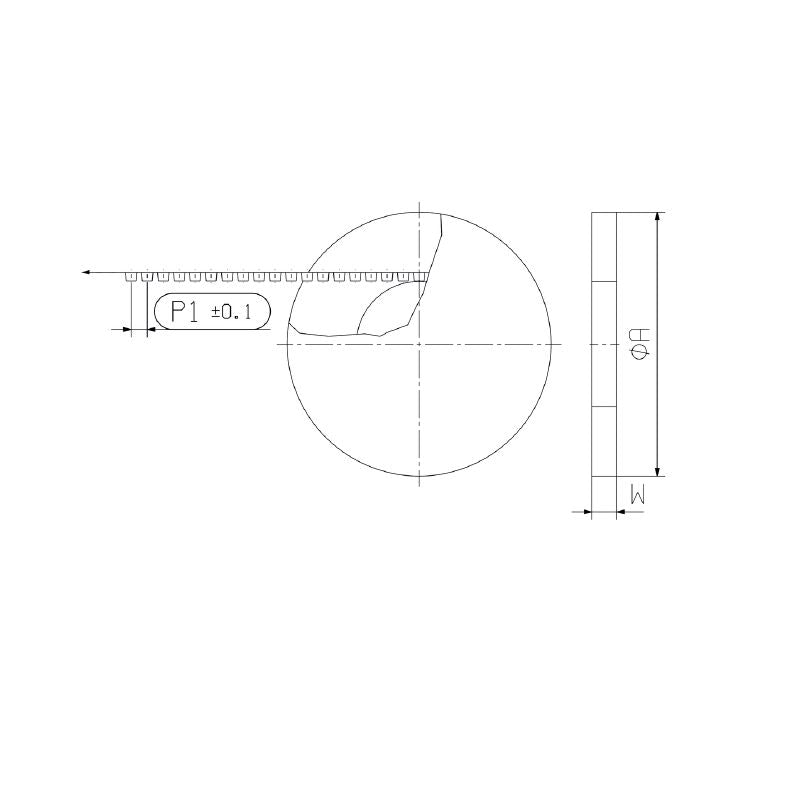

5 mm², making it a dependable choice for various applications Wrapped securely in tape, this terminal guarantees performance and stability.

Features and Benefits:

    •Conforms to RoHS standards.

    •Suitable for a wide clamping range from 0.13 mm² to 1.5 mm².

    •Push in wire connection method with an actuator for ease of use.

    •Mounts onto printed circuit boards with THT/THR solder connection.

Specifications:

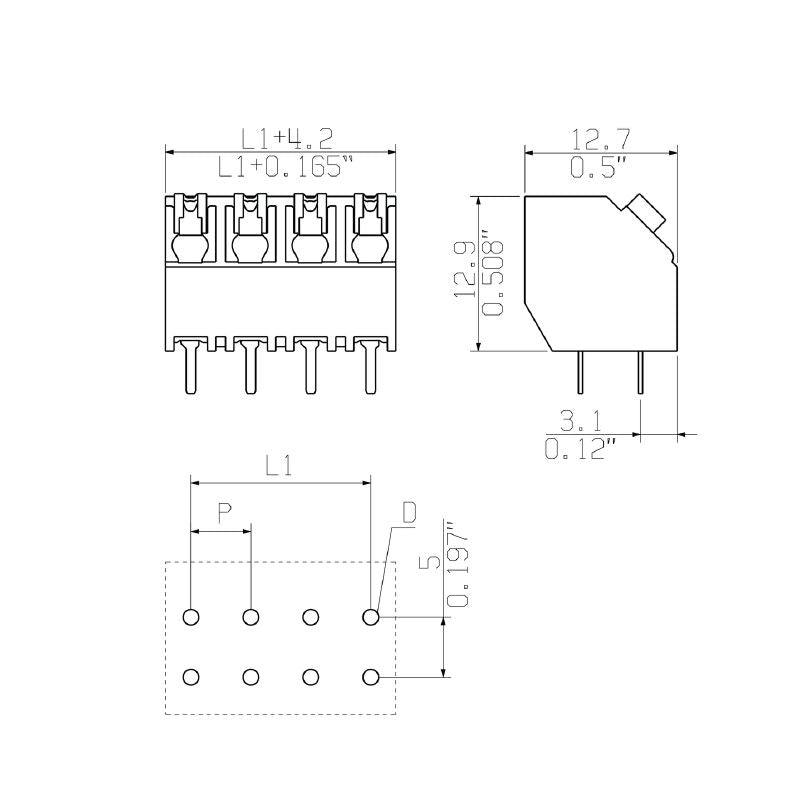

 Depth 12.7 mm
 Height 14.4 mm
 Width 29.6 mm
 Continuous operating temp., max 120 °C
 Rated voltage (IEC / UL) 500 V / 300 V

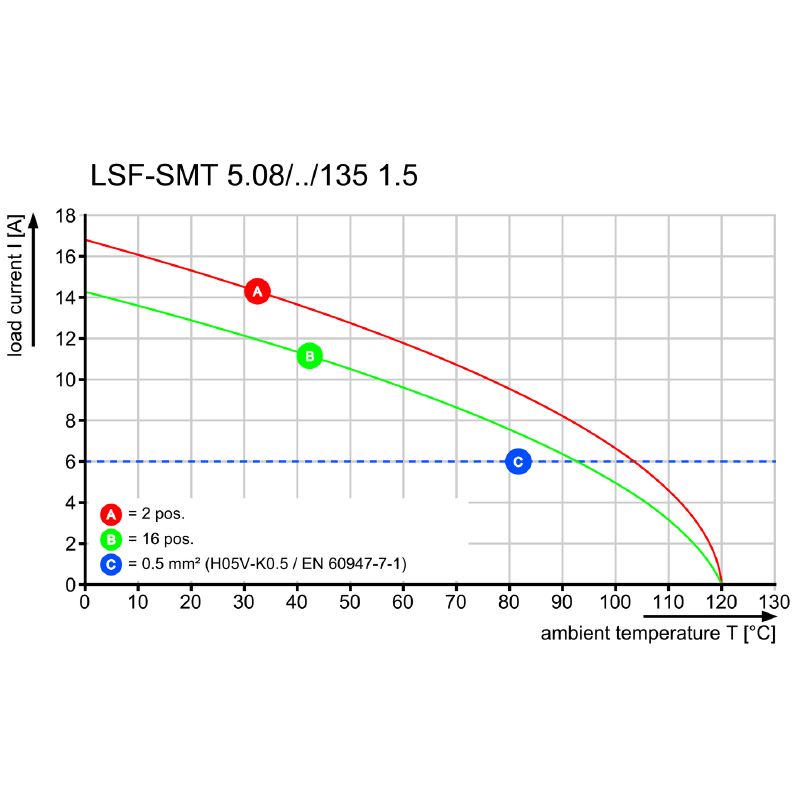

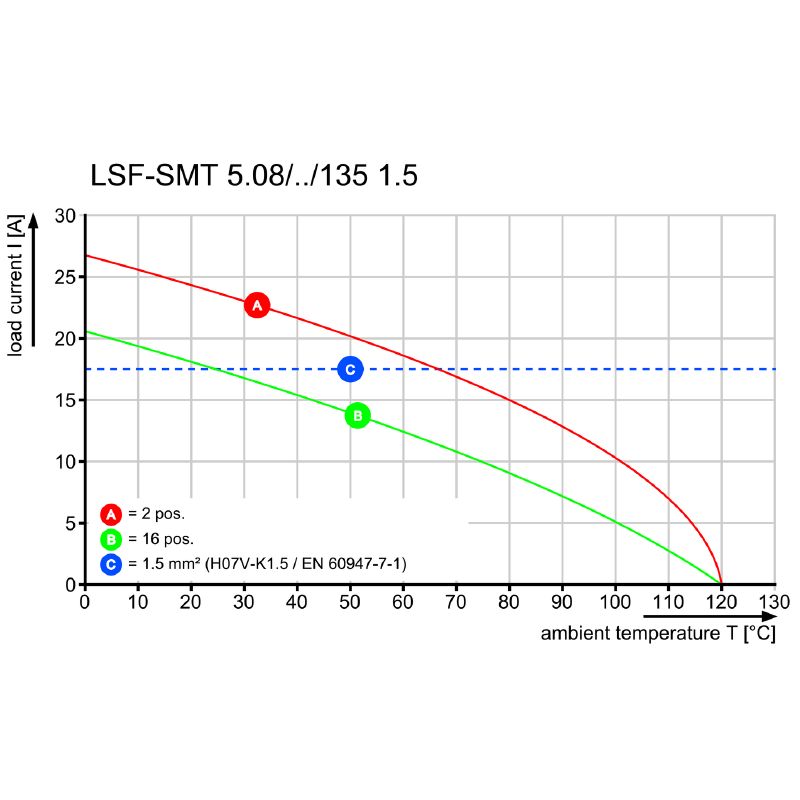

 Rated current / AWG range 17.5 A / AWG 28 - AWG 14
 Clamping range, min 0.13 mm²
 Clamping range, max 1.5 mm²
 Insulating material LCP GF
 Contact material Cu-alloy
 Protection degree IP20
 Solder pin dimensions 0.35 x 0.8 mm
