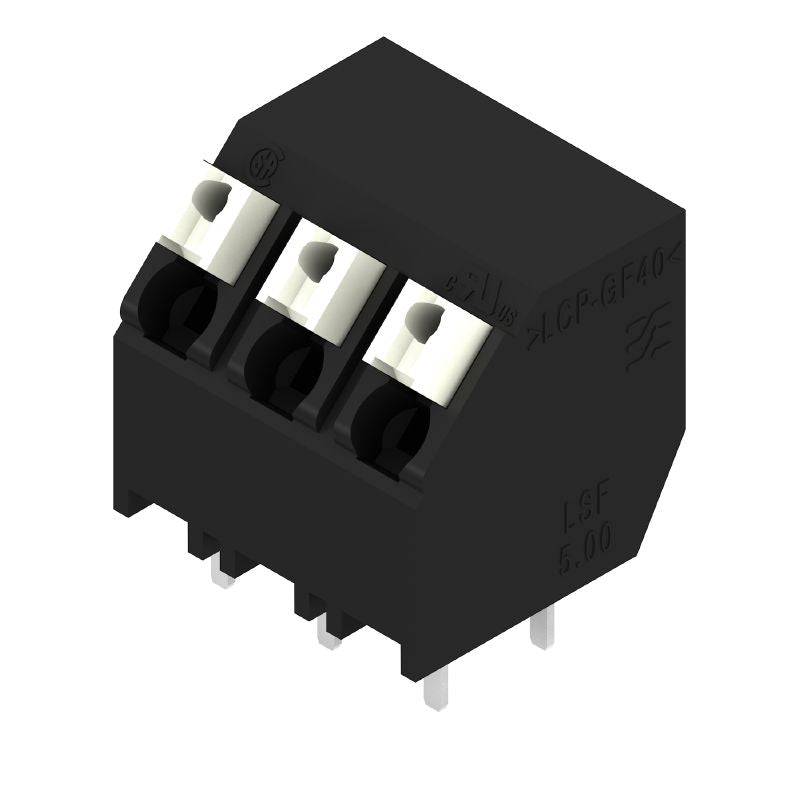

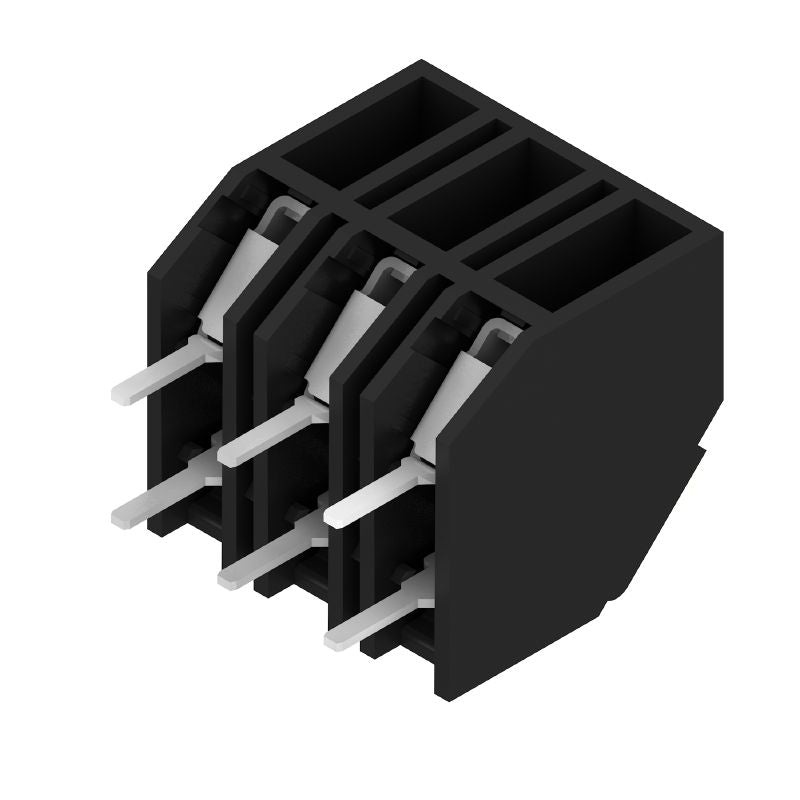

1888650000 - 5.00mm Circuit Board Terminal, 3-Pole, 135° Orientation (Pack of 190)

1888650000 - 5.00mm Circuit Board Terminal, 3-Pole, 135° Orientation (Pack of 190)

SKU: SKU: 1888650000   Download PDF

Select a Variant:
  • 1888650000 - 5.00mm Circuit Board Terminal, 3-Pole, 135° Orientation (Pack of 190)
Qty:
Regular price Now $236.45   Web pricing policy
Regular price BEFORE   $0.00 Sale price Now $236.45 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information

Description:

Discover the efficiency of these printed circuit board terminals, featuring a 500 mm pitch and a three-pole design with a 135-degree orientation Each terminal is equipped with a 35 mm solder pin length and is available in a classic black color Designed for ease of use, this model employs a PUSH IN mechanism that comes with an actuator and supports a maximum clamping range of 15 mm² This reliable product is RoHS compliant and bears the UL certification number E60693, ensuring it meets high-quality standards for safety and environmental considerations.

Features and Benefits:

    •PUSH IN wire connection method.

    •Solder pins designed for THT/THR solder connection.

    •Compliant with various environmental product standards including RoHS.

    •Safety protection according to DIN VDE standards.

Specifications:

 Depth 12.7 mm
 Height 16.4 mm
 Width 14.2 mm
 Continuous operating temperature, max 120 °C
 Rated voltage 500 V
 Rated current 17.5 A
 Clamping range 0.2 - 1.5 mm²
 Material LCP GF
 Storage temperature, min -40 °C
 Storage temperature, max 70 °C
