1876420000 - 5.08mm 3-Pole Terminal Block with PUSH IN Connection (Pack of 265)

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

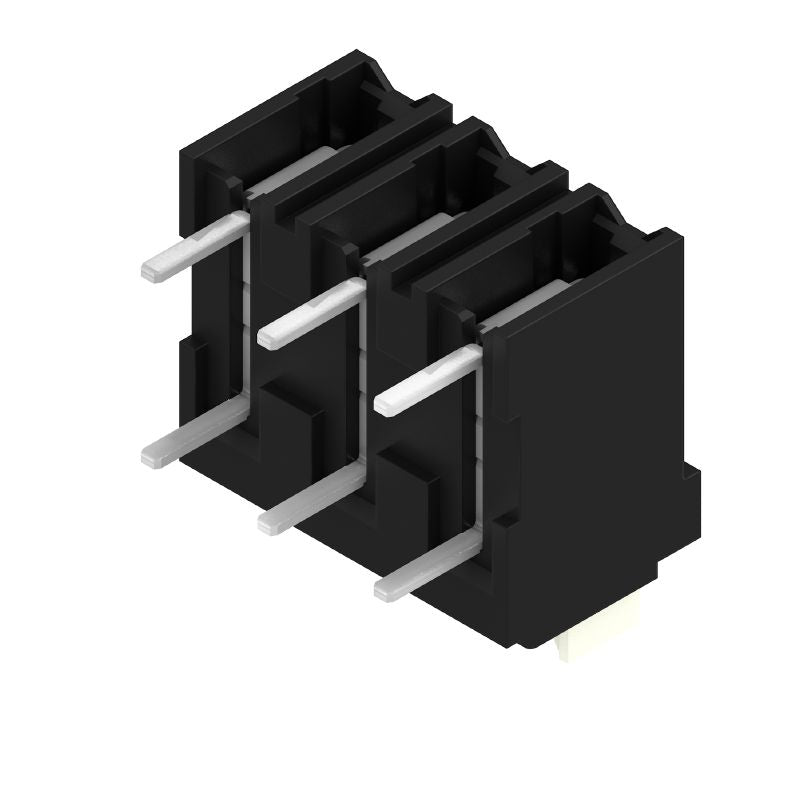

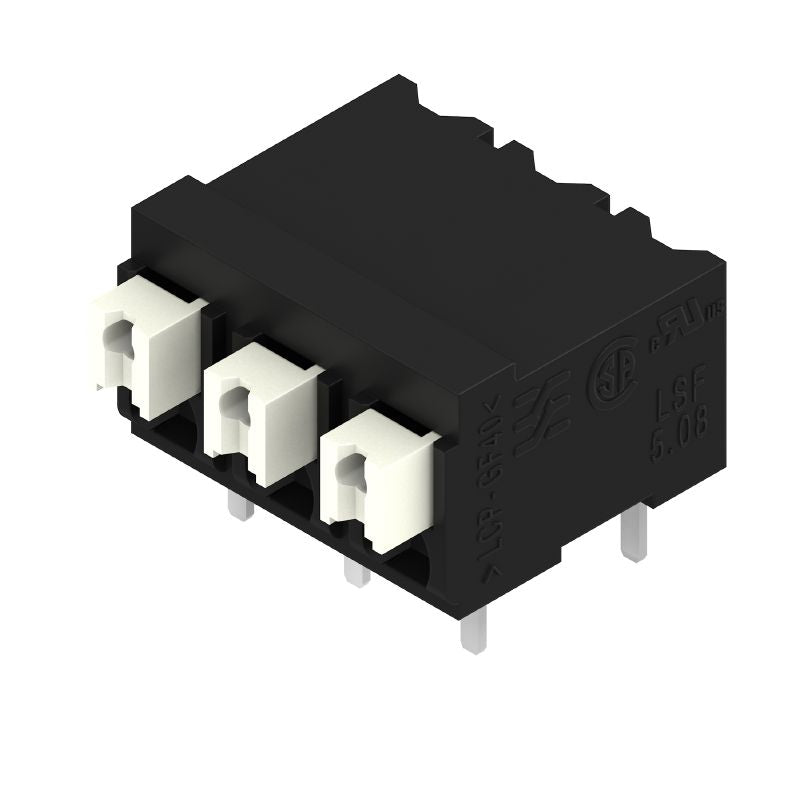

Introducing the LSF-SMT terminal blocks, tailored for printed circuit board applications These blocks feature a 508 mm pitch and include three poles arranged at a 90° angle Each terminal block is equipped with 35 mm long solder pins and employs a convenient PUSH IN connection method with a push button for ease of use They support wire sizes ranging from 02 mm² to 15 mm², making them compatible with both flexible and solid wires.

Offered in a sophisticated black color, these terminal blocks meet various installation needs while adhering to stringent safety and quality standards.

Features and Benefits:

•Compliant with RoHS and offers high safety standards.

•Push button for easy connection and disconnection.

•Designed with a compact and efficient layout for PCB integration.

Specifications:
