1876000000 - 3.81mm Black PCB Terminal, 10 Poles, Push-In Connections (Pack of 265)

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

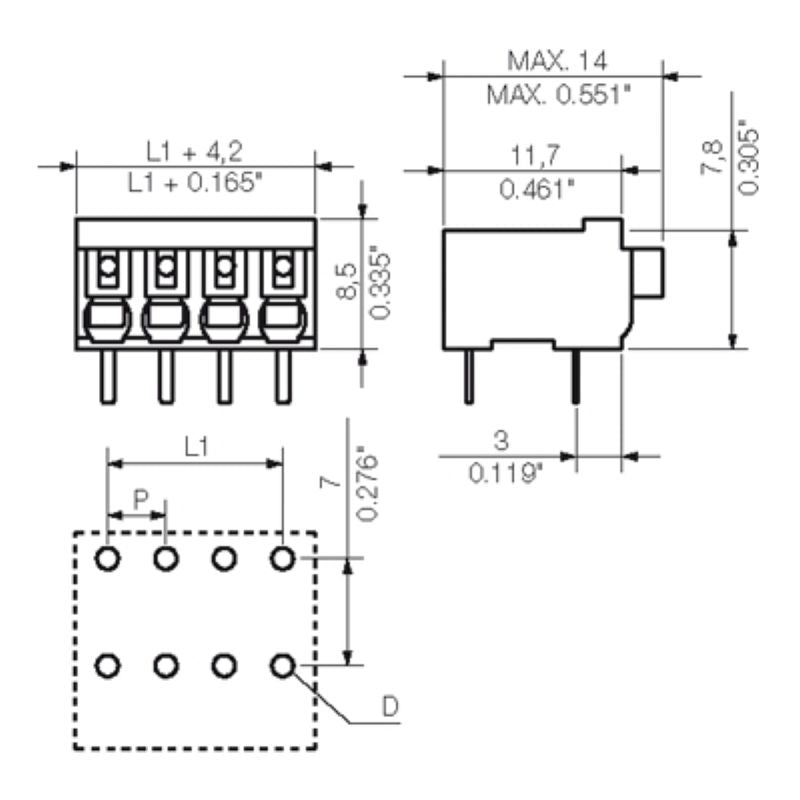

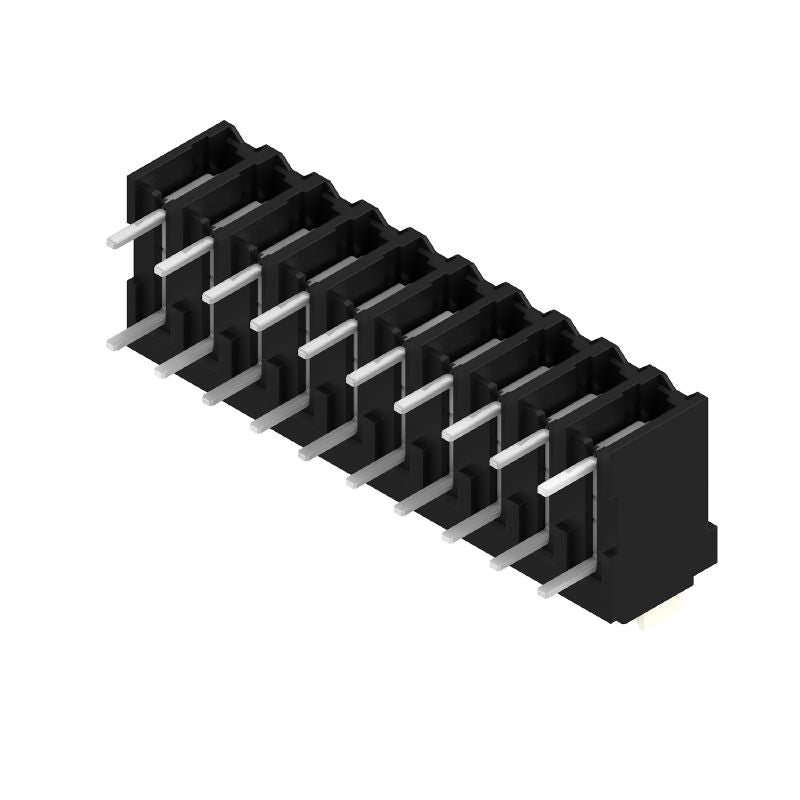

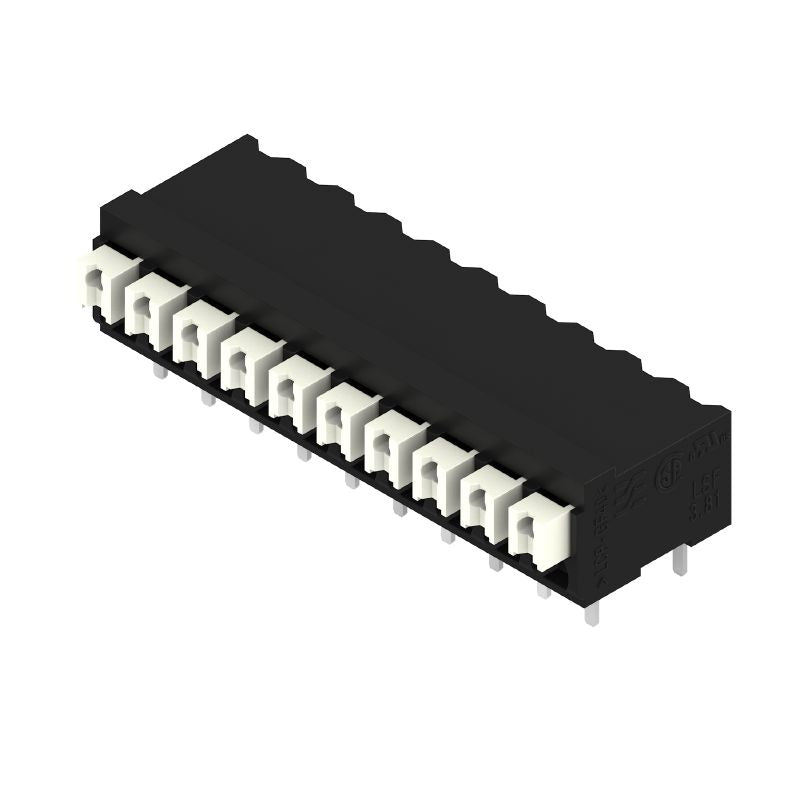

This set of printed circuit board terminals features a 381 mm pitch and includes 10 poles arranged at a 90-degree angle The solder pin extends to 35 mm in length and comes in a classic black finish Specifically engineered for push-in installations, these terminals utilize a convenient push button mechanism and can accommodate wire sizes up to 15 mm² They are conveniently packaged in tape, ensuring ease of handling and application.

Features and Benefits:

•RoHS compliant without exemptions.

•Touch-safe protection according to DIN VDE standards.

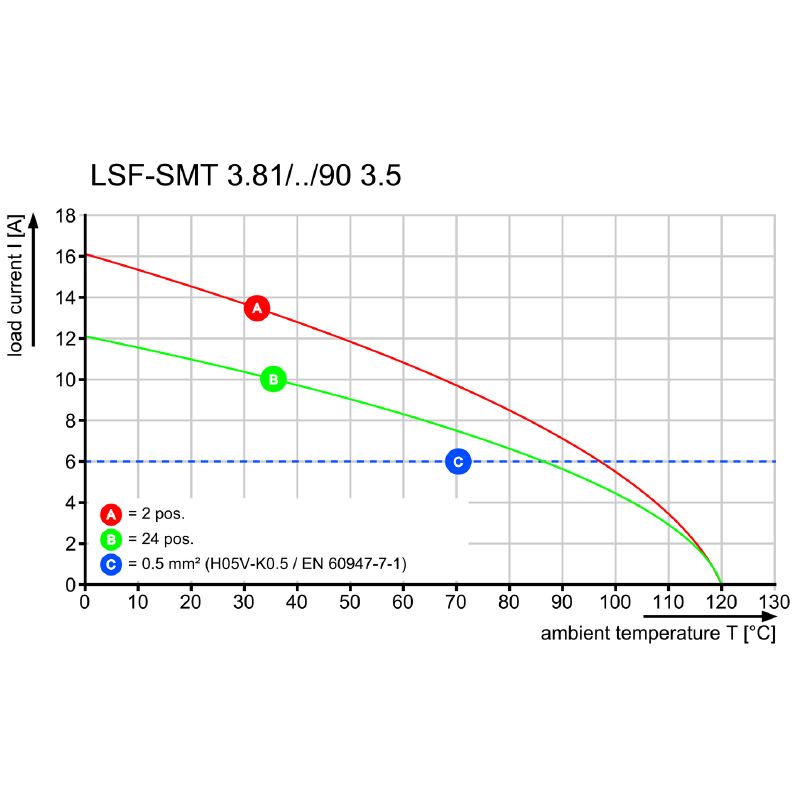

•Continuous operating temperature can reach up to 120 °C.

•Supports various conductor sizes and types.

•Compliant with international manufacturing standards and norms.

Specifications:
