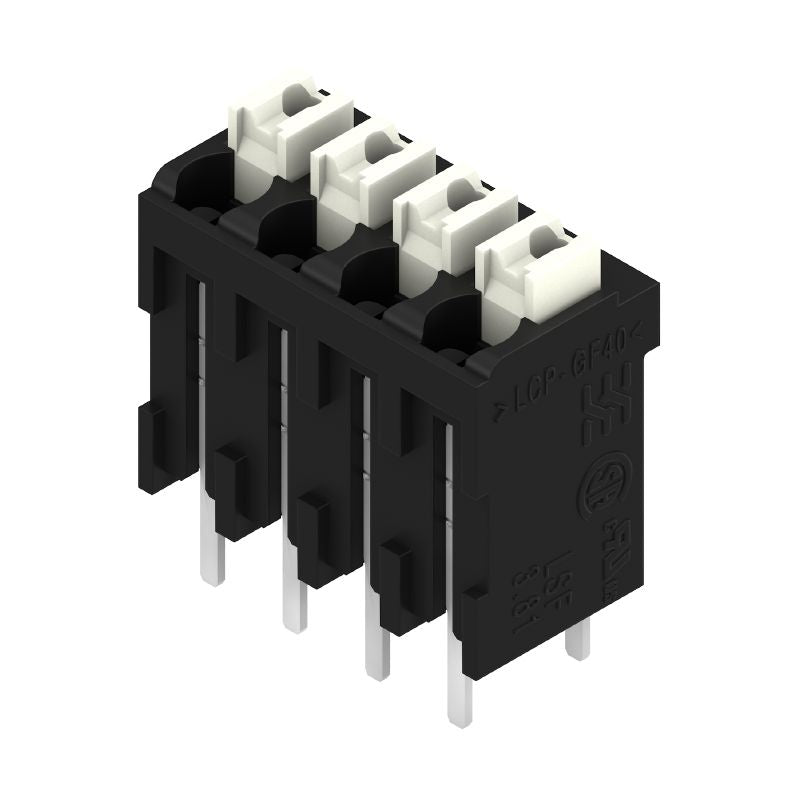

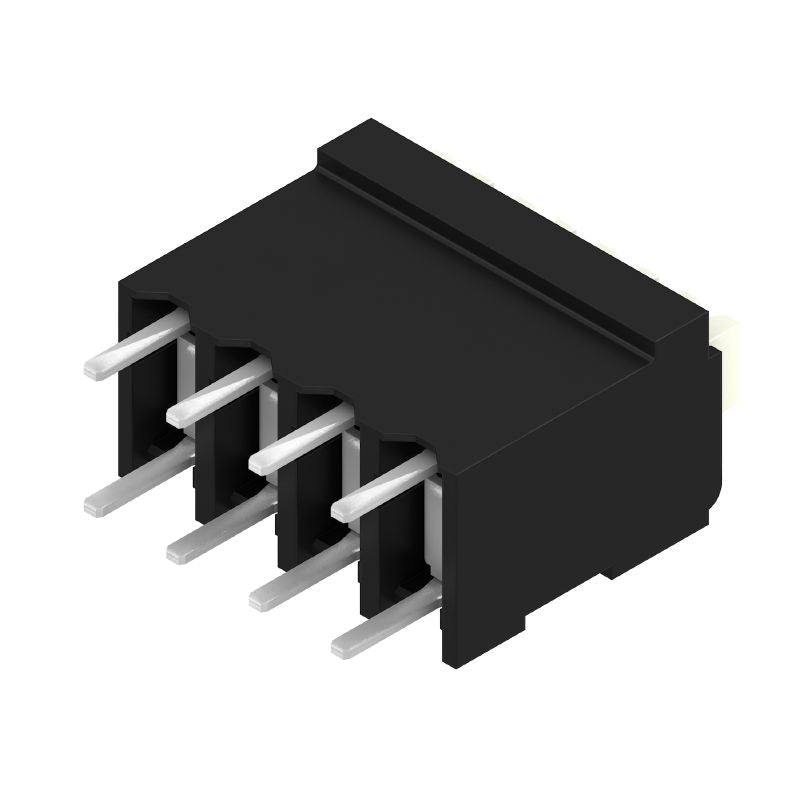

1875590000 - Black 4-Pole PCB Terminal, 3.81mm Spacing, 3.5mm Pins (Pack of 175)

1875590000 - Black 4-Pole PCB Terminal, 3.81mm Spacing, 3.5mm Pins (Pack of 175)

SKU: SKU: 1875590000   Download PDF

Select a Variant:
  • 1875590000 - Black 4-Pole PCB Terminal, 3.81mm Spacing, 3.5mm Pins (Pack of 175)
Qty:
Regular price Now $284.75   Web pricing policy
Regular price BEFORE   $0.00 Sale price Now $284.75 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information

Description:

Introducing a versatile printed circuit board terminal that simplifies PCB connections This terminal features a pole configuration with a spacing of 381 mm and includes four poles arranged in a 180° alignment The solder pin extends 35 mm in length and comes in an elegant black finish Equipped with a user-friendly PUSH IN mechanism, it efficiently accommodates wire sizes up to 15 mm² Packaged conveniently in tape format, this terminal ensures easy handling and assembly for all your electronic needs.

Features and Benefits:

    •PUSH IN wire connection method with actuator.

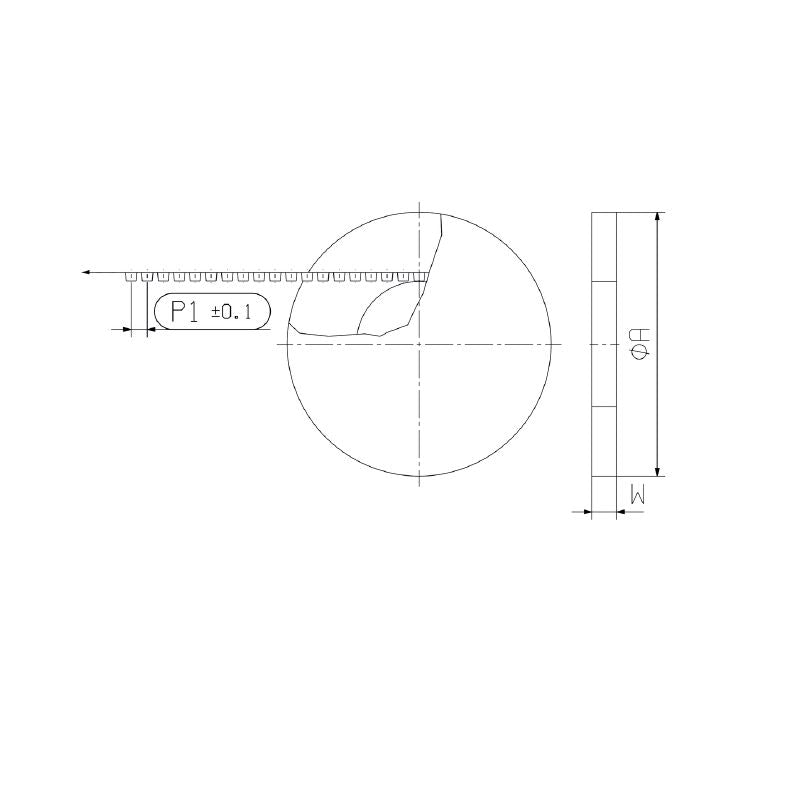

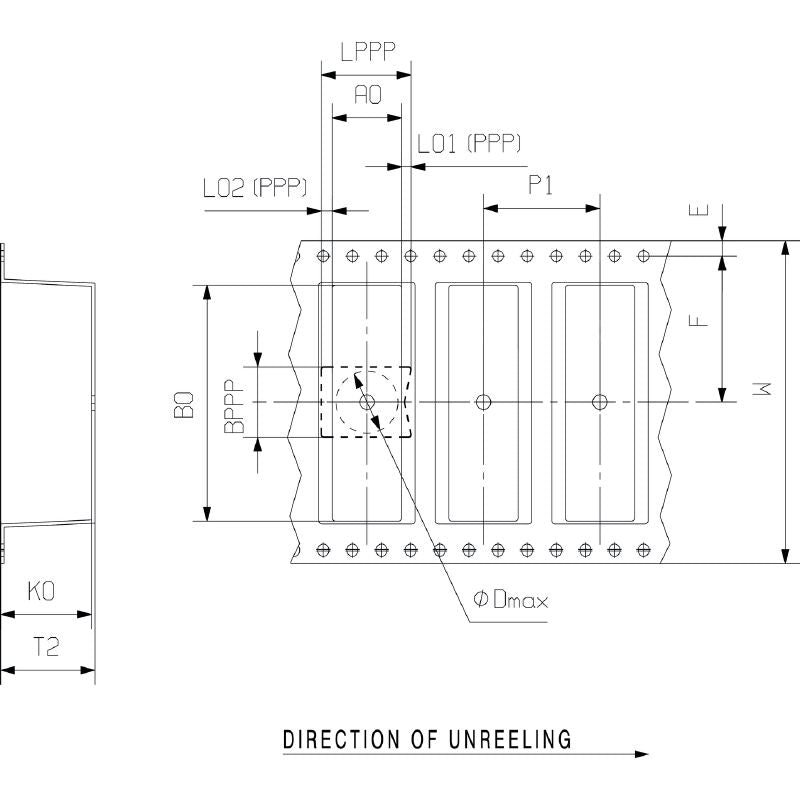

    •Packaging in tape for easy handling.

    •Suitable for various types of wire connections including solid and stranded conductors.

    •Ideal for use in printed circuit boards.

Specifications:

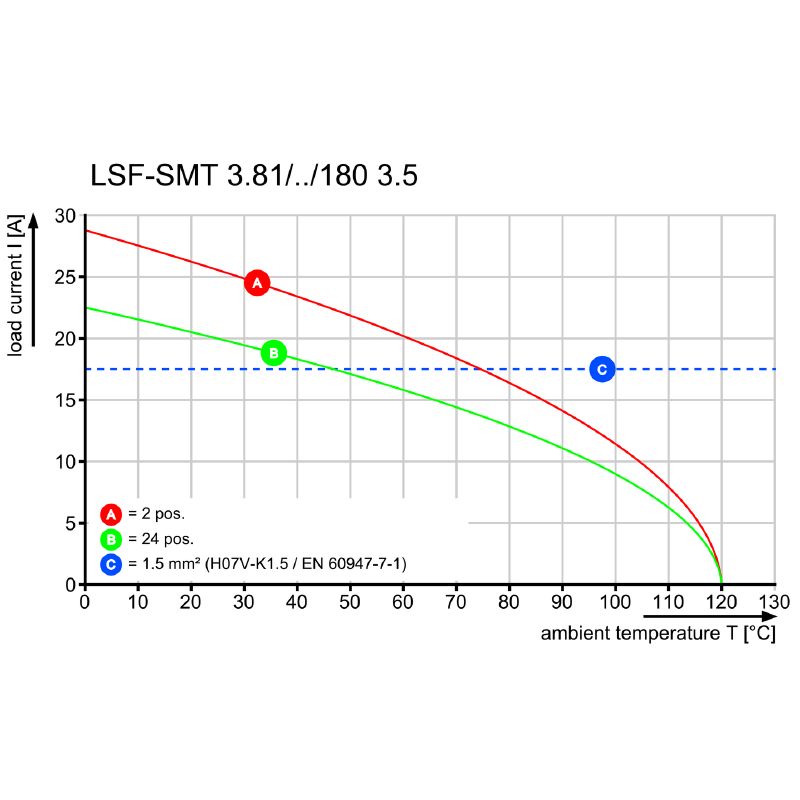

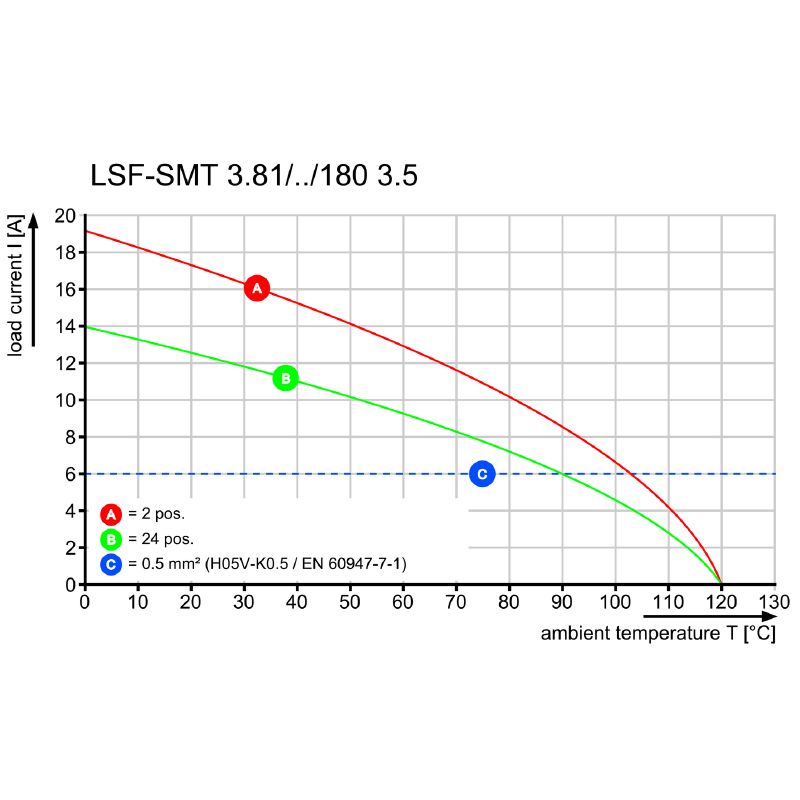

 IEC Voltage Rating 320 V / 17.5 A / 0.2 - 1.5 mm²
 UL Voltage Rating 300 V / 12 A / AWG 28 - AWG 14

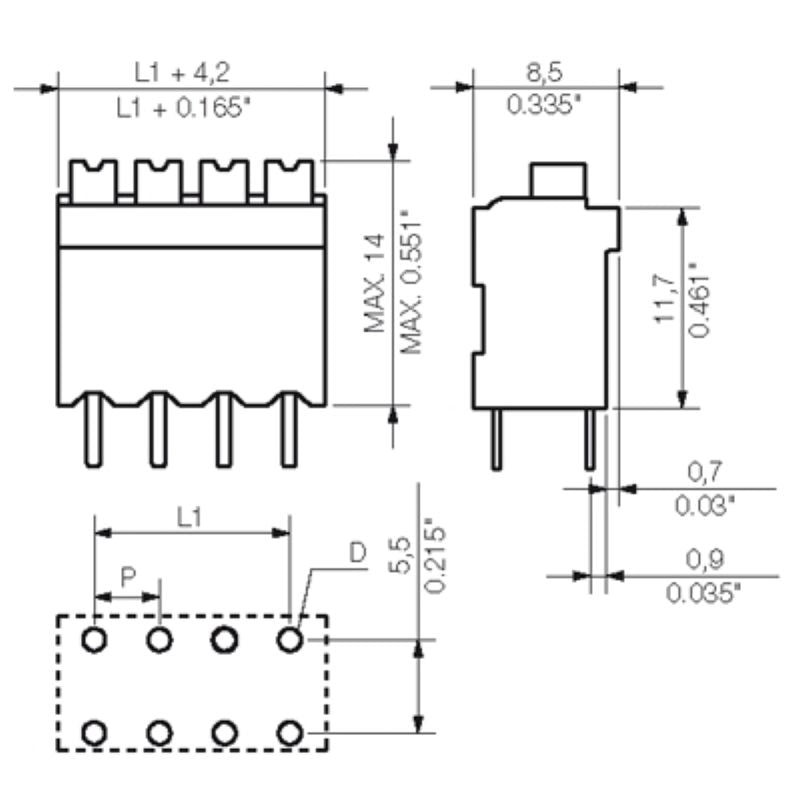

 Dimensions {'Depth': '7.8 mm', 'Height': '17.5 mm', 'Width': '15.63 mm'}
 Continuous Operating Temperature, max. 120 °C
 Clamping Range, max. 1.5 mm²
 Pitch 3.81 mm
 Number of Poles 4
 Insulating Material LCP GF
 Material Cu-alloy
 UL 94 Flammability Rating V-0
 IP Rating IP 20
