1874910000 - 6-Pole PCB Terminal, 1.5mm Solder Pin, RoHS Compliant (Pack of 265)

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

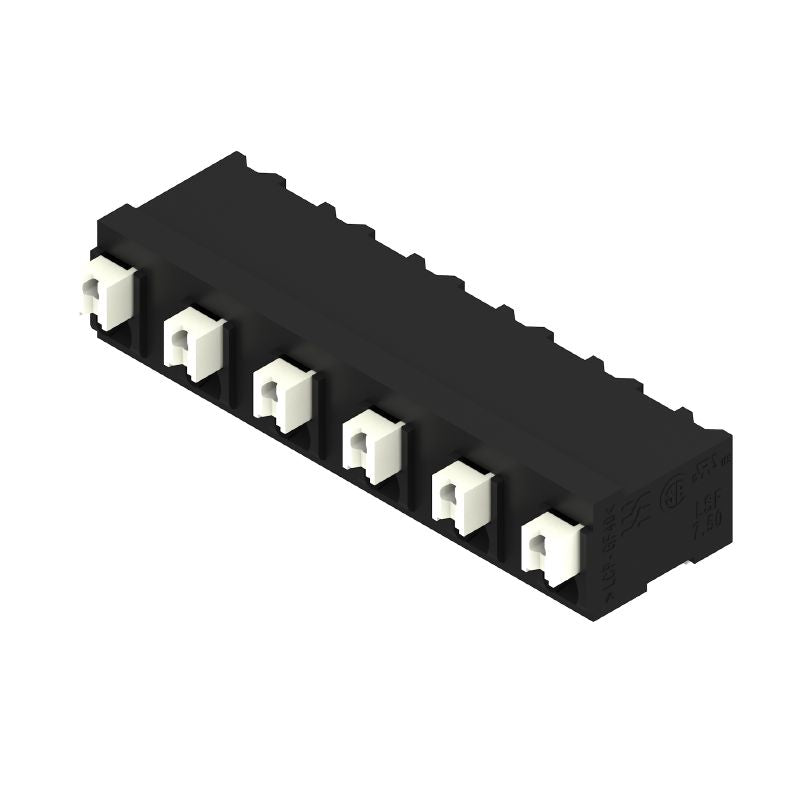

Introducing the LSF-SMT 750/06/90 15SN BK RL, an essential component for printed circuit board terminals This connector features a right-angle configuration with six poles and a solder pin length of 15 mm, ensuring secure and reliable connections It supports easy PUSH IN connections equipped with an actuator and can accommodate a maximum clamping capacity of 15 mm² Certified compliant with RoHS standards, this component also comes with UL and cURus certifications, marked by certificate number E60693.

It meets IEC specifications of 800 V and 175 A, as well as UL standards of 300 V and 12 A, with compatible wire connections ranging from AWG 28 to AWG 14 Measuring 1475 mm in depth, 10 mm in height, and 417 mm in width, it has a lightweight design, weighing just 6008 grams This component combines functionality and compliance, making it an ideal choice for your circuit board needs.

Features and Benefits:

•PUSH IN wire connection method.

•Mounts onto the PCB with THT/THR solder connection.

•90° conductor outlet direction.

•DesigneCompatibility with fine-wired conductors.

Specifications:
