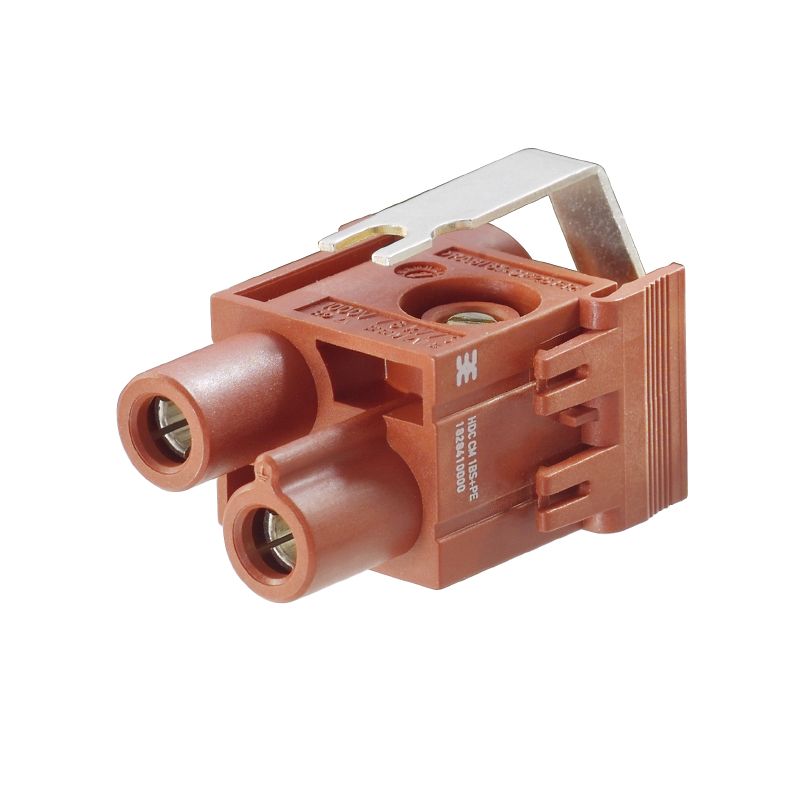

1828410000 - HDC Heavy-Duty Connector, 34mm Depth, Polyamide, V-0 Rated (Pack of 5)

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Experience the reliability of heavy-duty connectors equipped with the HDC insert and ConCept module With a net weight of 39776 g, these connectors boast dimensions of 34 mm in depth, 45 mm in height, and 228 mm in width Crafted from reinforced polyamide with glass fiber, they also meet RoHS compliance standards Notably, they possess a V-0 flammability rating, conforming to UL 94 regulations for safety and durability.

Features and Benefits:

•Compliant with RoHS.

•Insulation resistance of 10^12 Ω.

•Low smoke as per DIN EN 45545-2.

•Capable of carrying a rated current of 82 A.

•Rated impulse voltage of 6 kV.

•Rated voltage of 1,000 V.

•Female type connection.

•Screw connection type.

Specifications:
