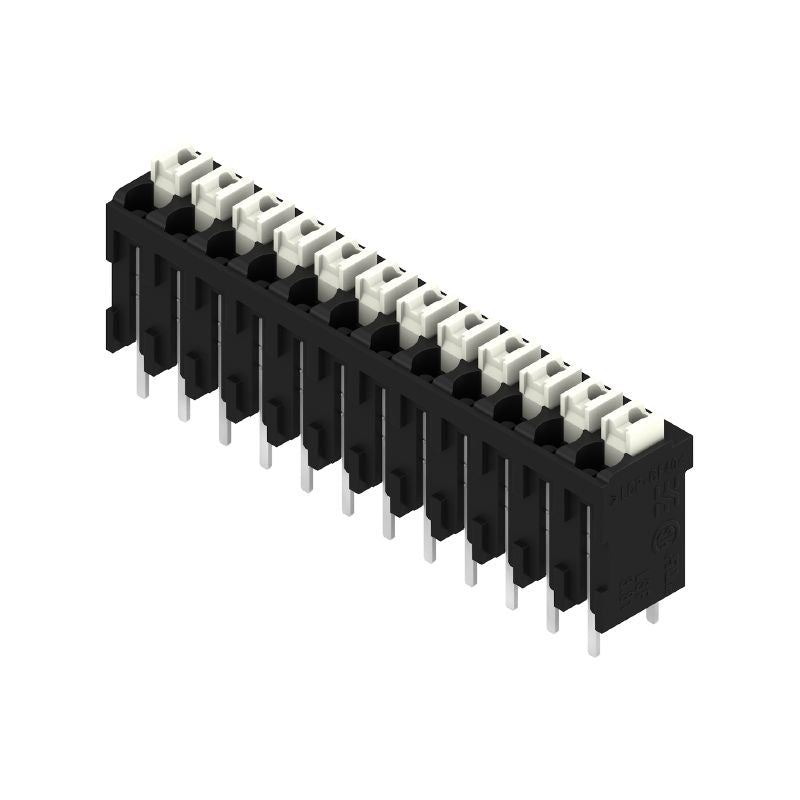

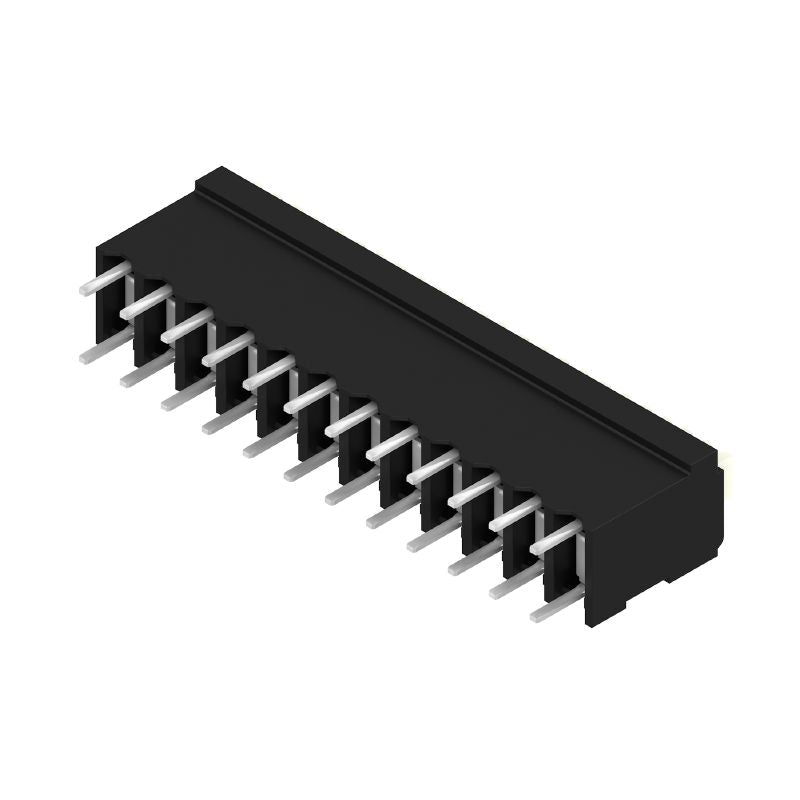

1825920000 - 3.81mm Black PCB Terminal with 12 Poles, 180° Angle (Pack of 12)

1825920000 - 3.81mm Black PCB Terminal with 12 Poles, 180° Angle (Pack of 12)

SKU: SKU: 1825920000   Download PDF

Select a Variant:
  • 1825920000 - 3.81mm Black PCB Terminal with 12 Poles, 180° Angle (Pack of 12)
Qty:
Regular price Now $37.07   Web pricing policy
Regular price BEFORE   $0.00 Sale price Now $37.07 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information

Description:

Discover the reliable 381 mm printed circuit board terminals, featuring a 12-pole configuration at a 180° angle Each terminal includes a robust 35 mm long solder pin and comes in a classic black color With a PUSH IN actuator mechanism, these terminals support a maximum clamping range of 15 mm² For your convenience, they are conveniently packaged in a tube, making them perfect for easy storage and transport.

Features and Benefits:

    •Compliant with RoHS.

    •Suitable for various wire connection methods including PUSH IN with actuator.

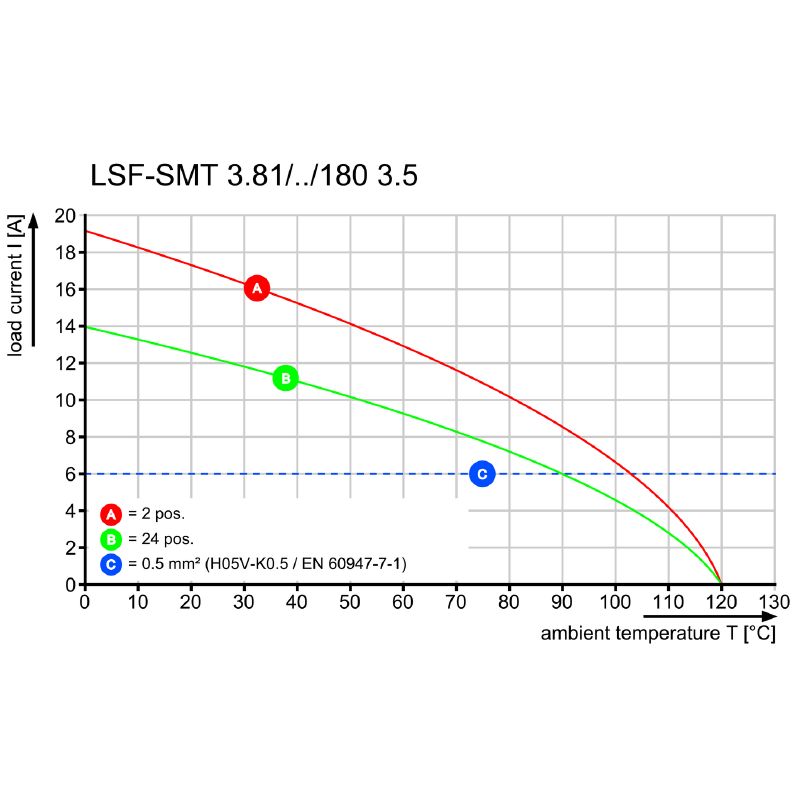

    •Applicable for temperatures ranging from -50 °C to 120 °C.

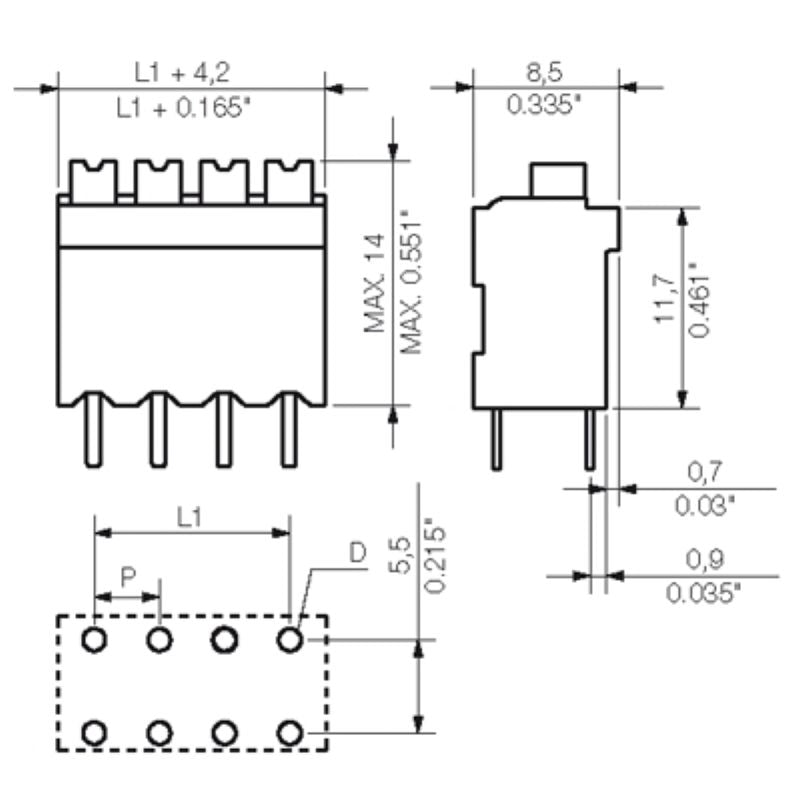

Specifications:

 Depth 7.8 mm
 Height 17.5 mm
 Width 46.11 mm
 Continuous operating temperature, max. 120 °C
 Rated voltage (IEC) 320 V / 300 V
 Rated current 17.5 A
 Pitch 3.81 mm
 Number of poles 12
 Solder pin dimensions 0.35 x 0.8 mm
 Insulating material LCP GF
 Protection degree IP20
 Volume resistance 1.60 mΩ
 Clamping range, min. 0.13 mm²
 Clamping range, max. 1.5 mm²
 UL 94 flammability rating V-0
