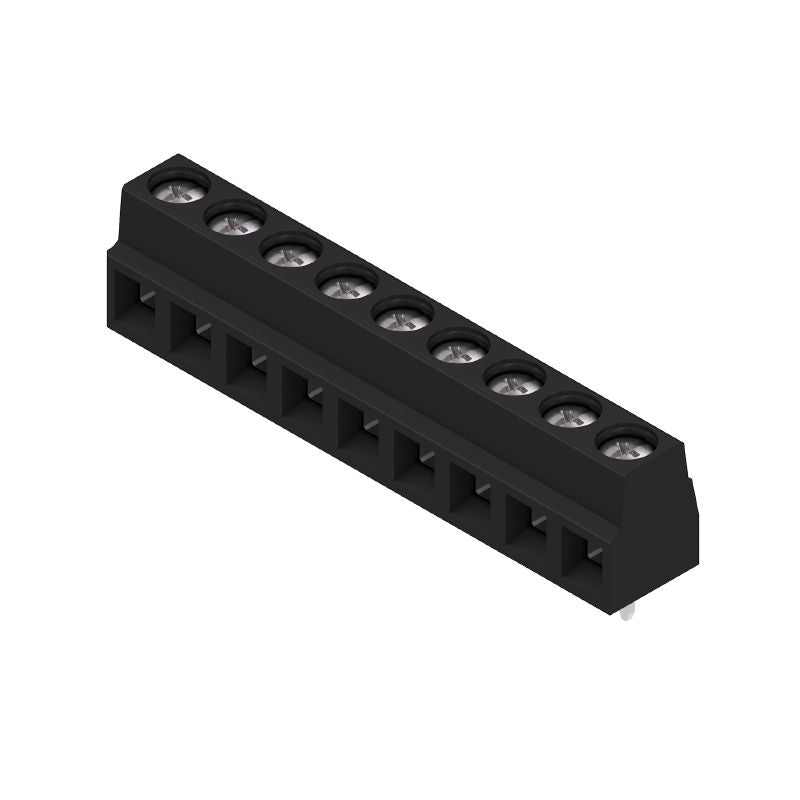

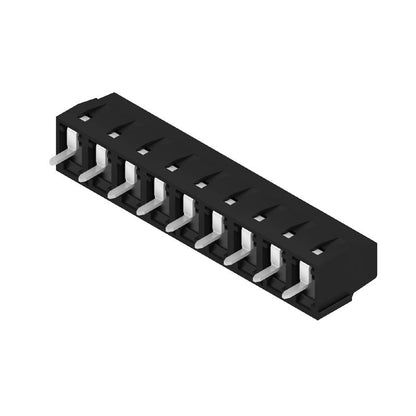

1810920000 - 5.08mm 9-Pole Circuit Board Terminals with 3.5mm Pins (Pack of 100)

1810920000 - 5.08mm 9-Pole Circuit Board Terminals with 3.5mm Pins (Pack of 100)

SKU: SKU: 1810920000   Download PDF

Select a Variant:
  • 1810920000 - 5.08mm 9-Pole Circuit Board Terminals with 3.5mm Pins (Pack of 100)
Qty:
Regular price Now $183.88   Web pricing policy
Regular price BEFORE   $0.00 Sale price Now $183.88 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information

Description:

Introducing a reliable component featuring 9-pole printed circuit board terminals, designed with a 508 mm pitch It boasts a solder pin length of 35 mm, packaged conveniently in a box With a clamping range accommodating wires up to 15 mm², this terminal type guarantees strong performance and meets UL and IEC standards for quality and safety.

Features and Benefits:

    •Conforms to RoHS and UL standards.

    •Clamping yoke connection for secure wire management.

    •Suitable for various conductor sizes from 0.08 to 1.5 mm².

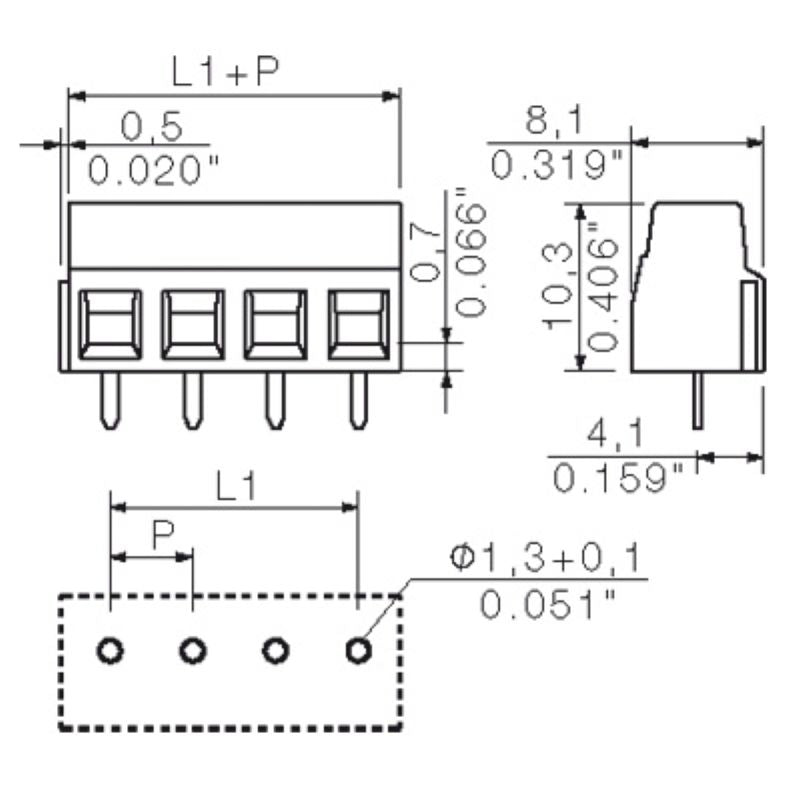

Specifications:

 Depth 8.1 mm
 Height 13.8 mm
 Width 46.22 mm
 Rated voltage 630 V / 300 V

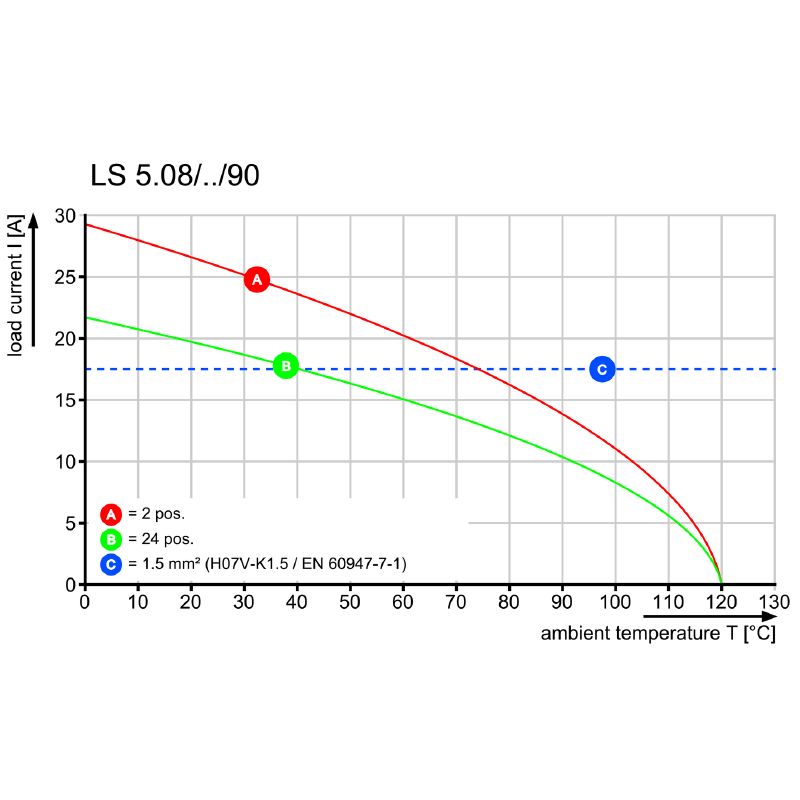

 Rated current 17.5 A / 15 A
 Material Wemid (PA)
 Color black
 Rated impulse voltage 4 kV
 Operating temperature -50 °C to 120 °C
