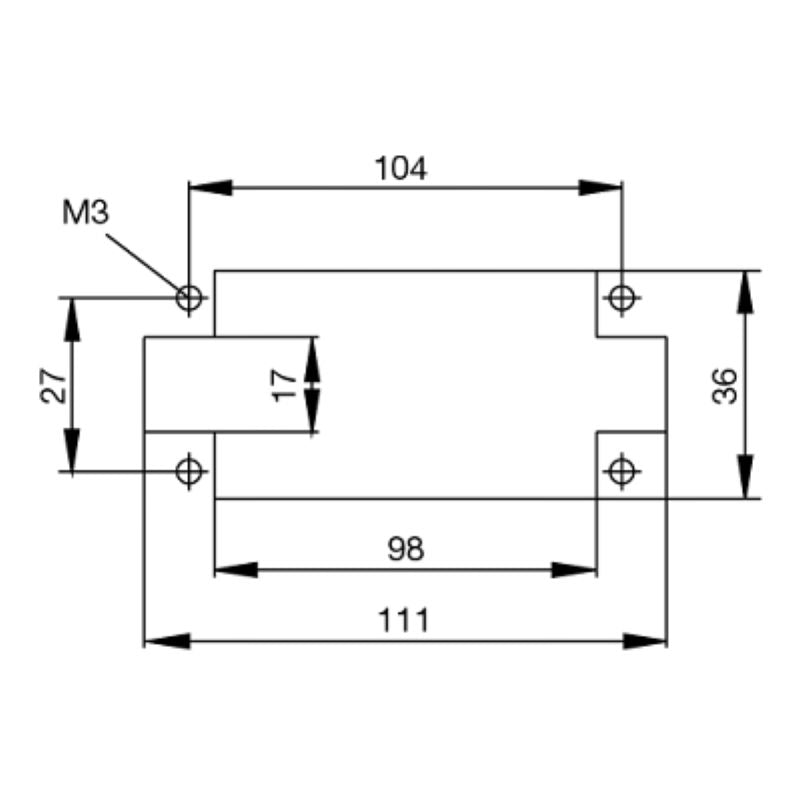

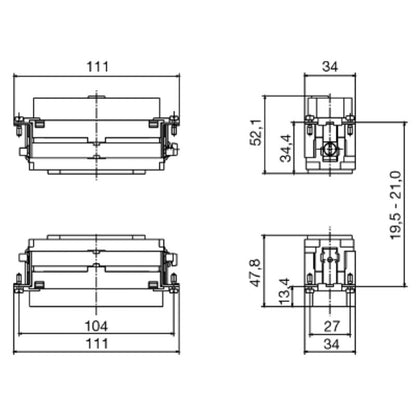

1790030000 - 12-Pole Male Insert, 690V, 100A, 111mm Deep

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

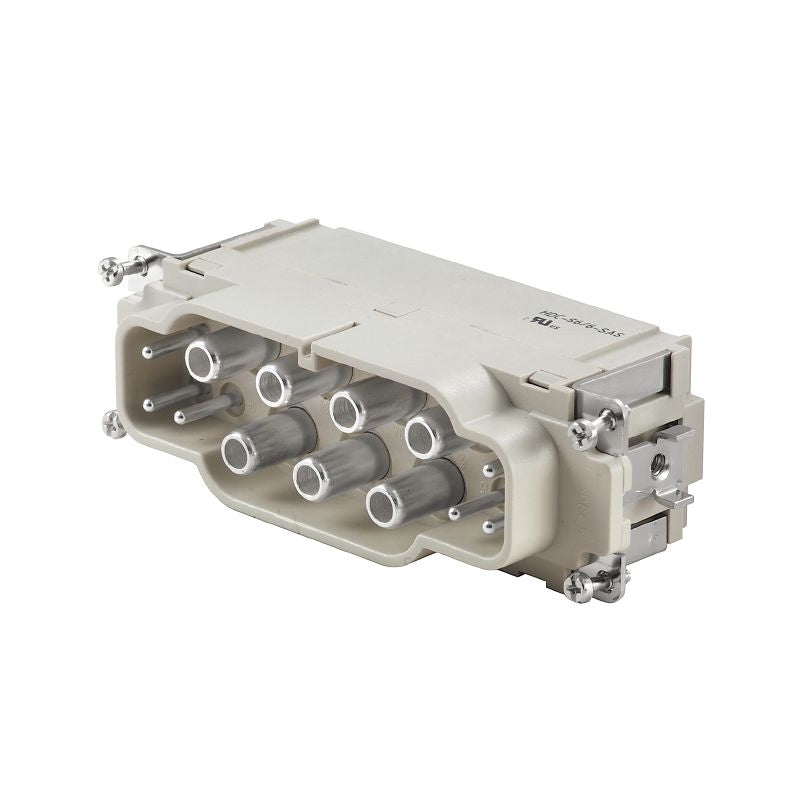

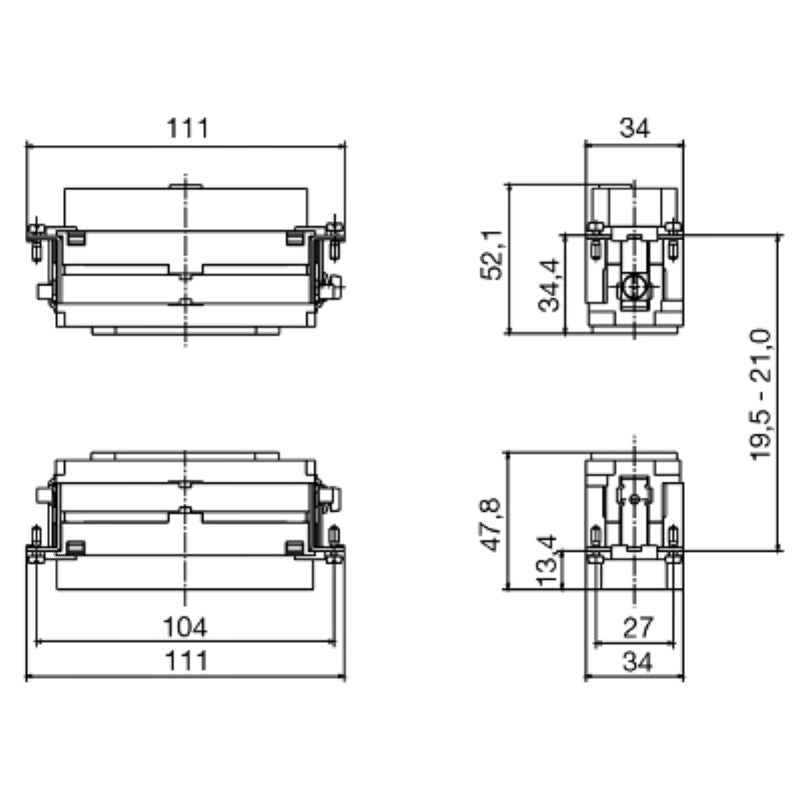

Introducing the HDC S6 6 SAS, a high-performance male insert engineered for robust electrical applications With a maximum operating voltage of 690 V and a current rating of 100 A, this insert features 12 poles and utilizes an axial screw connection for reliable installation Its compact dimensions of 111 mm depth, 478 mm height, and 34 mm width make it ideal for various setup requirements Weighing in at just 286 grams, it’s easy to handle and install.

This product meets RoHS standards and is designed to function across a wide temperature range of -40 °C to 125 °C, ensuring adaptability in multiple environments.

Features and Benefits:

•Compliant with RoHS compliance status.

•Made from copper alloy.

•Low smoke according to DIN EN 45545-2.

•Rated for 500 plugging cycles.

•Resistance against various chemicals including acetone, petrol, and lye.

•IP-rated for environmental resilience.

Specifications:
