1769320000 - 5.08mm 20-Pole Orange PCB Terminal with 3.5mm Pins (Pack of 20)

1769320000 - 5.08mm 20-Pole Orange PCB Terminal with 3.5mm Pins (Pack of 20)

SKU: SKU: 1769320000   Download PDF

Select a Variant:
  • 1769320000 - 5.08mm 20-Pole Orange PCB Terminal with 3.5mm Pins (Pack of 20)
Qty:
Regular price Now $150.85   Web pricing policy
Regular price BEFORE   $0.00 Sale price Now $150.85 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information

Description:

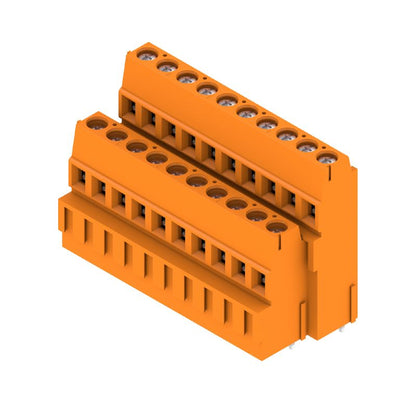

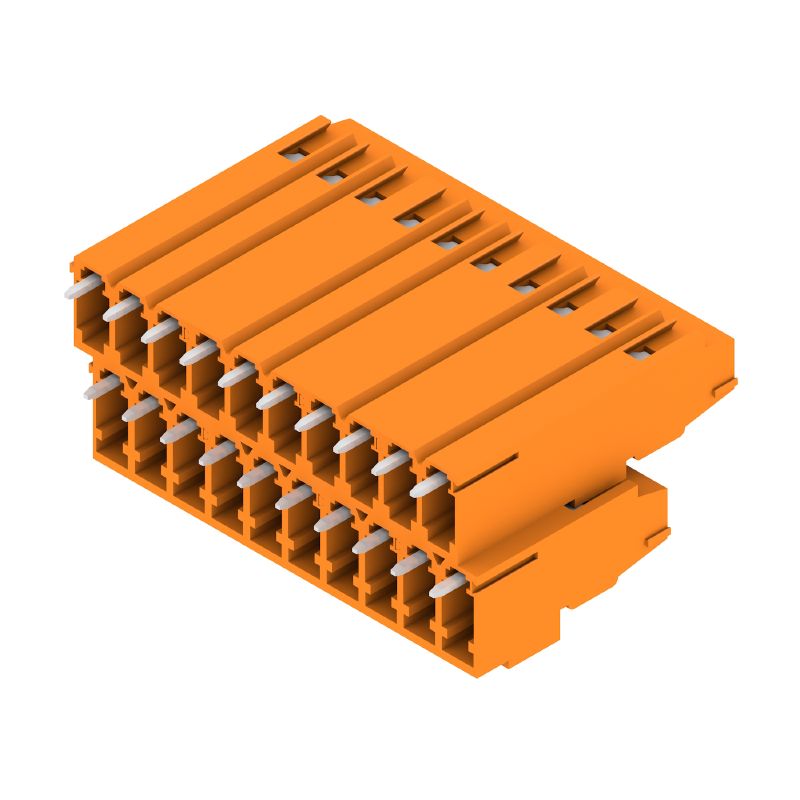

Discover the reliability of our 508 mm wide printed circuit board terminals, designed with 20 poles set at a 90° angle Each terminal features tin-coated solder pins measuring 35 mm in length With an eye-catching orange color, they utilize a clamping yoke connection that accommodates a maximum wire gauge of 25 mm² Plus, you can trust in their quality, as this product meets RoHS compliance standards.

Features and Benefits:

    •Clamping yoke connection method.

    •THT solder connection for mounting onto PCB.

    •Touch-safe protection according to DIN VDE.

    •Compliant with standard regulations.

    •Insulating material is Wemid (PA).

Specifications:

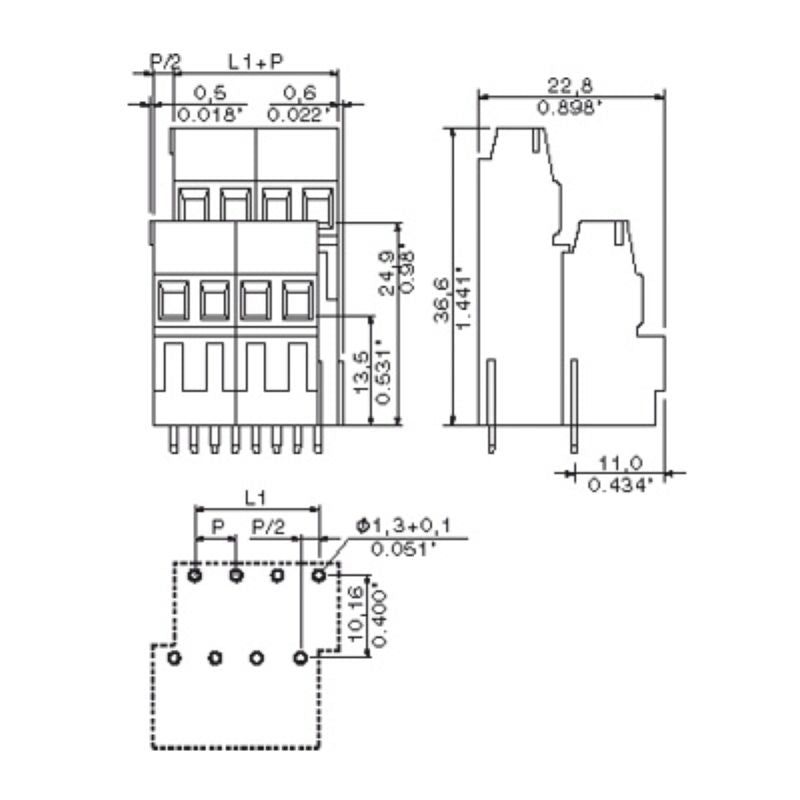

 Depth 22.8 mm
 Height 40.1 mm
 Width 54.34 mm
 Net weight 39.5 g
 Rated voltage 630 V / 300 V

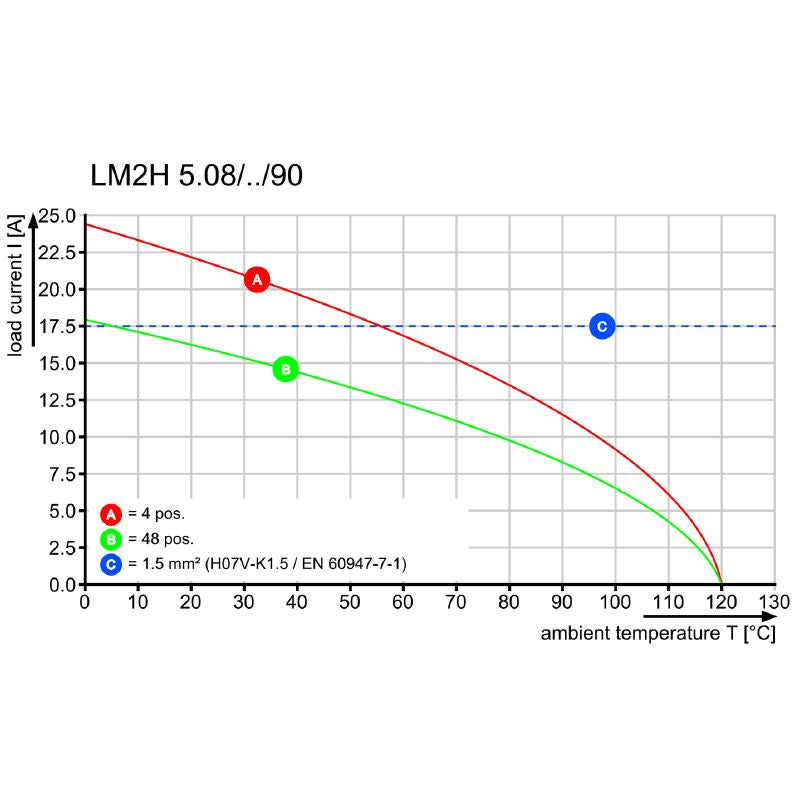

 Rated current 17.5 A / 15 A
 Insulation material group I
 Pitch 5.08 mm
 Protection degree IP20
 Storage temperature range -40 °C to 70 °C
 Operating temperature range -50 °C to 120 °C
