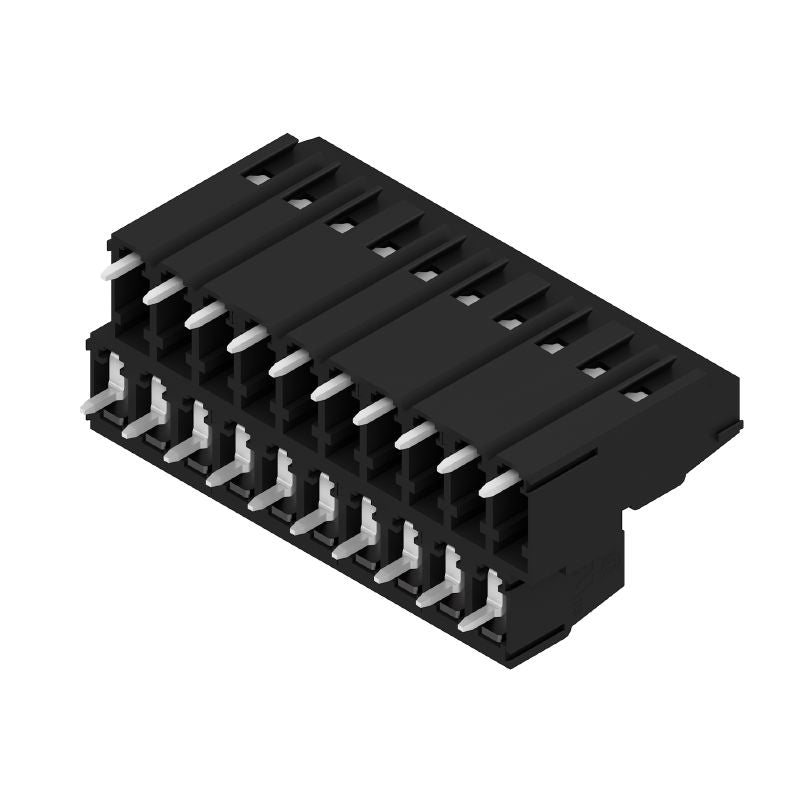

1769160000 - 5.08 mm PCB Terminal, 20 Poles, 90-Degree Angle (Pack of 20)

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

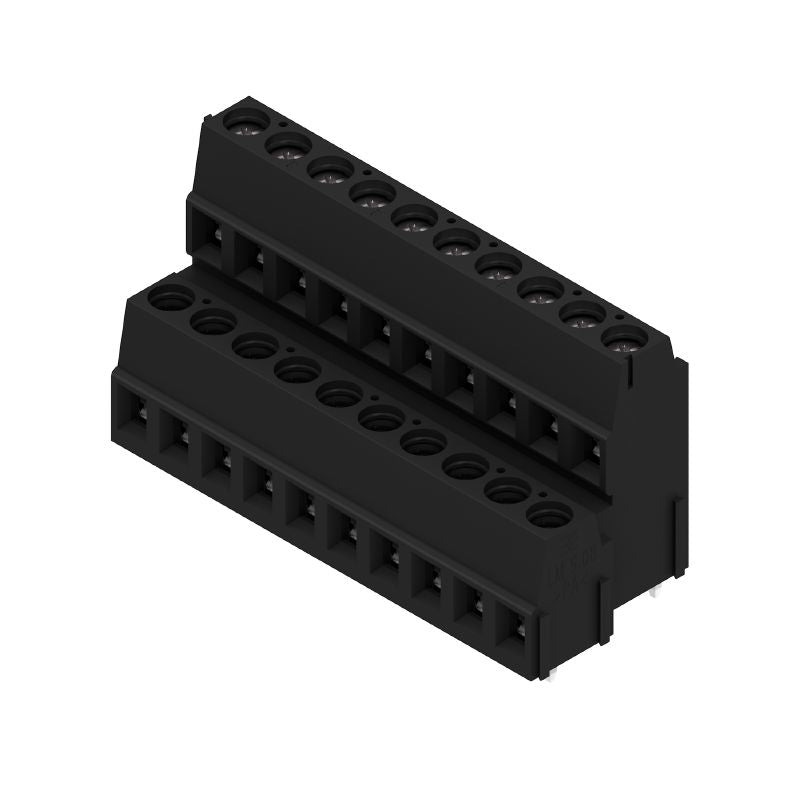

Introducing the LM2N 508/20/90 35SN terminal connector, specifically crafted for printed circuit boards This reliable component features a 508 mm pitch and accommodates up to 20 poles With its practical 90-degree angle and a solder pin length of 35 mm, it comes complete with a protective black tinning The clamping yoke connection method supports a maximum clamping capacity of 25 mm² Adhering to industry standards, this connector is rated for IEC 630V / 17.

5A and UL 300V / 15A, compatible with wire gauges ranging from AWG 24 to AWG 14, making it an excellent choice for various electrical applications.

Features and Benefits:

•Compliant with RoHS and has no SVHC above 0.1 wt%.

•Compatible with both fine-wired and solid conductors.

•Designed for THT solder connections.

•Touch-safe protection per DIN VDE standards.

•Suitable for a variety of conductor connection types.

Specifications:
