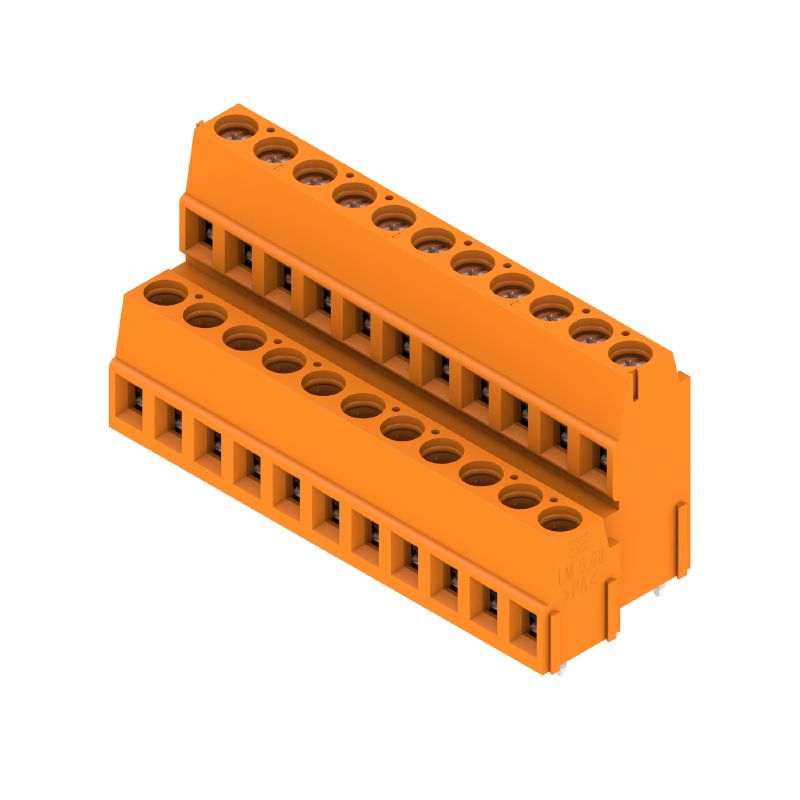

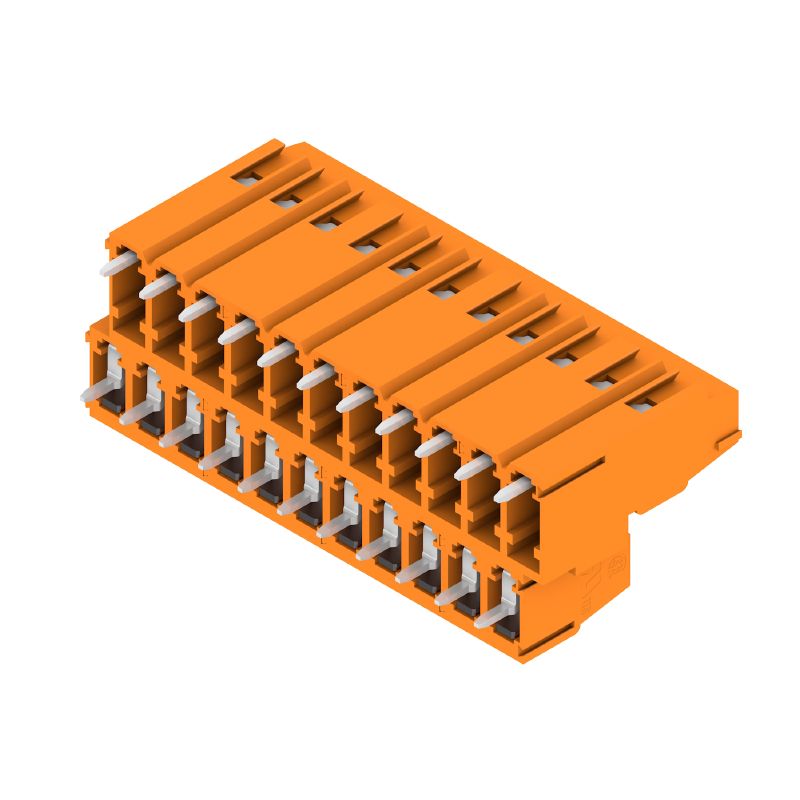

1768940000 - 5.08mm PCB Terminal, 22 Poles, RoHS Compliant, 90°C +120°C (Pack of 20)

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Introducing the LM2N 508/22/90 35SN OR BX, a reliable terminal designed for printed circuit boards This component features a 508 mm pitch and can support up to 22 poles in a 90-degree design With a solder pin length of 35 mm and a clamping range capable of accommodating conductors up to 25 mm², this terminal is both versatile and efficient It adheres to RoHS standards and comes packaged in a protective box, ensuring compliance without any exemptions.

Its temperature operating range spans from -50 °C to +120 °C, making it suitable for a wide variety of applications.

Features and Benefits:

•Clamping yoke connection method.

•THT solder connection for PCB mounting.

•Touch-safe protection classified under IP 20.

•Safe from finger touch according to DIN VDE standards.

•Designed for a maximum of 48 adjacent poles per row.

Specifications:
