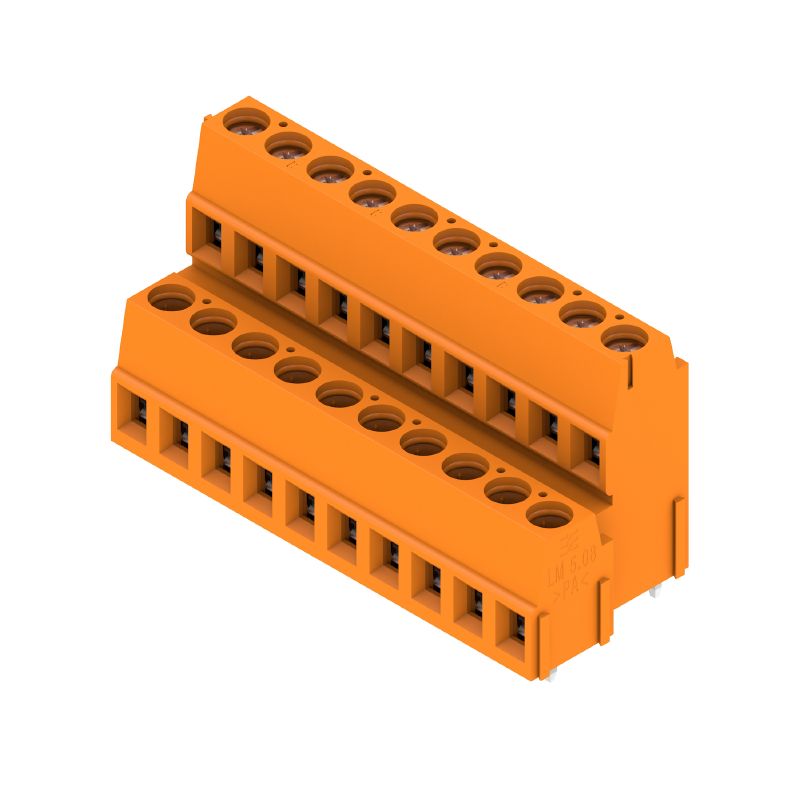

1768930000 - 5.08mm 20-Pole PCB Terminal with 3.5mm Solder Pins (Pack of 20)

1768930000 - 5.08mm 20-Pole PCB Terminal with 3.5mm Solder Pins (Pack of 20)

SKU: SKU: 1768930000   Download PDF

Select a Variant:
  • 1768930000 - 5.08mm 20-Pole PCB Terminal with 3.5mm Solder Pins (Pack of 20)
Qty:
Regular price Now $113.13   Web pricing policy
Regular price BEFORE   $0.00 Sale price Now $113.13 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information

Description:

Introducing the LM2N 508/20/90 35SN OR BX, a highly efficient printed circuit board terminal engineered for reliable connections With a compact design featuring a 508 mm pitch and 20 poles arranged at a 90° angle, this terminal is built for optimal performance It boasts a solder pin length of 35 mm, treated with a tin finish for enhanced durability, all presented in a vibrant orange color The terminal utilizes a clamping yoke for secure connections and supports a maximum clamping range of 2.

5 mm², ensuring it meets rigorous standards within its sturdy packaging.

Features and Benefits:

    •Clamping yoke connection for secure wiring.

    •Compatible with a variety of wire cross-sections from 0.2 mm² to 2.5 mm².

    •Certified according to RoHS and UL standards.

    •Touch-safe protection as per DIN VDE standards.

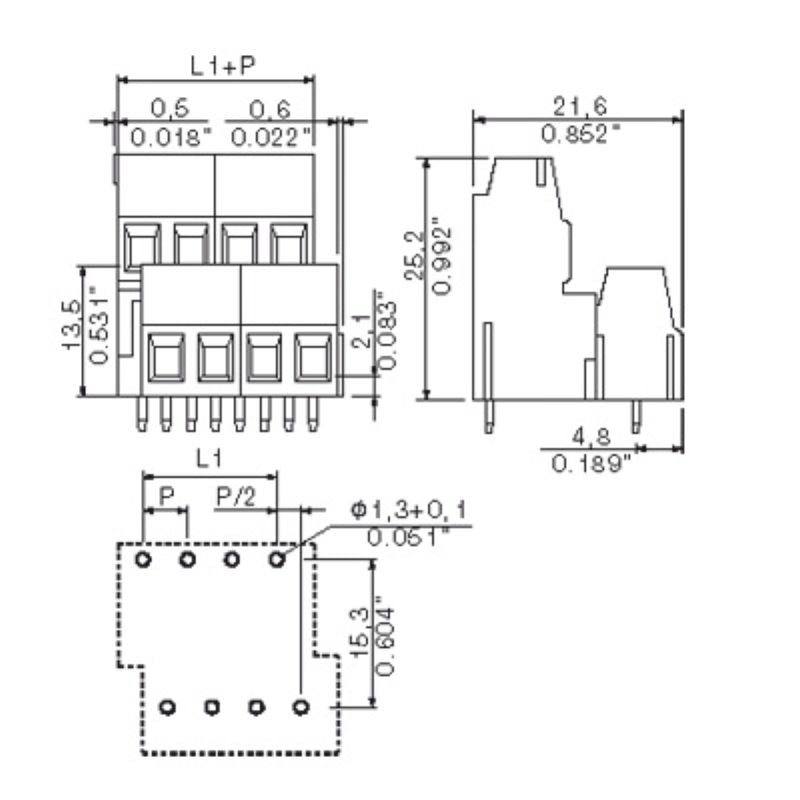

Specifications:

 Depth 21.6 mm
 Height 28.7 mm
 Width 54.34 mm
 Net weight 30 g
 Working voltage 630 V / 300 V

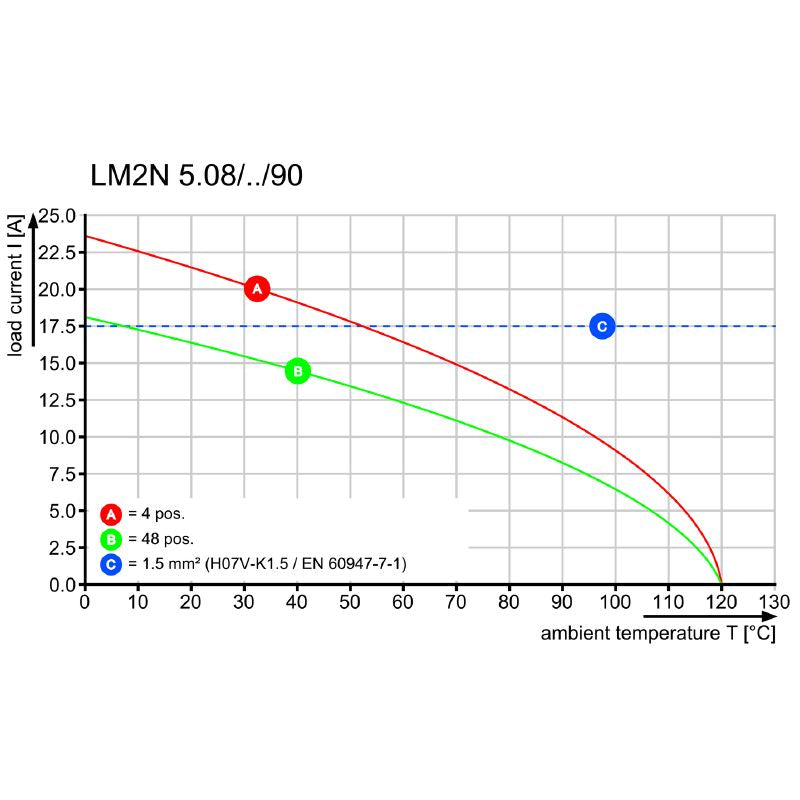

 Rated current 17.5 A / 15 A
 Screwdriver blade standard DIN 5264
 Clamping screw M 2.5
 Material Wemid (PA)
 Color orange
 Protection degree IP20
 Operating temperature -50 °C to 120 °C
 Storage temperature -40 °C to 70 °C
