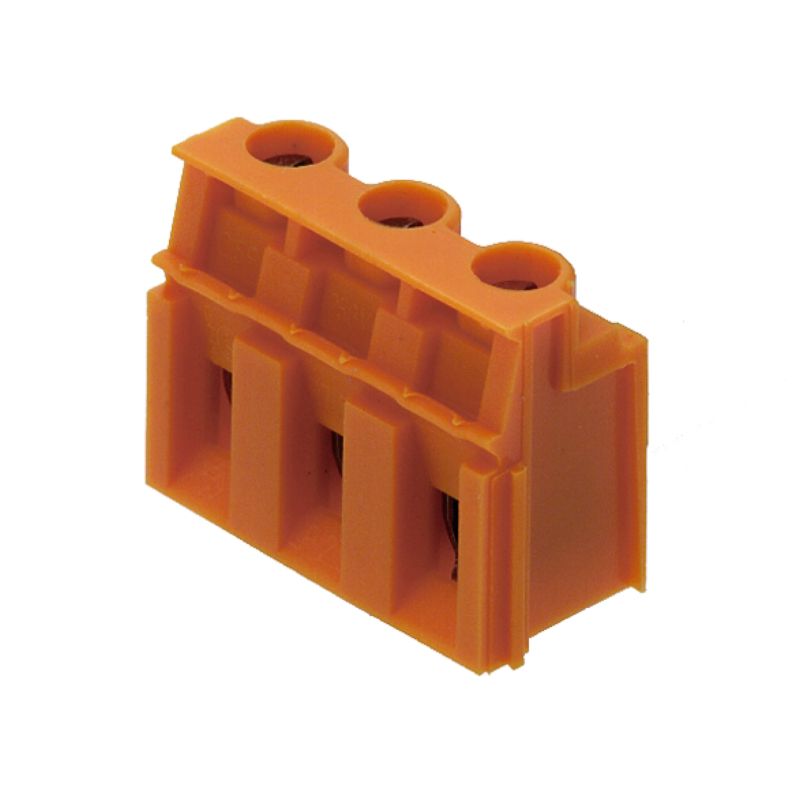

1766840000 - 7.62mm 12-Pole Terminal Board with 3.2mm Pins (Pack of 50)

1766840000 - 7.62mm 12-Pole Terminal Board with 3.2mm Pins (Pack of 50)

SKU: SKU: 1766840000   Download PDF

Select a Variant:
  • 1766840000 - 7.62mm 12-Pole Terminal Board with 3.2mm Pins (Pack of 50)
Qty:
Regular price Now $360.79   Web pricing policy
Regular price BEFORE   $0.00 Sale price Now $360.79 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information

Description:

Discover the versatility of this printed circuit board terminal, designed with a 762 mm spacing and featuring 12 poles arranged at a 90° angle The 32 mm solder pin is tin-coated for enhanced durability Its clamping yoke connection method allows for a maximum clamping capacity of 6 mm² Each terminal is securely packaged in a box and meets RoHS compliance standards, ensuring it's environmentally friendly and safe for use.

Features and Benefits:

    •Clamping yoke connection for secure electrical connection.

    •Designed for easy mounting onto PCB with THT solder connection.

    •Touch-safe protection according to DIN VDE standards.

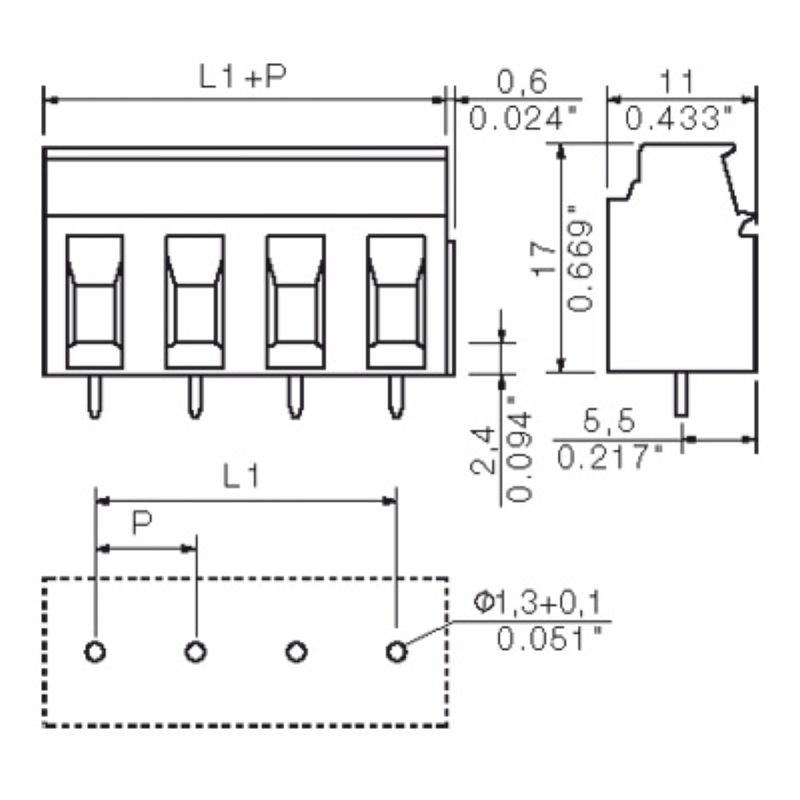

Specifications:

 Number of poles 12
 Rated voltage 1000 V / 300 V
 Rated current 32 A
 Solder pin length 3.2 mm
 Width 92.04 mm
 Height 20.2 mm
 Depth 11 mm
 Material PA
 Color orange
 Protection degree IP20
 Storage temperature, min -40 °C
 Storage temperature, max 70 °C
 Operating temperature, min -50 °C
 Operating temperature, max 100 °C
 Clamping range 0.13 mm² to 6 mm²
