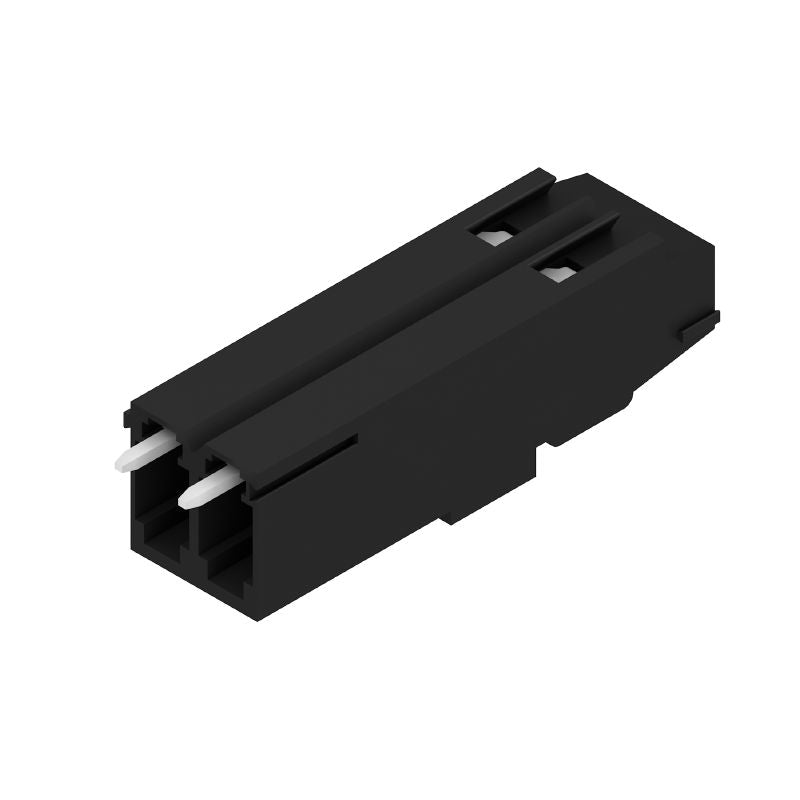

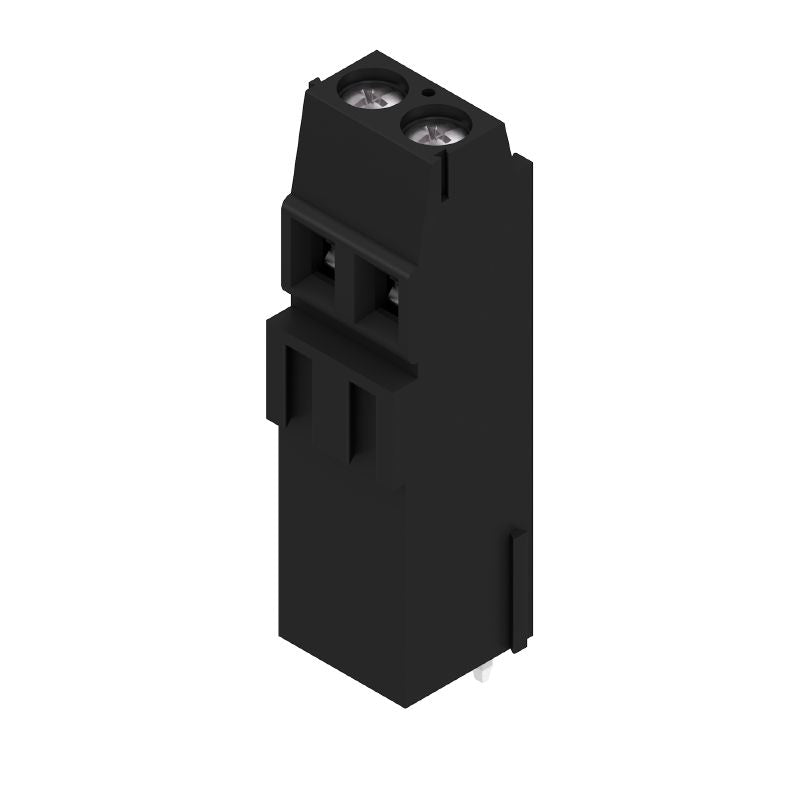

1766380000 - 3.5mm Black PCB Terminal Block, 2 Poles, 90° Angle (Pack of 100)

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Enhance your electrical connections with the LM1H printed circuit board terminal, offering a compact design that includes 2 poles orientated at a 90° angle The terminal boasts a solder pin length of 35 mm and features a black tinned coating for improved conductivity With a clamping yoke connection, it accommodates wire sizes up to 25 mm² Rest assured, this product meets RoHS standards and carries the UL certification number E60693, ensuring safety and reliability in your applications.

Features and Benefits:

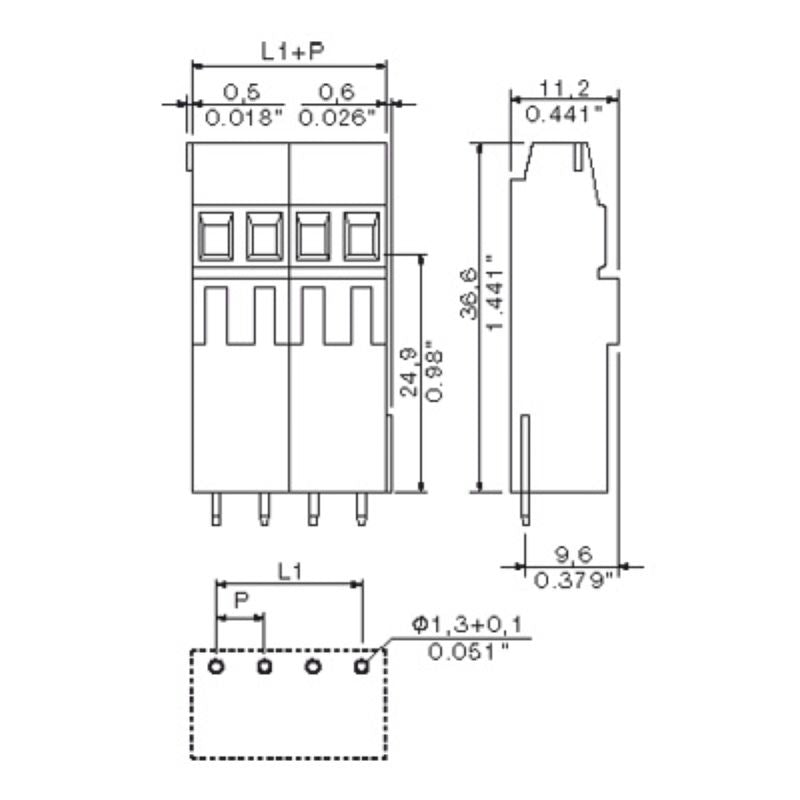

•Dimensions: 11.2 mm depth, 40.1 mm height, 11.16 mm width.

•Suitable for 0.2 to 2.5 mm² wire connections.

•Mounting method: THT solder connection.

•Touch-safe protection according to DIN VDE standards.

•Compliant without exemption to RoHS.

Specifications:
