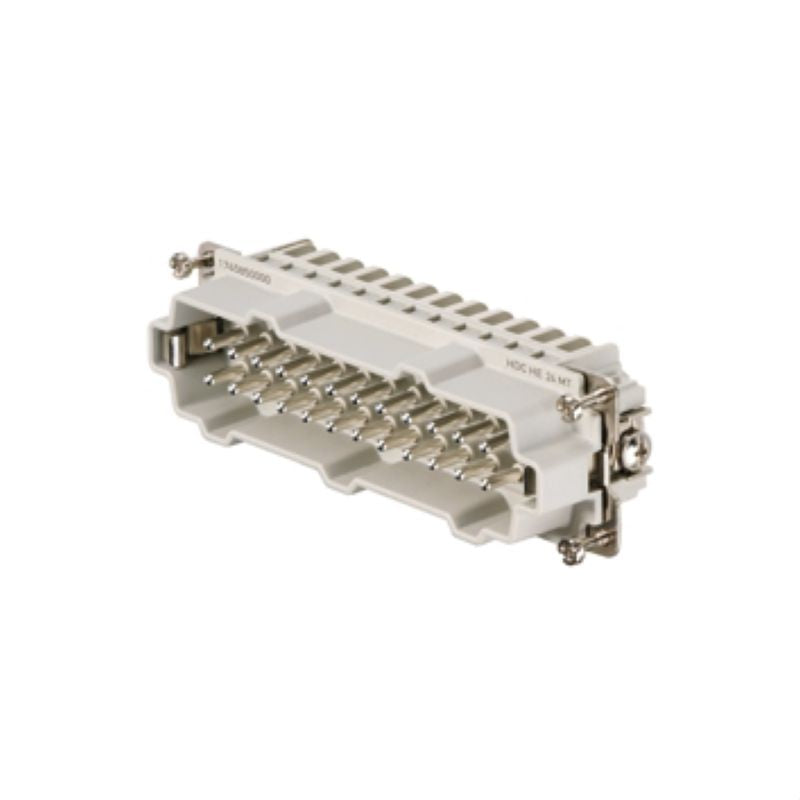

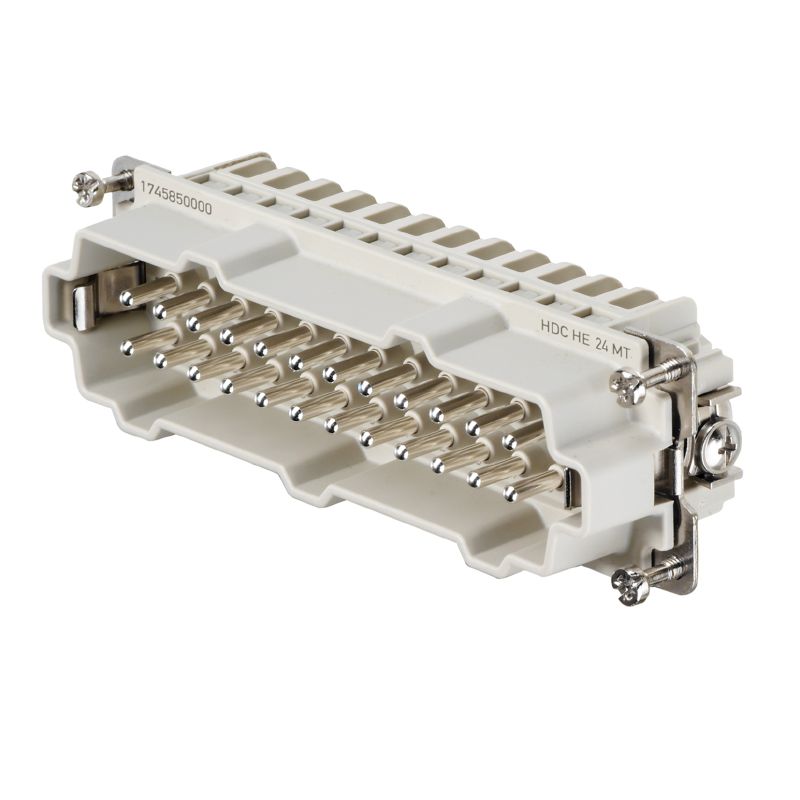

1745850000 - HDC HE 24 MT 24-Pole Connector, 500V & 16A Tension-Clamp

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Introducing the HDC HE 24 MT male connector, engineered for high performance with a maximum voltage capacity of 500 V and a rated current of 16 A Featuring a reliable tension-clamp connection, this connector is built with an installation size of 8 and comprises 24 poles, ensuring optimal connectivity Compliant with RoHS standards, it guarantees safety and environmental responsibility It is confirmed with the UL file number E92202, assuring trusted quality for your electrical needs.

Features and Benefits:

•Constructed from copper alloy.

•Insulating material made from PC glass-fiber reinforced, UL-listed and railway-certified.

•Rated for low smoke according to DIN EN 45545-2.

•Plugging cycles of at least 500.

•Volume resistance is less than or equal to 2 mΩ.

•Compliant with RoHS and REACH regulations.

Specifications:
