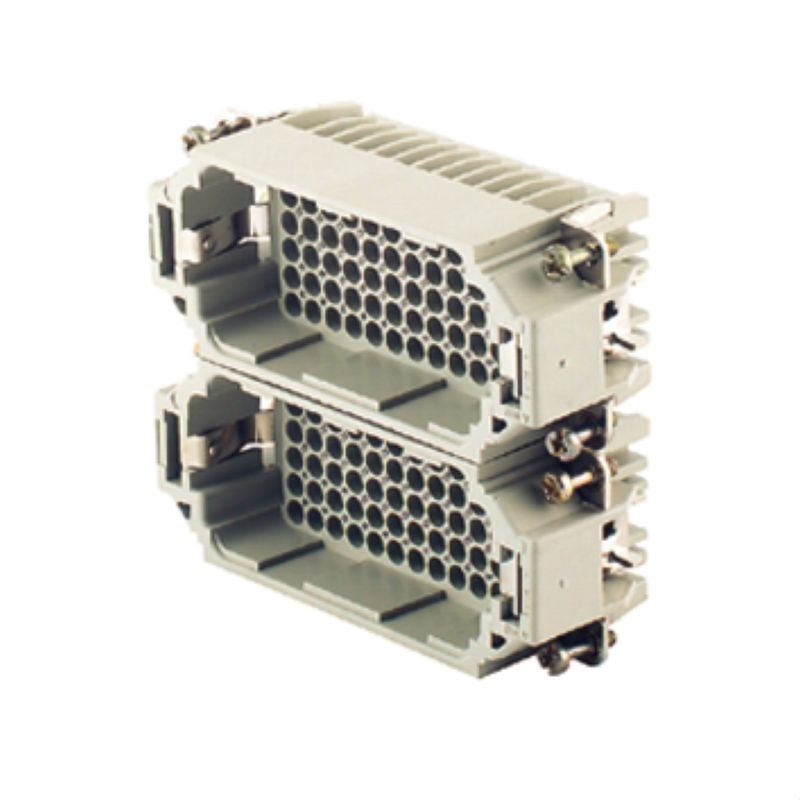

1651240000 - HDC Male Insert, 72 Poles, 84.5mm for Crimp Connections

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

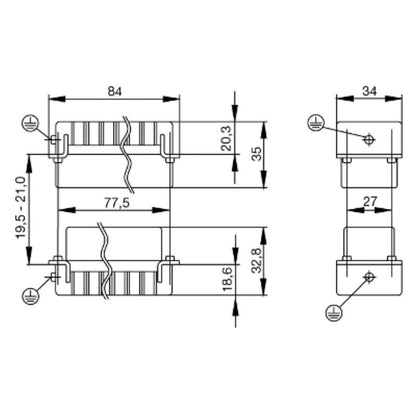

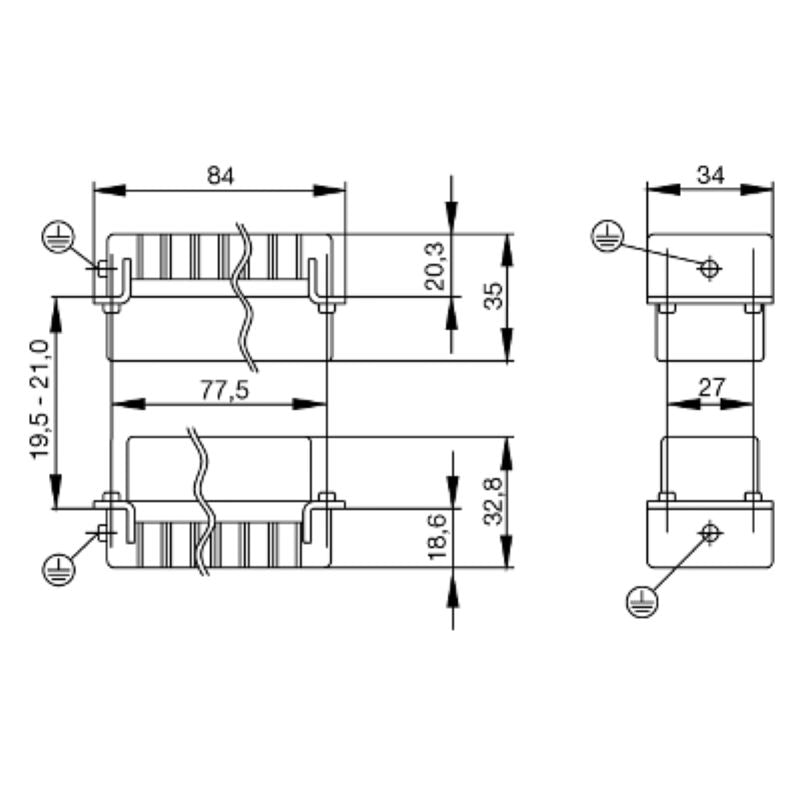

Introducing the HDC 72 MC 73-144 male insert, expertly crafted for secure crimp connections This device is rated for voltages up to 250 V and accommodates currents of 10 A With a total of 72 poles, it is designed with precision, measuring 845 mm in depth, 35 mm in height, and 34 mm in width Weighing only 56 grams, it is lightweight yet robust Compliance with RoHS directives and UL certification attest to its safety and reliability.

Constructed from durable copper alloy and enhanced with glass-fibre insulation, this insert is ideal for a wide range of high-performance applications.

Features and Benefits:

•RoHS compliant without exemption.

•Low smoke as per DIN EN 45545-2.

•Plugging cycles rated at over 500.

•Environmental Product Compliance.

•Chemical resistance to several substances including acetone and lye.

Specifications:
