1650810000 - 25-Pole Crimp Connector, Copper Alloy, -40°C to 125°C

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

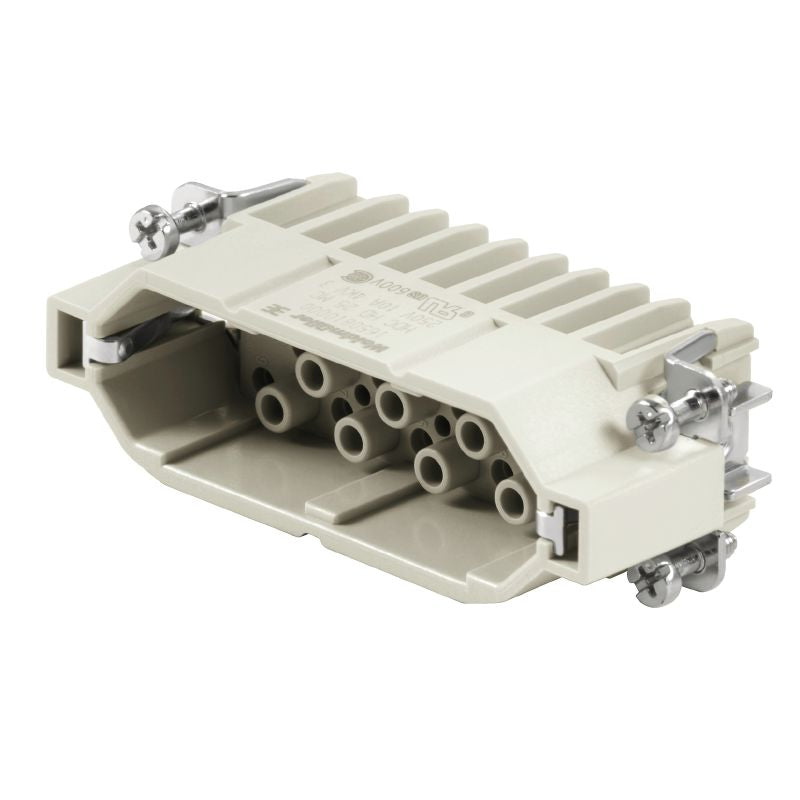

Introducing the HDC HD 25 MC male connector, engineered for reliable crimp connections With a robust design featuring 25 poles, this connector is rated for 250 V and up to 10 A, making it suitable for demanding applications Constructed from copper alloy, it withstands temperatures ranging from -40 °C to 125 °C Additionally, this product meets RoHS standards and comes with a UL certificate under file number E92202.

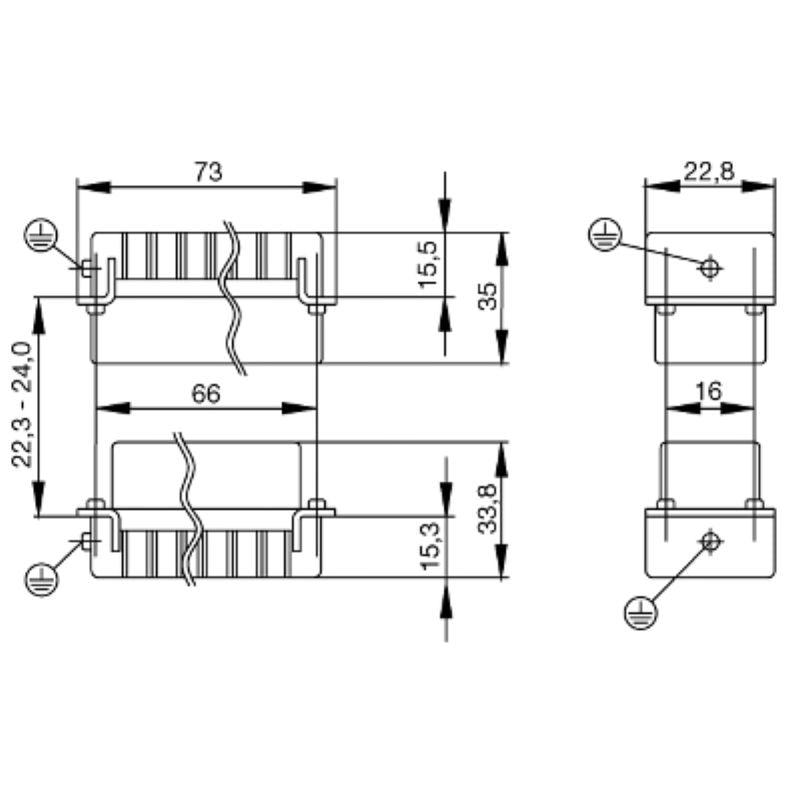

Weighing 33 g and measuring 73 mm deep, 35 mm high, and 23 mm wide, the HDC HD 25 MC is a durable choice for your connectivity needs It boasts a rated impulse voltage of 4 kV for enhanced performance.

Features and Benefits:

•RoHS compliant without exemption.

•Low smoke according to DIN EN 45545-2.

•Plugging cycles rated at ≥ 500 for both gold and silver contacts.

•Environmental Product Compliance with REACH and SCIP.

•Chemical resistance: resistant to acetone, petrol, and concentrated acetic acid.

Specifications:
