1650590000 - 8-Pole Crimp Connector, 34mm Copper Alloy, 50V 10A

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

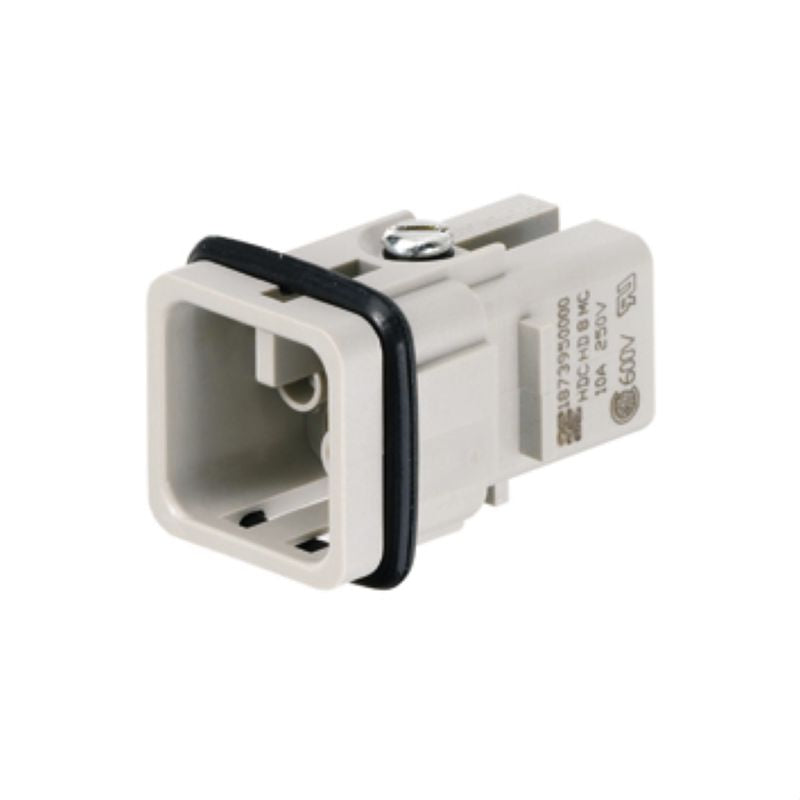

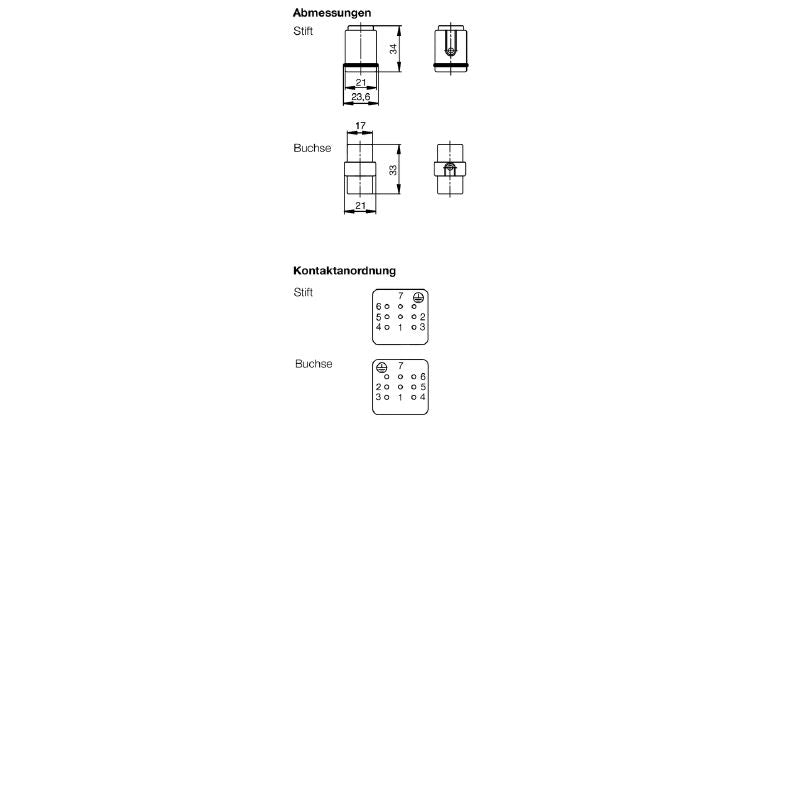

Introducing the HDC HD 8 MC connector, specifically designed for male connections and equipped with a reliable crimp connection This versatile connector can handle operations up to 50 V and 10 A Comprising eight poles and constructed from a durable copper alloy, its compact dimensions measure 34 mm in height, 21 mm in width, and 21 mm in depth, while its lightweight design ensures it weighs just 88 grams.

With an operational temperature range of -40 °C to 125 °C, this connector meets RoHS standards with specific exemptions, making it a dependable choice for a variety of applications.

Features and Benefits:

•RoHS compliant with exemptions.

•Chemical resistance to various substances including acetone and petrol.

•Low smoke emissions according to DIN EN 45545-2 regulations.

•Achieves a high plugging cycle rating with a minimum of 500 for both gold and silver contacts.

Specifications:
